The 74HC164D is a powerful Serial-In Parallel-Out (SIPO) shift register, offering versatility in digital circuit design. In this article, we will explore the various applications and advantages of using the 74HC164D in modern electronics. Whether you're a beginner or a seasoned engineer, understanding how this component can enhance your designs is key to mastering digital logic.
The Fundamentals and Key Features of the 74HC164D
In modern digital electronics, managing data efficiently between components is crucial for system performance. One device that has proven its utility in this regard is the 74HC164D, a popular Serial-In Parallel-Out (SIPO) shift register. This article will delve into the core functionality of the 74HC164D, highlight its key features, and demonstrate how it fits into a wide array of digital applications.
What Is a Shift Register?
At its core, a shift register is a digital circuit that stores and manipulates data bit by bit. It functions by shifting the data through a series of registers, each holding one bit. A shift register can either move data in a parallel or serial fashion, making it a versatile tool in digital design. There are two primary types of shift registers: Serial-In Parallel-Out (SIPO) and Parallel-In Serial-Out (PISO). The 74HC164D is a SIPO shift register, meaning that data is input serially and output in parallel.
The shift register operates in a Clock ed manner. When the clock signal is applied, the data bits shift one position to the left, allowing a new bit to enter at the rightmost position. The parallel output allows the user to access each individual bit after it has been shifted in.
Overview of the 74HC164D

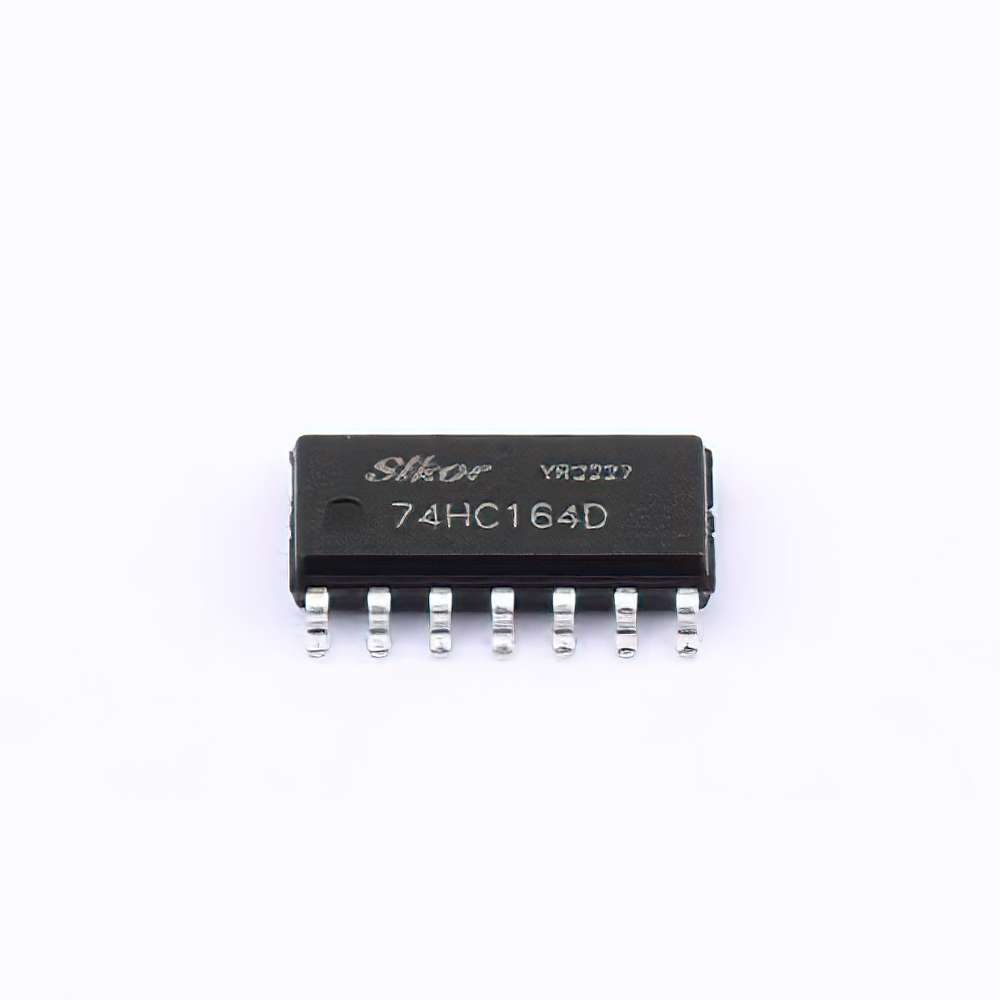

The 74HC164D is an integrated circuit (IC) that houses an 8-bit serial-in, parallel-out shift register. It features two main operations: receiving data serially through the serial input pin (DS) and outputting data in parallel through eight individual output pins (Q0-Q7). A clock signal (CP) is used to control the shifting process, and the IC also includes a clear (CLR) pin to reset all outputs to low (0) when needed.
One of the distinguishing features of the 74HC164D is its speed and efficiency. Operating at high speeds with low power consumption, this IC is an excellent choice for a variety of digital applications. It can handle high-frequency clock signals, making it suitable for use in advanced electronics that require rapid data shifting, such as microcontroller interfacing, LED displays, and signal processing systems.
Pin Configuration of the 74HC164D
To understand how to use the 74HC164D in your designs, it’s essential to be familiar with its pinout. Here’s a quick overview of the key pins:
Vcc (Pin 16): The power supply pin, usually connected to the positive voltage source (typically 5V).
GND (Pin 8): The ground pin, which connects to the negative side of the power supply.
Clock (Pin 11): This pin is responsible for triggering the shift register. A clock pulse on this pin causes the data to shift.
Serial Data Input (Pin 14): Data is serially input to this pin, which shifts into the register on each clock pulse.
Clear (Pin 1): This pin resets all outputs to a low state when activated.
Outputs (Pins 2-7 and 9-10): These are the parallel outputs, where each bit of the data is presented.
These basic components give the 74HC164D its functionality and enable designers to incorporate it into various digital systems.
Why Use the 74HC164D?
The 74HC164D offers several advantages for circuit designers, particularly in terms of flexibility, simplicity, and speed. Let’s take a closer look at the reasons why this component is widely used in digital systems:
Efficient Data Handling: Shift registers like the 74HC164D enable efficient handling of data streams, especially when working with devices like Microcontrollers that have limited I/O pins. By converting serial input into parallel output, you can maximize the number of devices that can be control LED with fewer pins.
Simplicity: The 74HC164D is easy to use in both simple and complex applications. It requires minimal external components, which simplifies the design process. Furthermore, the logic of the shift register makes it ideal for creating timing and data flow control circuits.
Speed: The 74HC164D operates at high speeds, allowing it to shift data quickly and handle faster clock pulses. This makes it ideal for use in applications where rapid data movement is necessary.
Scalability: The parallel output of the 74HC164D allows it to easily scale with more registers connected in series. Designers can create larger shift register systems by daisy-chaining multiple 74HC164Ds, providing greater flexibility and scalability in handling large data streams.
The Role of Clock Signals in the 74HC164D
The clock signal plays a pivotal role in the operation of the 74HC164D. Each time the clock signal is triggered, the data stored in the shift register is shifted one position to the left, and new data enters the register. The clock timing is essential to the proper functioning of the circuit, as it ensures that the data is shifted and processed correctly.
In digital designs, clock signals often come from a variety of sources, such as microcontrollers, oscillators, or other timing circuits. The 74HC164D is capable of accepting clock signals from these sources, making it highly versatile in different applications.
Applications of the 74HC164D in Digital Circuits
Having established the basic functionality and key features of the 74HC164D, it’s time to explore its practical applications in the world of digital circuits. The versatility of the 74HC164D makes it an invaluable component in a wide range of electronic systems, from simple hobbyist projects to sophisticated industrial applications.
1. Microcontroller Interfacing
One of the most common uses of the 74HC164D is interfacing with microcontrollers. Microcontrollers typically have a limited number of I/O pins, which can restrict the number of peripherals that can be controlled. By using shift registers like the 74HC164D, microcontrollers can control multiple devices using only a few pins. This is especially useful in situations where you need to control a large number of LEDs or other output devices.
For example, consider a microcontroller that needs to control an array of 8 LEDs. Instead of wiring each LED directly to a separate pin, you can use a single 74HC164D shift register. The microcontroller sends data serially to the shift register, which then outputs the corresponding parallel data to the LEDs. This reduces the number of I/O pins required, freeing them up for other tasks.
2. LED Displays
Shift registers like the 74HC164D are also widely used in driving LED displays. In a typical application, a microcontroller sends data serially to the shift register, which then drives the LEDs to display various patterns or messages. This technique is especially useful for controlling large, multi-digit LED displays, such as those used in clocks, meters, and scoreboards.
For instance, if you need to drive a 7-segment display, you can use a 74HC164D to control each segment’s on/off state. The microcontroller sends the binary data to the shift register, and each segment of the display is activated or deactivated based on the output of the shift register.
3. Data Communication Systems
The 74HC164D can also be employed in data communication systems, especially when you need to convert data from serial to parallel form for transmission or processing. Many communication protocols use serial data transmission, such as SPI or I2C, but the receiving device might require data in parallel form for efficient processing. The 74HC164D acts as an intermediary, converting serial data into parallel output that can be used by the receiving system.
In this context, the 74HC164D helps to ensure smooth communication between systems with different data formats, making it an essential component in many communication systems.
4. Signal Processing
Shift registers like the 74HC164D are also used in signal processing circuits. For example, in digital filters or delay circuits, the 74HC164D can be used to store and shift data as it passes through the system. This allows for the implementation of complex signal processing algorithms, such as filtering and data manipulation, without the need for large numbers of parallel connections.
By shifting and storing data over time, the 74HC164D enables the construction of systems that can process signals in real-time, which is essential for applications like audio processing, image processing, and video signal manipulation.
5. Serial-to-Parallel Conversion
One of the most straightforward applications of the 74HC164D is its ability to convert serial data into parallel output. This is particularly useful in situations where a device or system is only capable of handling serial data input, but the downstream process requires parallel data. The 74HC164D provides an efficient way to bridge this gap.
For instance, in some memory systems, data may be read out serially but needs to be processed or stored in parallel. Using the 74HC164D, the serial data can be shifted and converted into parallel form, allowing the memory to be accessed efficiently.
6. Automated Testing Systems
In automated testing systems, where multiple test channels or sensors need to be monitored or controlled, the 74HC164D can be used to expand the number of control lines. By using shift registers, you can control a large number of test points with a limited number of control signals. This is particularly useful in scenarios such as PCB testing, where you may need to sequentially test a large number of connections or circuits.
Conclusion
The 74HC164D is a versatile and efficient component that finds application in a wide range of digital circuit designs. Its ability to handle serial-to-parallel conversion, interface with microcontrollers, drive LEDs, and facilitate data communication makes it an indispensable tool in the electronics world. Whether you are designing a simple LED display or a complex communication system, the 74HC164D offers a straightforward and reliable solution for data shifting and manipulation in digital circuits.
Understanding its features, benefits, and applications will help you unlock the full potential of this shift register in your own projects and designs, bringing your digital circuits to life with precision and ease.
