Introduction to the ADXRS453BRGZ Gyroscope

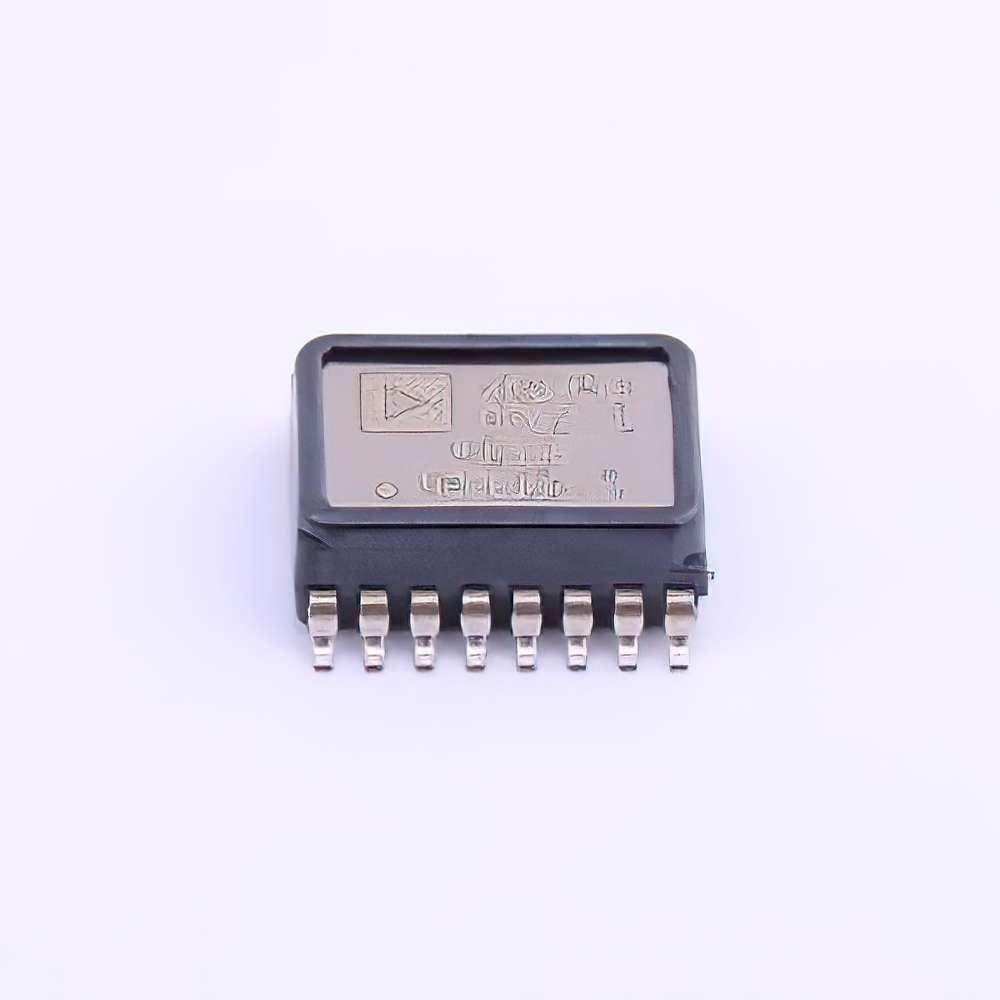

The ADXRS453BRGZ is a high-performance, digital-output gyroscope designed to measure angular velocity. It’s widely used in applications requiring precise motion detection, such as robotics, automotive systems, and consumer electronics. The Sensor is known for its accuracy, low noise, and compact design, but like any advanced sensor, it can experience issues if not properly integrated or maintained.
In this article, we will address the most common problems you might encounter when working with the ADXRS453BRGZ and provide actionable solutions to ensure smooth operation.
1. Signal Noise and Interference
One of the most frequently reported issues when using the ADXRS453BRGZ gyroscope is excessive signal noise or interference. Signal noise can manifest as random fluctuations or irregularities in the sensor output, leading to inaccurate measurements.
Causes:
Power Supply Issues: Fluctuations in the power supply can introduce noise into the signal.
Environmental Interference: Proximity to electromagnetic interference ( EMI ) sources, such as motors, power lines, or wireless devices, can affect sensor performance.
Improper Grounding: A poor or floating ground connection can contribute to noise.
Solutions:
Ensure Stable Power Supply: Use a regulated power supply with low ripple and noise. Capacitors (typically 0.1 µF or 10 µF) near the gyroscope’s power pins can help smooth out fluctuations.
Shielding and Grounding: Proper grounding and the use of shielded cables can minimize EMI. Ensure that the sensor is grounded properly, and use an external shield or a ferrite bead around sensitive lines to block external interference.
Low-Pass Filtering: Implement a low-pass filter on the output signal to remove high-frequency noise and prevent it from contaminating the data. Typically, a simple RC filter can be enough to filter out unwanted noise components.
2. Calibration Errors
Another common problem with the ADXRS453BRGZ is related to calibration. Calibration errors can lead to inaccurate measurements, often manifesting as consistent drift or incorrect zero-velocity outputs.
Causes:
Incorrect Initial Zeroing: If the sensor isn’t properly initialized at a known reference point, the output might show false readings.
Temperature Fluctuations: Changes in temperature can affect the performance of the gyroscope, leading to calibration drift over time.
Solutions:
Proper Initialization: Always ensure that the gyroscope is calibrated in a known, stable environment. The sensor’s zero point should be defined when the device is stationary, and its outputs should be set to zero at that time.
Temperature Compensation: The ADXRS453BRGZ features built-in temperature compensation, but it may need additional calibration for more accurate readings in environments with significant temperature variations. Consider performing periodic calibration cycles to maintain accuracy.
Software-Based Calibration: Implement software algorithms that adjust the sensor’s readings over time based on historical data to minimize drift and improve long-term accuracy.
3. Over-Temperature Operation
The ADXRS453BRGZ is rated for operation within a certain temperature range, typically between -40°C and 125°C. However, exposure to temperatures beyond this range can lead to incorrect readings or even permanent damage.
Causes:
Excessive Heat: If the gyroscope is placed in an environment where the temperature exceeds the sensor’s specified limits, the internal components may begin to degrade.
Inadequate Heat Dissipation: Without proper heat dissipation measures, the sensor may overheat during prolonged operation.
Solutions:
Temperature Monitoring: Use external temperature sensors to monitor the environment where the ADXRS453BRGZ is placed. If operating near the extreme ends of the temperature range, consider implementing cooling measures such as heatsinks or fans.
Thermal Management : Ensure the sensor is mounted in a location where heat buildup is minimized. In high-temperature environments, consider using sensors with a higher temperature rating or more advanced thermal management systems.
4. Mechanical Vibrations
Mechanical vibrations can disrupt the readings of the ADXRS453BRGZ gyroscope, especially in sensitive applications such as drones or automotive systems. The sensor can pick up unwanted vibrations, resulting in erroneous data and reduced accuracy.
Causes:
High-Intensity Vibrations: Vibrations from nearby motors or other high-intensity mechanical systems can affect the gyroscope’s ability to measure angular velocity accurately.
Improper Mounting: The sensor might be mounted improperly, causing it to pick up external vibrations that affect its performance.
Solutions:
Vibration Damping: Use vibration-damping materials, such as rubber mounts or gel pads, to isolate the sensor from external vibrations. This will help reduce the mechanical noise transferred to the sensor.
Sensor Orientation: Ensure that the gyroscope is oriented properly to minimize the impact of external forces. If possible, place the sensor away from high-vibration sources.
Mechanical Isolation: Mount the sensor on a stable, vibration-resistant surface to avoid interference from external mechanical vibrations.
5. Power Consumption Issues
High power consumption can be a concern when using the ADXRS453BRGZ, particularly in battery-powered applications. Excessive power draw can quickly deplete batteries, leading to shorter operational lifespans and the potential for system failures.
Causes:
High Supply Voltage: Running the sensor at higher voltages than necessary can increase power consumption.
Improper Operating Mode: The gyroscope may be running in a mode that consumes more power than necessary for the application at hand.
Solutions:
Optimize Voltage Supply: The ADXRS453BRGZ operates on a supply voltage between 3.0V and 3.6V. Ensure the supply voltage is within this range to avoid excessive power consumption.
Use Low Power Mode: The sensor includes a low-power mode that can be activated during periods of inactivity. This will reduce power consumption when the sensor does not need to actively measure angular velocity.
6. Communication Problems
Communication errors between the ADXRS453BRGZ and a microcontroller or processing unit are another common issue. If the sensor is not sending or receiving data properly, it can lead to system failures and inaccurate readings.
Causes:
Improper Wiring: Incorrect connections, such as miswiring or floating pins, can prevent successful communication between the sensor and the microcontroller.
Timing Issues: If the data transfer rate or clock synchronization is not correctly set, the sensor may fail to communicate with the host device.
Solutions:
Check Connections: Double-check the wiring between the gyroscope and the microcontroller to ensure that all connections are secure and correctly configured. Pay close attention to the SCL, SDA, VCC, and GND pins.
Adjust Timing Settings: Review the communication protocol settings (typically I2C or SPI) to ensure the clock rate and timing parameters are correctly configured for your specific application.
Use Robust Protocols: Consider implementing a robust communication protocol that includes error-checking and retransmission in case of communication failures.
7. Sensor Aging and Drift
Over time, like any electronic component, the ADXRS453BRGZ may experience drift or aging effects, where the sensor's performance gradually degrades. This can result in a slight decrease in measurement accuracy, particularly in long-term applications.
Causes:
Component Degradation: The sensor’s internal components, such as the MEMS structure, may degrade over time, leading to performance loss.
External Stress: Continuous exposure to high temperatures, humidity, or mechanical stresses can accelerate the aging process.
Solutions:
Regular Calibration: To account for drift over time, schedule regular recalibration of the sensor. This will help ensure that the readings remain accurate throughout the sensor’s lifecycle.
Environmental Protection: Protect the sensor from extreme environmental conditions to prolong its operational lifespan. Using protective housings or coatings can help mitigate the effects of moisture, dust, or physical stress.
Conclusion
The ADXRS453BRGZ gyroscope is an excellent choice for many precision motion-sensing applications. However, like any high-precision sensor, it requires proper handling and maintenance to avoid common issues such as signal noise, calibration errors, and mechanical vibrations. By following the troubleshooting tips and solutions outlined in this guide, you can ensure that your sensor operates reliably, providing accurate measurements for your application. Whether you’re developing a complex robotic system or a consumer-grade device, these strategies will help maintain the performance and longevity of your ADXRS453BRGZ gyroscope.
