The Role of 74HC573 Latches in Data Acquisition Systems
In the modern world of electronics, managing the flow of data is more critical than ever. With ever-increasing demands for high-speed processing and accurate data transmission, effective methods of data storage, synchronization, and transfer are paramount. The 74HC573 latch, a high-speed octal transparent latch, plays a vital role in various data acquisition and transmission systems. This article delves into the functions, importance, and applications of the 74HC573 latch in these systems.

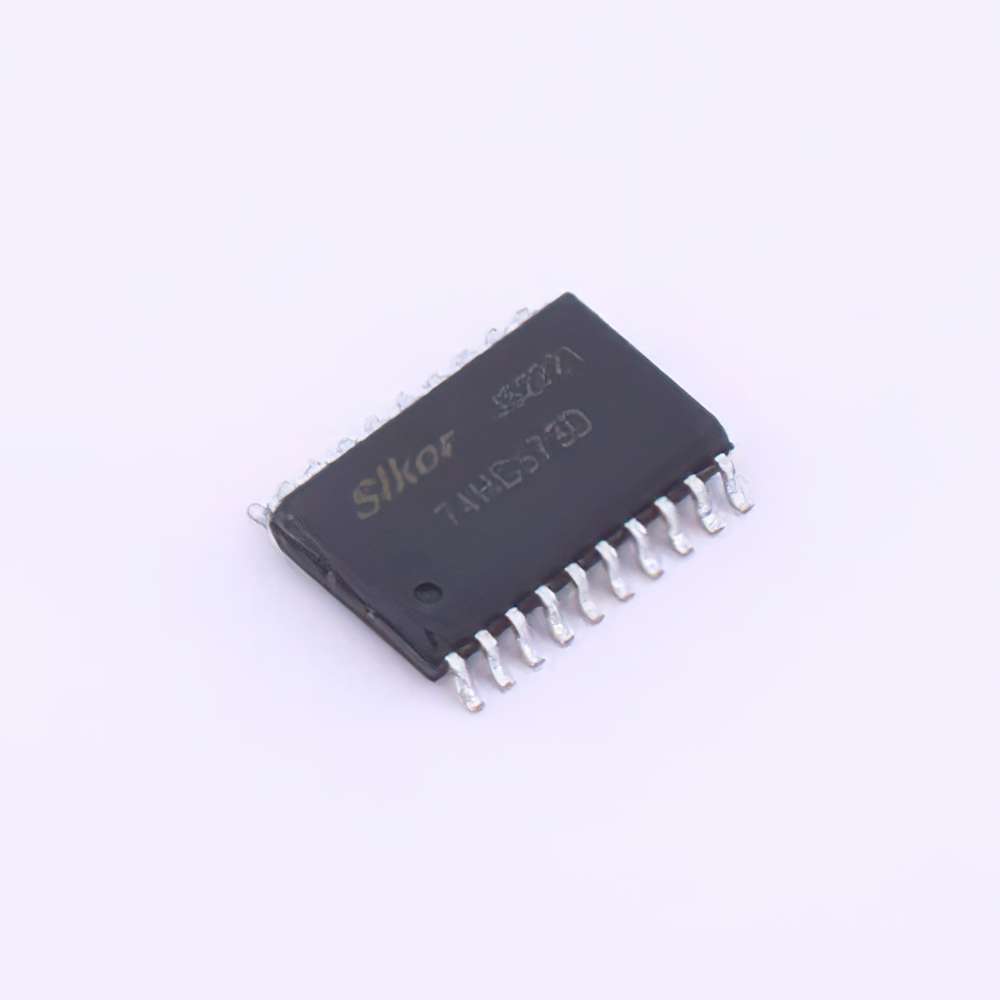

What is the 74HC573 Latch?
The 74HC573 is an octal latch with transparent data storage. When the latch is enabled, it continuously outputs the data present at its input. However, when the enable pin is deactivated, the latch “latches” the input data, storing it at the output until the next enabling signal. This behavior is highly useful in systems where there is a need to temporarily store data before further processing or transmission.
The 74HC573 typically operates with 5V logic levels and is used in conjunction with other components in high-speed circuits. It is designed with eight individual latches, each controlling one bit of data, making it ideal for systems that need to handle parallel data streams.
Data Acquisition in Electronics:
In data acquisition systems, signals from various Sensors or analog-to-digital converters (ADCs) are often collected, converted, and stored for further processing. These systems require efficient and reliable methods to capture, hold, and process incoming data without loss of information. The 74HC573 latch can provide a convenient means to hold these signals for processing at a later time.
For example, in a system where multiple Sensor s are providing data at different intervals, the 74HC573 latch can be used to capture data from each sensor at precisely the right time. This captured data can then be processed in parallel, improving the speed of data acquisition and ensuring that no data is missed.
Key Applications of 74HC573 in Data Acquisition:
Sensor Data Holding:
A common use case for the 74HC573 latch in data acquisition is in systems that collect data from multiple sensors. Sensors such as temperature, pressure, and motion sensors often generate data asynchronously. By using the 74HC573 latch, the data from all sensors can be captured at a precise moment, held until it is ready for further processing, and then transferred to a microcontroller or data logger.
Buffering and Parallel Data Transfer:
In many high-speed data acquisition systems, it is essential to transfer large amounts of data simultaneously. Using the 74HC573 latch as a buffer allows the system to capture data across multiple channels at once. With the latch’s ability to hold the data until the system is ready to process it, the 74HC573 can help ensure that the data from all channels is processed together, minimizing timing mismatches.
Signal Synchronization:
Synchronizing signals from different sources is a crucial aspect of data acquisition. The 74HC573 latch can serve to hold the data from multiple sources at the same time, preventing the timing discrepancies that could otherwise result from sampling data at different intervals.
Advantages of Using 74HC573 in Data Acquisition Systems:
High-Speed Performance: The 74HC573 is capable of handling high-speed data, which is crucial for real-time data acquisition systems that require fast and accurate data capture.
Reliability: The latch ensures that data is reliably captured and stored without being lost or corrupted, which is critical in applications where accuracy is paramount.
Cost-Effective: Compared to more complex data storage solutions, the 74HC573 provides an affordable and efficient way to manage multiple data channels simultaneously.
74HC573 Latches in Data Transmission and Communication Systems
The 74HC573 latch is not only essential in data acquisition but also plays a key role in enhancing data transmission and communication systems. Its ability to temporarily store data and synchronize multiple signals enables seamless data flow across various digital systems, making it indispensable in communication and transmission applications. Let’s explore some of the key areas where the 74HC573 latch is used in data transmission.
Data Transmission in Digital Systems
In digital communication, the efficient and reliable transmission of data is vital for achieving high-performance systems. Data transmission often occurs in parallel, where multiple bits of data are transferred simultaneously. To manage this flow of data, latches like the 74HC573 are used to hold data temporarily before it is transmitted to other components of the system.
For example, in parallel communication systems, where multiple bits are transmitted simultaneously, each bit can be held by a separate latch. By using the 74HC573 latch, data can be stored and then shifted out to the next stage in the transmission process when needed. This ensures that no data is lost or transmitted out of order, which is essential for maintaining data integrity.
Key Applications of 74HC573 in Data Transmission:
Parallel Data Storage:
One of the primary functions of the 74HC573 latch in data transmission is its ability to store data in parallel. This is particularly useful in high-speed data transfer systems where multiple bits of data need to be transferred simultaneously. For example, in bus systems that transmit data in parallel, the 74HC573 latch can hold the data from the CPU before it is transferred to memory or other devices. By holding the data in the latch until it is ready for transmission, the 74HC573 ensures smooth, synchronized data flow across the system.
Multiplexing and Demultiplexing:
In many communication systems, the use of multiplexing and demultiplexing techniques is necessary to manage multiple data channels. The 74HC573 latch is often used in such systems to temporarily hold data from one channel while it is being routed to another. By using latches in this manner, systems can efficiently switch between multiple channels, ensuring that data is transmitted at the correct time.
Signal Timing and Synchronization:
In data transmission systems, timing and synchronization are critical for ensuring that signals are sent and received in the correct sequence. The 74HC573 latch plays an important role in maintaining this synchronization. It holds data until the appropriate timing signal is received, preventing errors that could arise from data being transmitted too early or too late.
Shift Registers :
Shift registers are commonly used in digital communication to move data from one location to another. The 74HC573 latch, when used in combination with other shift registers, can store data temporarily as it is shifted through the system. This is particularly useful in systems that need to convert parallel data into serial data for transmission over communication lines, and then convert it back to parallel format at the receiving end.
Advantages of Using 74HC573 in Data Transmission:
Improved Data Flow: The 74HC573 helps maintain continuous and efficient data flow by allowing temporary storage of data, which can be shifted or transmitted at the correct time.
Reduced Latency: By holding data at the output until the transmission is ready, the 74HC573 reduces the risk of data collisions and minimizes delays in communication.
Higher Throughput: In systems that require high throughput, the 74HC573’s ability to store and transfer multiple bits simultaneously allows for faster data rates, supporting the demands of high-performance communication systems.
Example: Data Transmission in Communication Protocols
Consider a system that uses a communication protocol such as I2C or SPI. In these protocols, data is transmitted between multiple devices over a shared bus. The 74HC573 latch can be used to hold data temporarily before it is sent across the bus. This allows the transmitting device to manage the timing of the data being sent, ensuring that each bit is transmitted correctly and in the right order.
In addition, the 74HC573 can be used to buffer data at the receiving end, ensuring that all the data from the bus is received without errors and is ready for further processing.
Conclusion
The 74HC573 latch plays a crucial role in both data acquisition and data transmission systems, offering reliable, high-speed storage, synchronization, and transfer of parallel data. Its applications span across a wide variety of digital systems, including sensor data collection, multiplexing, signal synchronization, and high-speed data communication. As data flows become increasingly complex and data rates continue to rise, the importance of components like the 74HC573 latch in ensuring seamless, error-free data handling cannot be overstated. Whether in simple embedded systems or advanced communication protocols, the 74HC573 latch remains a cornerstone of modern data management in electronic systems.
