The BC807-40 transistor is widely used in low- Power amplifier circuits due to its robust pe RF ormance and versatility. This article explores its applications in Audio amplification, RF circuits, and sensor interface s, along with common debugging tips for designers to optimize circuit performance.
Understanding the BC807-40 Transistor in Low-Power Amplifier Circuits

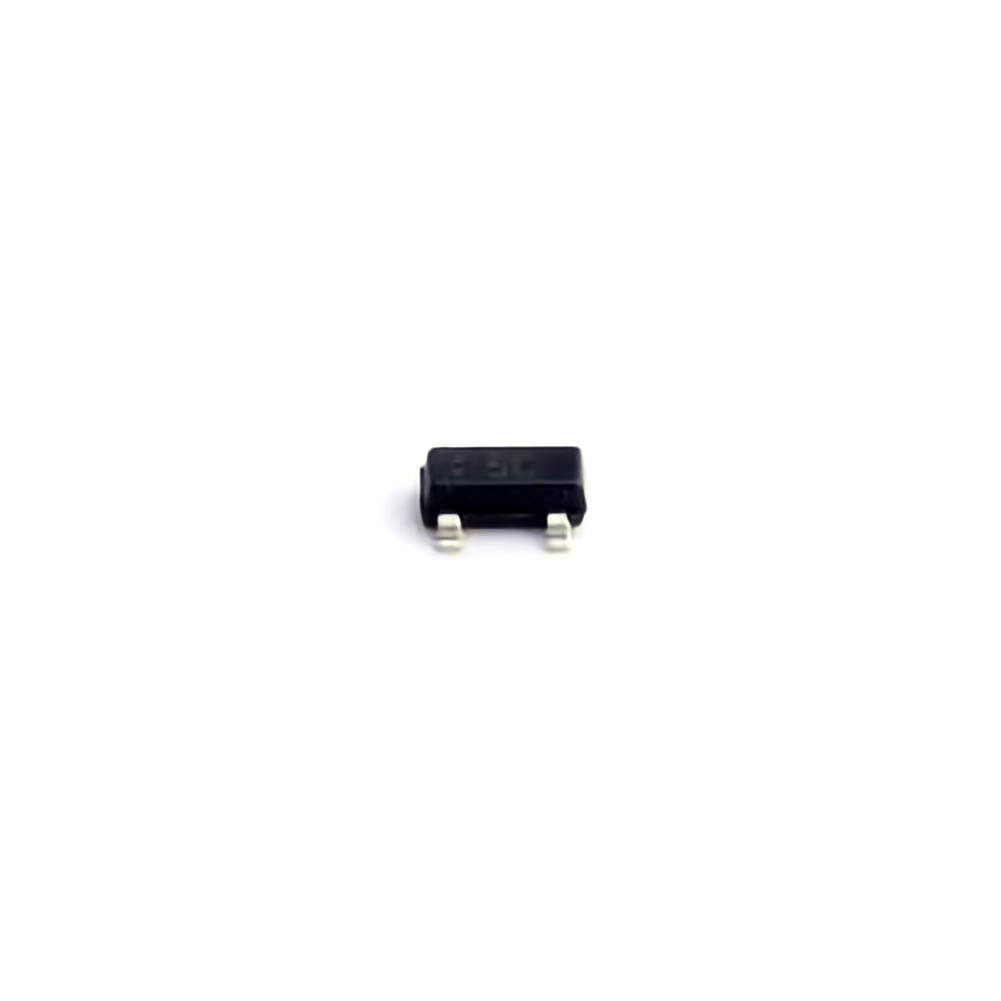

The BC807-40 is a small signal PNP transistor, primarily designed for low-power amplification and switching applications. With a maximum collector current of 500mA and a maximum collector-emitter voltage of 45V, it is an ideal choice for various low-power amplifier circuits, especially where efficient power usage is paramount. In this article, we will delve into the transistor’s role in amplifier designs and examine its applications across different sectors.
1.1 Key Features of the BC807-40
Before diving into its specific applications, it's essential to understand why the BC807-40 is an ideal choice for low-power amplifier circuits. Here are some of its standout features:
Maximum Voltage Rating: 45V (collector-emitter voltage), which allows the transistor to handle moderate voltage levels efficiently.
Maximum Current Rating: 500mA, ensuring it can drive moderate loads without excessive power dissipation.
Low Power Consumption: As a low-power transistor, the BC807-40 is ideal for battery-operated devices where energy efficiency is critical.
High Gain: It boasts a current gain (hFE) of 200 to 800, making it a reliable amplifier in various low-power applications.
Compact Design: The transistor comes in a TO-92 package, making it suitable for small and compact electronic designs.
With these features in mind, the BC807-40 can be employed effectively in a variety of amplifier circuits, such as audio pre- Amplifiers , RF Amplifiers , and sensor signal conditioning circuits.
1.2 Applications of BC807-40 in Low-Power Amplifier Circuits
1.2.1 Audio Amplifiers
In the field of audio electronics, the BC807-40 is commonly used in pre-amplifier circuits. A pre-amplifier’s job is to take weak audio signals, such as those from microphones or guitar pickups, and amplify them to a level that can drive further processing stages or power amplifiers.
The BC807-40’s ability to handle small signal amplification while maintaining low power consumption makes it an excellent choice for this application. Whether used in battery-operated audio devices or portable audio systems, this transistor can help ensure long operational hours without draining the power source.
1.2.2 RF Amplifiers
The BC807-40 is also suitable for RF amplifier circuits where minimal signal distortion and efficient power usage are essential. RF amplifiers are used in communication devices, such as radios, walkie-talkies, and wireless transmitters, to amplify signals over various frequencies. Due to its high gain and low power consumption, the BC807-40 is a good candidate for such applications, particularly in low-power radio frequency (RF) circuits.
In these circuits, the transistor amplifies weak RF signals, ensuring they are strong enough for transmission over a distance. The BC807-40 can be part of both the transmitter and receiver circuits in RF communication devices.
1.2.3 Signal Conditioning in Sensors
Many sensor applications, especially in IoT (Internet of Things) devices, require signal conditioning circuits to filter, amplify, and process sensor output signals. Since sensor signals are typically weak and low-voltage, the BC807-40 is used to amplify these signals to usable levels. Whether the sensor is monitoring temperature, humidity, or pressure, the BC807-40 can ensure the sensor’s output reaches a level that is readable by a microcontroller or another processing unit.
1.2.4 Voltage Regulators
Though not a traditional amplifier application, the BC807-40 can also play a role in voltage regulation circuits. In some designs, it is used in low-power voltage regulator circuits to stabilize voltage levels, particularly in battery-powered devices. As an efficient amplifier, it can be integrated into designs where precise voltage control is required while maintaining minimal power consumption.
1.3 Benefits of Using BC807-40 in Low-Power Amplifiers
There are several reasons why engineers prefer the BC807-40 in their low-power amplifier designs:
Energy Efficiency: One of the main advantages is its low power consumption, which extends battery life in portable devices.
Compact Design: The TO-92 package size allows for integration into compact electronic devices, making it suitable for portable or space-constrained applications.
Versatility: It can be used in a range of amplifier configurations, from audio to RF to sensor circuits.
Cost-Effective: The BC807-40 is an affordable solution, making it an attractive option for cost-sensitive applications.
However, to ensure the BC807-40 operates as expected, proper design practices must be followed. It’s essential to keep in mind the transistor's limitations and design the surrounding circuitry to ensure stable operation.
Debugging and Optimizing BC807-40 in Low-Power Amplifier Circuits
While the BC807-40 is a reliable and efficient choice for low-power amplifier circuits, like any component, it requires careful implementation and troubleshooting to ensure optimal performance. In this section, we will explore common debugging tips and optimization techniques for using the BC807-40 in low-power amplifier designs.
2.1 Common Problems and Their Solutions
2.1.1 Oscillations and Unwanted Feedback
One of the most common issues when designing with transistors like the BC807-40 is unwanted oscillations or feedback. These oscillations can arise due to parasitic inductance or capacitance in the circuit, especially in high-frequency amplifier designs like RF circuits.
Solution:
To prevent oscillations, ensure that proper bypass capacitor s are placed at the power supply input, and use a well-designed ground plane. For RF circuits, proper shielding and decoupling techniques are crucial to reduce noise and parasitic feedback. It may also be helpful to add a small resistor (10–100 ohms) in series with the base of the transistor to stabilize the circuit and prevent oscillations.
2.1.2 Insufficient Gain or Low Output
Another common issue is insufficient amplification, where the BC807-40 does not amplify the input signal to the desired level. This can be caused by improper biasing or an inappropriate load on the transistor.
Solution:
First, check the biasing network. The BC807-40 requires proper biasing of the base-emitter junction to ensure the transistor operates in the active region. Use a voltage divider or emitter resistor to set the correct operating point. Ensure the collector resistor is correctly sized to provide the necessary gain. Additionally, check for excessive loading on the transistor that could drain its output current.
2.1.3 Thermal Runaway
Thermal runaway can occur if the transistor is not properly thermally managed, especially in designs that involve high power or poor heat dissipation.
Solution:
To prevent thermal runaway, ensure that the BC807-40 is operating within its safe thermal limits. If necessary, use heat sinks or thermal vias to dissipate heat. Proper ventilation and thermal management techniques are essential in avoiding this issue. You can also use a negative feedback loop in the design to stabilize the operating point and reduce thermal instability.
2.1.4 Incorrect Saturation or Cutoff Regions
In amplifier circuits, ensuring the transistor operates in the active region is crucial. If the transistor enters saturation (where the collector-emitter voltage is too low) or cutoff (where the transistor is completely off), the amplifier may fail to function properly.
Solution:
Review the circuit’s operating point and ensure that the transistor is not driven into saturation or cutoff during operation. For linear amplification, the BC807-40 must stay in the active region. You can adjust the base resistor and ensure that the input signal is within the transistor’s linear range.
2.2 Optimization Tips for Improved Performance
2.2.1 Proper Biasing for Stability
Proper biasing is one of the most important factors in ensuring that the BC807-40 operates efficiently in low-power amplifier circuits. By setting the correct operating point, you can achieve both high gain and stability. A well-designed biasing network should ensure that the transistor stays in the active region under all operating conditions.
2.2.2 Use of Emitter Resistor for Stability
Adding an emitter resistor helps stabilize the operating point of the transistor. This resistor provides negative feedback, which reduces variations in current due to changes in temperature or power supply voltage. It also helps mitigate thermal runaway by improving the overall thermal stability of the circuit.
2.2.3 Bypass Capacitors for Smooth Operation
To ensure smooth performance in low-power amplifier circuits, especially in audio applications, place bypass capacitors near the power supply pins. These capacitors will filter out any high-frequency noise, reducing ripple and improving the overall signal quality.
2.2.4 Simulation and Prototyping
Before committing to a final design, simulate the amplifier circuit using tools like SPICE (Simulation Program with Integrated Circuit Emphasis). This allows you to test the performance of the BC807-40 in different configurations and make any necessary adjustments before building the physical circuit. Prototyping on a breadboard can also help catch any potential issues early in the design process.
2.3 Conclusion
The BC807-40 transistor is an excellent choice for low-power amplifier circuits, thanks to its energy efficiency, high gain, and compact design. Whether you're working on audio amplifiers, RF circuits, or sensor signal conditioning, the BC807-40 provides a reliable solution for your needs. By following proper design practices and applying the debugging tips outlined above, you can optimize the performance of your amplifier circuits and ensure stable, efficient operation.
