The AT24C02C-SSHM-T is a widely used I2C EEPROM chip, offering compact, reliable, and cost-effective Memory solutions for embedded systems. While it is a robust component, users may encounter a variety of issues when integrating it into their designs. In this article, we’ll explore the common troubleshooting steps and solutions for the AT24C02 C-SSHM-T, helping engineers and hobbyists overcome challenges effectively.
AT24C02C-SSHM-T, troubleshooting, EEPROM, I2C, embedded systems, memory issues, Communication problems, microcontroller, electronics, solutions
Overview and Common Issues with the AT24C02C-SSHM-T

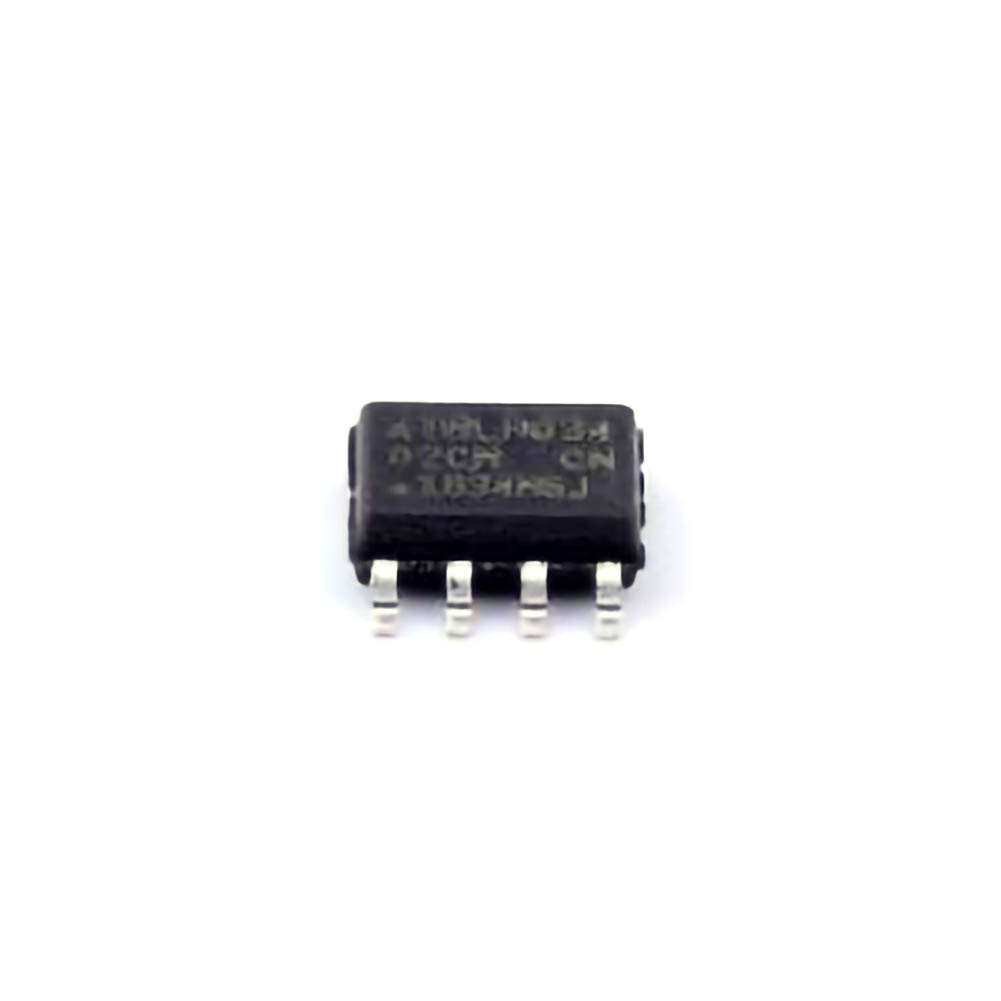

The AT24C02C-SSHM-T is a 2Kbit I2C EEPROM ( Electrical ly Erasable Programmable Read-Only Memory) manufactured by Microchip Technology. It is commonly used in various applications, from storing configuration data to maintaining system settings in embedded systems. Despite its reliability, users often face challenges when working with the AT24C02C-SSHM-T due to communication errors, Power issues, or improper connections. This section provides an overview of the chip and highlights some of the most common issues you may encounter.
Understanding the AT24C02C-SSHM-T
The AT24C02C-SSHM-T is an I2C-compatible memory device, meaning it communicates with other microcontrollers or processors via the I2C protocol. This protocol allows for efficient data transfer with minimal wiring and a simple two-wire interface , which is ideal for low-power, space-constrained applications. The chip features 256 x 8 bits of memory (2Kbits), with a built-in write protection and support for both read and write operations.
While the AT24C02C-SSHM-T is relatively easy to integrate, issues can arise if the design or setup is incorrect. The most common problems users encounter typically relate to the I2C communication, power supply, or physical connections.
Common Troubleshooting Issues
1. I2C Communication Errors
I2C communication errors are the most frequent cause of issues when working with the AT24C02C-SSHM-T. These errors can manifest in various ways, such as failure to read or write data, data corruption, or devices not responding at all.
Possible Causes:
Incorrect Addressing: The AT24C02C-SSHM-T uses a 7-bit I2C address. Incorrect addressing or improper configuration in the microcontroller may lead to communication failure. Ensure that the correct address is being used during both read and write operations.
Clock Speed Mismatch: The I2C bus speed must be within the capabilities of the AT24C02C-SSHM-T. It can operate at standard (100kHz) or fast (400kHz) mode, but if the microcontroller is set to a higher frequency than the EEPROM can handle, communication may fail.
Bus Contention: Multiple devices on the same I2C bus can cause contention, where two or more devices attempt to communicate simultaneously. In such cases, bus errors or missed data may occur. Verify that there are no conflicting devices on the same bus.
Solutions:
Double-check the I2C address used in your code.
Confirm that the bus speed is within the device’s operating range (typically 100kHz or 400kHz).
Use pull-up Resistors on the SDA and SCL lines to ensure proper signal integrity. If you have multiple devices, make sure to avoid bus contention by managing access to the bus correctly.
2. Power Supply Issues
Power-related problems can also lead to malfunctioning of the AT24C02C-SSHM-T. Improper power delivery or fluctuating voltages can cause the EEPROM to behave unpredictably or fail to communicate.
Possible Causes:
Insufficient Voltage: The AT24C02C-SSHM-T operates with a supply voltage range of 1.8V to 5.5V. If the voltage provided to the chip is outside this range, it may fail to operate correctly.
Power Glitches: If the power supply experiences fluctuations or drops, the EEPROM may lose data or fail to communicate properly.
Grounding Issues: Poor grounding in the circuit can result in signal noise or improper operation of the AT24C02C-SSHM-T.
Solutions:
Ensure that the voltage provided to the chip falls within the specified range.
Use a stable and reliable power supply to avoid voltage fluctuations. Adding decoupling capacitor s near the power pins can help filter out noise.
Double-check the grounding in your circuit to avoid issues with signal integrity.
3. Write Failures
Writing data to the AT24C02C-SSHM-T is a relatively straightforward process, but write failures can still occur due to various factors. Write operations to EEPROMs are slower than read operations, and certain conditions may prevent successful writes.
Possible Causes:
Write Protect Pin (WP): The WP pin on the AT24C02C-SSHM-T is used to enable or disable the write protection function. If this pin is tied to a logic high, the write protection is enabled, and no writes will be accepted.
Timing Issues: EEPROM write cycles are relatively slow, typically requiring several milliseconds to complete. If your code attempts multiple writes in rapid succession, the first write may not complete before the next one begins.
Insufficient Power: As mentioned, unstable or inadequate power supply can cause write failures.
Solutions:
Ensure that the WP pin is connected to a logic low level (or left floating) to allow writes to the EEPROM.
Add appropriate delays between write operations to ensure each write completes successfully.
Monitor the power supply to ensure it remains stable during write operations.
Advanced Troubleshooting, Debugging, and Best Practices
While common issues like communication errors, power supply problems, and write failures are relatively straightforward to address, there are more advanced scenarios in which you might encounter difficulties. In this section, we’ll explore some advanced troubleshooting techniques, as well as best practices for ensuring that your AT24C02C-SSHM-T-based design functions reliably over time.
Advanced Troubleshooting Techniques
1. Analyzing the I2C Signals with an Oscilloscope
When I2C communication fails, it can be helpful to examine the actual signals on the SDA and SCL lines. Using an oscilloscope, you can capture and analyze the timing of these signals, ensuring that they meet the specifications required by the AT24C02C-SSHM-T.
What to Look for:
Correct Timing: Ensure that the timing of the clock pulses and data transfers matches the I2C specification. Specifically, the clock (SCL) signal should meet the rise and fall time requirements, and the data (SDA) should be stable before each clock edge.
Addressing: Verify that the address is correctly transmitted on the SDA line, followed by the read/write bit. Look for proper acknowledgments from the EEPROM.
Data Integrity: Check if the data being transmitted is correctly aligned with the clock pulses, and ensure that no bits are lost or corrupted.
Solution:
Using an oscilloscope, monitor the I2C bus to visually inspect the signals and timings. Adjust the clock speed or address as needed to ensure stable communication.
2. Checking for Data Corruption
In some cases, you may successfully communicate with the AT24C02C-SSHM-T, but the data retrieved is incorrect or corrupted. This may be caused by electrical noise, improper timing, or faulty wiring.
What to Do:
Add Pull-Up Resistors: The I2C lines (SDA and SCL) require pull-up resistors to function correctly. Ensure that you’ve added appropriate pull-up resistors (typically 4.7kΩ to 10kΩ) on both lines to maintain signal integrity.
Check for Crosstalk or Noise: If your circuit is noisy, you may experience data corruption. Use shielded cables or improve grounding and decoupling to reduce noise.
3. Replacing the AT24C02C-SSHM-T
If you have ruled out all other possibilities and the device still fails to work correctly, the chip itself may be defective. Although rare, manufacturing defects can occasionally occur, and a replacement may be necessary.
Solution:
If you have access to a spare AT24C02C-SSHM-T chip, swap it out and check if the issue persists. If the new chip works fine, the original chip may have been faulty.
Best Practices for Working with the AT24C02C-SSHM-T
1. Design Considerations
To avoid issues with the AT24C02C-SSHM-T in the first place, it's essential to design your circuit correctly. Here are some best practices:
Use Proper I2C Pull-Up Resistors: Always include pull-up resistors on the SDA and SCL lines. These resistors ensure proper signal levels and reduce the chance of data errors.
Careful PCB Layout: When designing the PCB, keep the SDA and SCL lines short and avoid routing them near high-frequency or noisy signals. This helps prevent signal degradation and ensures stable communication.
Stable Power Supply: Use low-noise, regulated power supplies, and decouple them with capacitors to ensure the AT24C02C-SSHM-T receives a clean and stable voltage.
Consider Write Cycles: The AT24C02C-SSHM-T has a limited number of write cycles (approximately 1 million). To extend the lifespan of the EEPROM, minimize unnecessary write operations, and only write when necessary.
2. Software Considerations
The software implementation also plays a crucial role in the performance of the AT24C02C-SSHM-T. Ensure that:
You Handle Acknowledgments Properly: After sending the address and data, always check for an acknowledgment from the device. If no acknowledgment is received, it indicates a communication failure.
Implement Error Handling: Include error handling routines in your code to gracefully recover from communication issues. For example, if the EEPROM doesn’t respond, retry the operation or flag the error for further investigation.
Conclusion
The AT24C02C-SSHM-T is a reliable, cost-effective EEPROM for many embedded applications, but like any electronic component, it requires careful handling to avoid potential issues. By understanding the common problems and their solutions—such as addressing errors, power issues, write failures, and communication difficulties—you can ensure smooth integration of this chip into your projects.
With the troubleshooting steps and best practices outlined in this article, you'll be equipped to tackle any problems that may arise and make the most out of your AT24C02C-SSHM-T EEPROM.
