Identifying Common Problems with the ATMEGA64A-AU Microcontroller

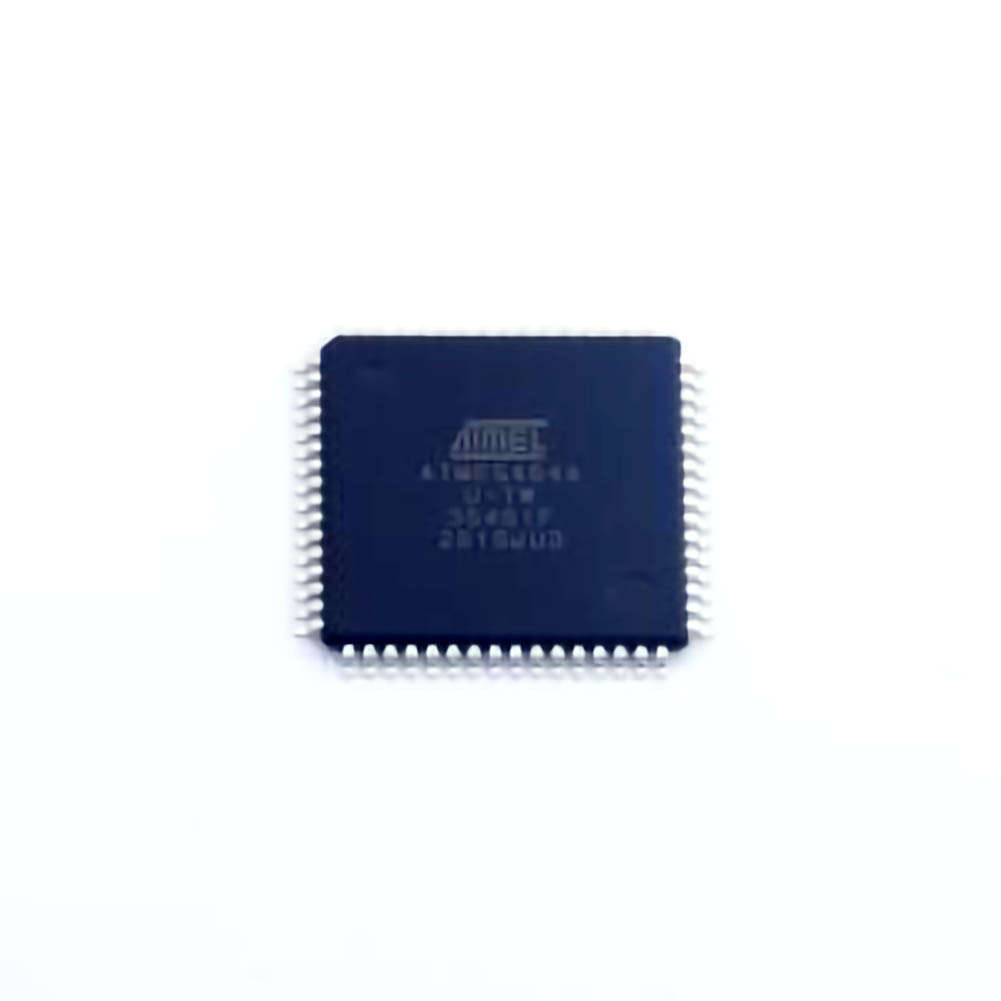

The ATMEGA64A-AU, part of Atmel’s ATmega family, is a Power ful and flexible 8-bit microcontroller with a range of applications in embedded systems, robotics, IoT devices, and more. However, like any hardware component, it can encounter issues that may impede functionality. Troubleshooting such issues can be a challenge, especially for newcomers to the world of microcontroller development.
Here, we’ll dive into some of the most common problems users face with the ATMEGA64A-AU and discuss practical solutions to fix them.
1. Incorrect Microcontroller Initialization
One of the first hurdles users may face is improper initialization. If the ATMEGA64A-AU is not correctly initialized at power-up, it may fail to run the intended firmware, causing the system to appear non-functional.
Symptoms:
No response from the microcontroller ( LED s, outputs, etc.).
Unexpected behavior such as random resets or failures to execute instructions.
Solution:
Check the clock source: The ATMEGA64A-AU supports multiple clock sources, including internal and external oscillators. If your code expects a certain clock source, ensure the microcontroller is correctly configured to use it. Use fuses to set the clock source, and check for oscillator circuit issues if you are using an external oscillator.
Reset Circuit Issues: Verify the reset circuit is functioning as expected. The ATMEGA64A-AU has an internal reset circuitry, but external components such as capacitor s and resistors may impact the reset behavior. If using external components, ensure they are correctly connected.
2. Inaccurate or Missing Program Execution
Sometimes, the ATMEGA64A-AU may not execute the program as expected. This is a common issue when the firmware upload process is not completed correctly or if the bootloader is not functioning properly.
Symptoms:
The system seems unresponsive to input.
Program execution halts before reaching expected behavior.
Solution:
Check the Programmer Connection: If you are uploading firmware via a programmer (e.g., USBasp or JTAG), verify the connection is stable and correct. Double-check the pinout and the connections between the programmer and the ATMEGA64A-AU.
Bootloader Problems: If the ATMEGA64A-AU uses a bootloader, ensure it is correctly installed. A corrupt or incomplete bootloader can prevent the device from accepting firmware uploads. Try reflashing the bootloader if necessary.
Verify Code Compatibility: Sometimes, the issue could be related to incompatible or incorrectly written code. Ensure the code is compiled for the correct ATmega microcontroller version and that the Memory configuration aligns with the target microcontroller’s specifications.
3. Power Supply Instability
A common yet overlooked cause of malfunctioning embedded systems is an unstable or insufficient power supply. The ATMEGA64A-AU requires a stable voltage, typically 3.3V or 5V, depending on the version.
Symptoms:
Microcontroller restarts unexpectedly.
Peripheral devices fail to operate correctly.
Erratic behavior such as fluctuating output values or intermittent Communication failures.
Solution:
Verify Voltage Levels: Use a multimeter to check the supply voltage. Ensure that the voltage supplied is within the recommended range for the ATMEGA64A-AU.
Decoupling Capacitors : Place decoupling capacitors (0.1µF ceramic and 10µF electrolytic) near the power pins of the microcontroller. These capacitors help filter out noise from the power supply, improving system stability.
Power-on Reset Circuit: Consider using a dedicated power-on reset IC to ensure that the microcontroller gets a clean reset when power is applied.
4. External Peripheral Communication Issues
External peripherals, such as Sensors , displays, or motors, often communicate with the ATMEGA64A-AU via communication protocols like SPI, I2C, or UART. Communication problems between the microcontroller and these peripherals can result in malfunctioning or incomplete data exchanges.
Symptoms:
Failure to read Sensor values.
No data transmitted over UART or SPI.
I2C slave devices not responding.
Solution:
Check Wiring and Connections: Ensure that all peripheral devices are properly wired to the correct pins on the ATMEGA64A-AU. Sometimes, a simple wiring issue like an incorrect pin connection can cause communication failures.
Verify Protocol Configurations: Double-check the baud rate, clock polarity, and other settings for communication protocols (SPI, I2C, etc.). Mismatched configurations between the ATMEGA64A-AU and the peripheral can prevent proper communication.
Use Logic Analyzers or Oscilloscopes: If the issue is more complex, using a logic analyzer or oscilloscope can help you observe the signals being transmitted and diagnose the problem. For instance, you can check for missing clock pulses or incorrect signal timing.
5. Memory Exhaustion and Corruption
Another issue that can crop up when working with microcontrollers is memory exhaustion, particularly when dealing with large programs or heavy data processing tasks. The ATMEGA64A-AU has 64KB of flash memory, 4KB of SRAM, and 2KB of EEPROM, which may be limited depending on the complexity of your project.
Symptoms:
Program crashes or hangs.
Unexpected behavior, especially after a certain runtime.
Data loss or corruption in EEPROM or SRAM.
Solution:
Optimize Code: Ensure that your program is optimized to use as little memory as possible. Look for unused variables or functions that can be removed. Minimize the use of large arrays or data structures if not required.
Check for Stack Overflow: If your program is using deep recursion or large local variables, it may lead to a stack overflow. Review your code to ensure that functions and data structures do not consume excessive stack space.
Use Memory Mapped I/O: Consider using external memory module s, such as SRAM or EEPROM, if your application needs more storage than what the microcontroller provides internally. Alternatively, use memory-mapped I/O to access data stored in external devices.
Advanced Troubleshooting and Solutions for the ATMEGA64A-AU
6. Timer and Interrupt Issues
The ATMEGA64A-AU has a rich set of timers and interrupt capabilities, which are often critical for real-time systems. However, misconfiguration or improper handling of timers and interrupts can lead to unpredictable behavior or failure to perform certain tasks.
Symptoms:
Delayed or missed interrupts.
Timer-driven events do not occur as expected.
System hangs or freezes during interrupt service routines (ISR).
Solution:
Interrupt Vector Table: Ensure that the interrupt vector table is correctly defined in your code. Missing or incorrect interrupt service routines (ISRs) can prevent interrupts from being handled properly.
Timer Configuration: Double-check the timer registers and prescaler settings. If a timer is not configured correctly, it may not trigger at the expected intervals, leading to timing errors in the system.
ISR Priorities: In more complex systems with multiple interrupts, ensure that higher-priority interrupts are not being masked by lower-priority ones. Use proper nesting and priority handling for optimal ISR performance.
7. Overheating and Thermal Issues
While not common, the ATMEGA64A-AU can experience overheating, especially if used in high-power applications or enclosed spaces with limited airflow.
Symptoms:
The microcontroller becomes hot to the touch.
The system behaves erratically after prolonged use.
Performance degradation over time.
Solution:
Ensure Proper Ventilation: If the ATMEGA64A-AU is part of a larger system, make sure the enclosure allows for proper heat dissipation. Adding heat sinks or ensuring adequate airflow around the microcontroller can help prevent overheating.
Use External Cooling Solutions: In extreme cases, you might need to add external cooling solutions such as small fans to your system to keep temperatures within safe limits.
8. Debugging Techniques
If your project encounters inexplicable behavior, advanced debugging techniques can help identify the root cause.
Symptoms:
Unpredictable system behavior.
Inconsistent results in different environments.
Difficult-to-reproduce errors.
Solution:
Use Debugging Tools: Utilize tools like JTAG or AVR Dragon to step through the code and observe how the microcontroller responds in real-time. Breakpoints can help pinpoint where the program goes awry.
Serial Output: Insert serial print statements in your code to track variable values and system states. Output logs to a terminal or monitor to track down the error.
External Sensors/ Monitors : If necessary, use external sensors or monitors to track environmental factors that could affect the microcontroller’s performance, such as temperature, voltage, or signal integrity.
By following the solutions outlined above, you can significantly reduce the chances of encountering persistent issues with your ATMEGA64A-AU microcontroller. Each system is unique, but a systematic approach to debugging and troubleshooting is key to ensuring your embedded system operates as intended. With patience and the right knowledge, you’ll be able to resolve issues efficiently and improve the overall reliability of your project.
