Introduction to BC327 PNP transistor and Its Role in Low- Power Amplifier Circuits
Transistors are the backbone of modern electronics, enabling the amplification of electrical signals and serving as a fundamental building block in everything from radios to smartphones. Among the various types of transistors, the BC327 PNP transistor stands out as an ideal choice for low-power amplifier applications due to its unique characteristics. In this section, we'll dive into the specifics of the BC327, explore its features, and look at how it fits into low-power amplifier circuits.
What is the BC327 PNP Transistor?

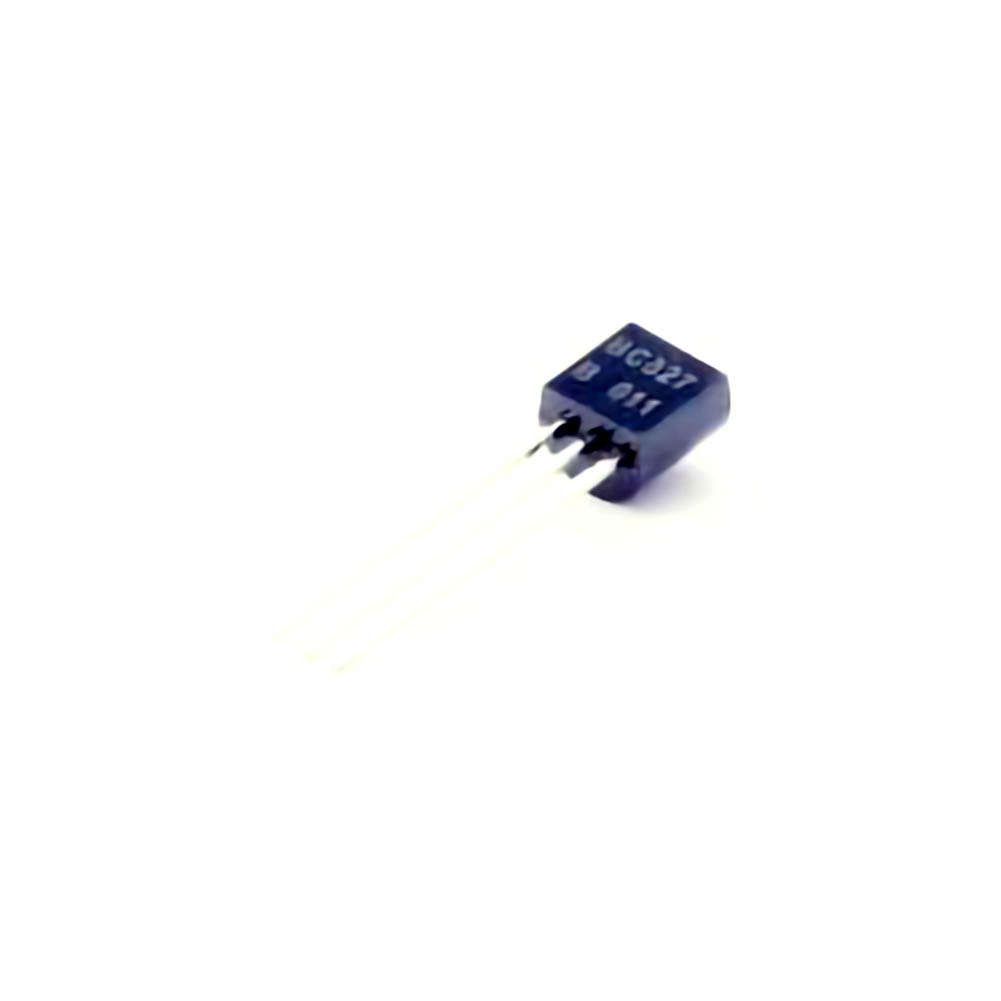

The BC327 is a medium-power PNP transistor, designed primarily for use in low-power amplification and switching applications. As a PNP (Positive-Negative-Positive) transistor, its structure involves two p-type semiconductor materials with an n-type material sandwiched in between. This design makes it particularly suitable for applications where a negative voltage needs to control the flow of current through the circuit. When used in an amplifier circuit, the BC327 functions by amplifying a small input signal, allowing it to drive larger loads like speakers or other output devices.
With its maximum collector current rating of 800 mA and a voltage rating of up to 45 V, the BC327 can handle moderate power levels, making it ideal for low-power applications like Audio Amplifiers or signal amplification in various consumer electronics.
Key Features of the BC327
Before diving deeper into its applications, let’s first outline the key features of the BC327 PNP transistor:
Maximum Collector-Emitter Voltage (Vce): 45V
Maximum Collector Current (Ic): 800 mA
Power Dissipation (Ptot): 500 mW
Gain (hFE): Typically 110 to 800 (depending on the model and operating conditions)
Package Type: Available in a TO-92 package for easy integration into a variety of circuits.
High Linear ity: The BC327 is known for providing low distortion in amplification circuits, which is crucial for audio applications.
These specifications make the BC327 particularly attractive for use in low-power audio circuits and simple amplifier designs where both efficiency and performance are paramount.
How the BC327 Functions in Amplifier Circuits
Amplifier circuits are designed to take a weak input signal (such as an audio signal) and increase its strength, making it strong enough to drive speakers or other output devices. In a typical low-power amplifier circuit using the BC327 PNP transistor, the transistor operates in the common-emitter configuration. Here's how it works:
Base-Emitter Junction: When a small input current is applied to the base of the BC327, it controls the flow of current between the collector and emitter terminals. The transistor’s base-emitter junction behaves like a diode, allowing current to flow from the base to the emitter when the voltage difference reaches a certain threshold.
Amplification Process: The BC327 allows for significant amplification of the input signal. By controlling the flow of current between the collector and emitter with the input at the base, it boosts the signal strength, creating a much higher output signal.
Voltage Gain: As a transistor in the common-emitter configuration, the BC327 contributes to both voltage and current amplification, making it suitable for driving speakers or other low-power output devices without requiring large amounts of energy.
Applications of BC327 PNP Transistor in Low-Power Amplifiers
The BC327 transistor’s ability to handle moderate power levels while offering excellent linearity and low distortion makes it ideal for use in low-power amplifier circuits, such as:
Audio Amplifiers: One of the most common applications of the BC327 is in small, portable audio amplifiers. Whether in personal music players, small radios, or audio enhancement devices, the BC327 can amplify audio signals to an adequate level without consuming much power. These amplifiers are often used in battery-operated devices, where power consumption is a key concern.
Signal Amplification: In many consumer electronics, weak signals need to be amplified before they can be processed or transmitted. The BC327 is used in circuits designed to amplify these signals with minimal power draw. This includes radio receivers, low-noise audio amplification circuits, and even some communications equipment.
Oscillators and Pulse Circuits: The BC327 is also commonly used in signal oscillators and pulse-generating circuits. Its ability to switch between on and off states quickly makes it an excellent choice for generating the periodic signals required in these applications.
Benefits of Using the BC327 in Low-Power Amplifier Circuits
Several advantages make the BC327 a go-to choice for low-power amplifier circuits:
Efficiency: With low power consumption, the BC327 ensures that the circuit remains efficient, especially in battery-operated devices. This helps extend the operational life of the device.
Compactness: The BC327 comes in a small TO-92 package, making it ideal for integration into compact circuit designs.
Low Distortion: The BC327 produces minimal distortion, ensuring that the amplified signal is clear and accurate.
Versatility: The BC327 can handle a range of applications beyond audio amplification, making it a versatile component in any engineer’s toolkit.
Designing and Implementing a Low-Power Amplifier Using the BC327 PNP Transistor
Now that we have explored the BC327’s features and benefits, it’s time to look at how to implement this transistor in a practical low-power amplifier circuit. In this section, we will explore the steps involved in designing a simple amplifier using the BC327, as well as some tips for optimizing performance.
Step 1: Circuit Design – Basic Amplifier Configuration
The most basic amplifier circuit that uses the BC327 PNP transistor is the common-emitter amplifier. Here, the transistor amplifies the input signal, and the output is taken from the collector. To design this amplifier, the following components are typically required:
BC327 PNP Transistor: As the primary amplifying component.
Resistors : To set the biasing of the transistor and to limit current where necessary. The base resistor, collector resistor, and emitter resistor all play crucial roles in determining the performance of the circuit.
Capacitors : To block DC offset and pass the AC signal through the amplifier while preventing unwanted low-frequency noise.
Power Supply: A low-voltage DC power source to drive the circuit, typically between 9V and 12V for most small audio amplifier applications.
The key to proper operation of the circuit lies in biasing the BC327 transistor appropriately. The base resistor ensures that the base-emitter junction receives enough current to turn on, while the collector resistor allows the output signal to be taken at the collector.
Step 2: Biasing the BC327 Transistor
Proper biasing is essential for achieving optimal performance from the transistor. For the BC327 to operate in its active region (and thus amplify the signal), the voltage at the base must be slightly more negative than the emitter. A typical voltage difference between the base and emitter is about 0.7V.
To bias the transistor:
Use a voltage divider network made of two resistors between the power supply voltage and ground to provide a stable voltage at the base of the transistor.
Select the emitter resistor to set the current flowing through the transistor and stabilize its operation.
The collector resistor is used to provide the necessary voltage drop for the amplified output signal.
Step 3: Optimizing the Performance
To achieve high-fidelity amplification, you need to focus on minimizing distortion and ensuring that the circuit operates efficiently. Here are a few tips:
Use quality capacitor s with low ESR (equivalent series resistance) to filter out high-frequency noise.
Ensure thermal stability by selecting resistors with appropriate power ratings, especially the emitter resistor, as it will dissipate heat during operation.
Choose the correct load impedance: For audio applications, the load impedance (such as speakers) should match the output impedance of the transistor stage to avoid signal loss.
Step 4: Testing and Adjustments
Once the circuit is assembled, it’s time to test it. You should use an oscilloscope or a signal analyzer to observe the output waveform. Check for clipping, distortion, or unwanted noise in the output signal, and make adjustments to the biasing and component values as necessary.
Applications in Real-World Devices
The BC327-based low-power amplifier circuit is widely used in real-world devices such as:
Portable audio devices (e.g., MP3 players, small radios)
Hobby electronics projects (e.g., DIY amplifiers)
Sound reinforcement systems (for low-power applications like personal amplifiers)
The simplicity of the BC327 makes it an accessible component for both beginners and seasoned engineers alike.
Conclusion
The BC327 PNP transistor is an invaluable tool for designing low-power amplifier circuits. With its compact size, low power consumption, and high efficiency, it’s well-suited for a wide variety of applications, particularly in audio amplification and signal processing. By understanding how the BC327 works and how to implement it in a circuit, you can create effective, low-power amplifier designs that meet the needs of modern electronics.
