Understanding the INA226AIDGSR and Common Troubleshooting Issues

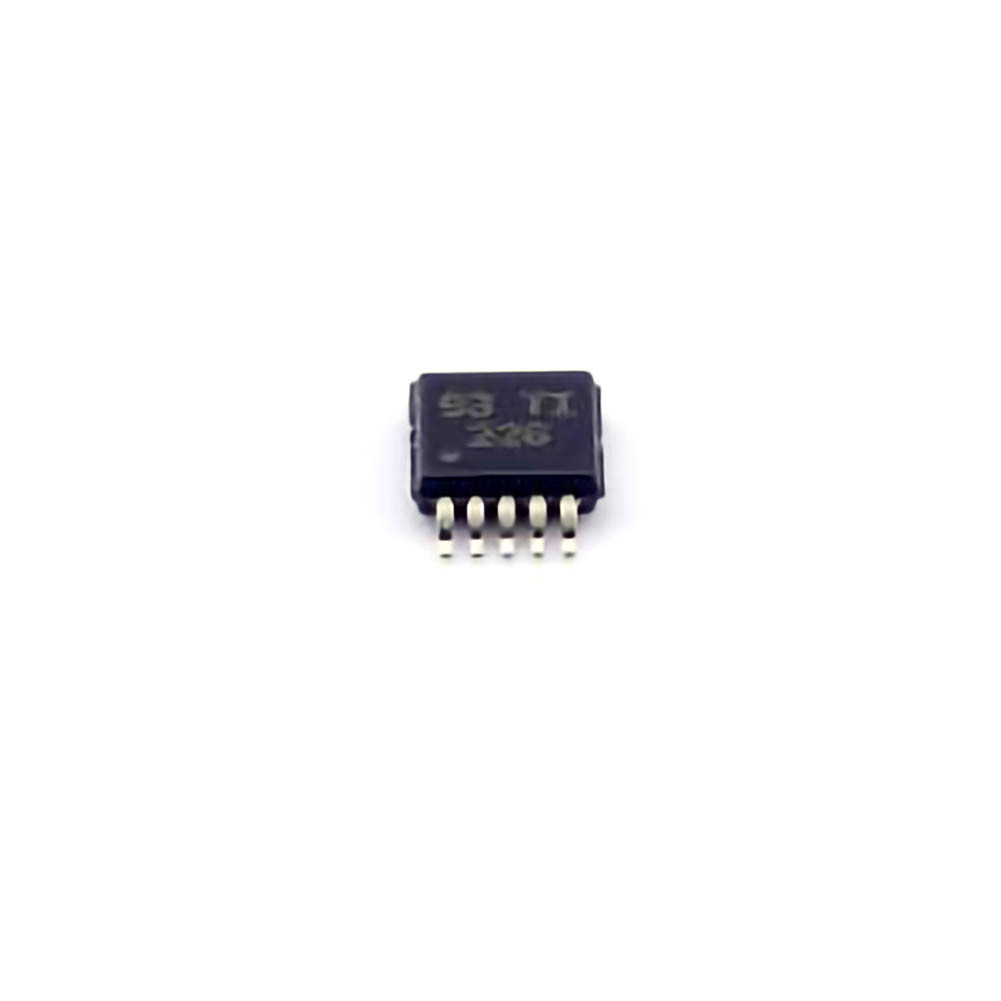

The INA226AIDGSR is a precision digital current and power monitor from Texas Instruments. Designed to measure the voltage, current, and power consumption in a system, it provides highly accurate readings by utilizing the I2C communication interface . With applications in everything from battery-powered devices to industrial systems, this component offers crucial insights for system design and diagnostics. However, like any electronic sensor, users may encounter problems when integrating the INA226 into their circuits.
In this section, we’ll review some of the most common troubleshooting issues faced by users of the INA226AIDGSR and discuss solutions for each.
1. Incorrect Power Supply Voltage
One of the most frequent issues when working with the INA226 is an incorrect power supply. The INA226 requires a supply voltage between 2.7V and 5.5V, which must be stable for accurate measurements. If the supply voltage is too high or too low, the INA226 may not function properly.
Symptoms of this issue include:
No response from the sensor when trying to read data.
Inaccurate or fluctuating readings.
The sensor may become unresponsive, and the I2C bus may show communication errors.
Solution:
Ensure that your power supply voltage is within the specified range. If you are powering the INA226 from a microcontroller or another power source, check the output with a multimeter. Using a voltage regulator to ensure a stable 3.3V or 5V output is essential. A regulated power supply is key to achieving accurate sensor readings.
2. I2C Communication Issues
Since the INA226 communicates over the I2C bus, any issue in communication could lead to incorrect or missing data. I2C communication problems are often related to:
Incorrect I2C addresses.
Poor connections or wiring issues.
Faulty pull-up resistors.
Slow clock speeds or high bus capacitance.
Symptoms of communication problems include:
The sensor is detected intermittently.
The sensor’s address cannot be found by the microcontroller.
The sensor outputs garbage data or fails to send data.
Solution:
Check the I2C address: The INA226 has a default I2C address of 0x40. Ensure that your code matches this address or modify the hardware address if necessary. Some systems allow you to change the address using jumper pins or configuration settings.
Check your wiring: Ensure that SDA (data) and SCL (clock) lines are securely connected between the INA226 and your microcontroller. Use short, shielded wires to minimize noise and avoid data corruption.
Check for pull-up resistors: The I2C bus requires pull-up resistors on the SDA and SCL lines. A 4.7kΩ resistor to the power supply (VCC) for each line should work in most cases. If the resistors are too high or too low, communication might fail.
Reduce bus capacitance: If the I2C bus is too long or has too many devices connected, the capacitance can slow down the communication. Try using a lower clock frequency or reducing the number of devices on the bus.
3. Misconfiguration of Calibration Registers
The INA226 allows users to configure its measurement range, calibration settings, and alert thresholds via registers. Incorrect configuration of these settings can lead to inaccurate measurements, especially for current and power readings.
Symptoms include:
Readings that are consistently too high or too low.
A constant reading of 0A or a value that doesn’t change.
Inaccurate power readings despite the current being within a measurable range.
Solution:
Ensure proper calibration: The INA226 uses a calibration register to adjust the sensor’s accuracy for the specific shunt resistor used in the system. Double-check that the value in the calibration register matches your system's design.
Set correct measurement ranges: The INA226 allows you to adjust the voltage and current ranges. For example, the current range can be configured to measure currents from 0 to 1A or up to 6.4A depending on the shunt resistor value. Incorrectly setting these ranges may result in reading errors.
To configure the INA226 for your specific system, refer to the datasheet and ensure that the calibration register is set correctly, based on your shunt resistor value. Misconfiguration of this register can severely affect the accuracy of your power measurements.
4. Shunt Resistor Selection and Placement
The INA226 measures current by detecting the voltage drop across an external shunt resistor. If the shunt resistor is chosen incorrectly or not placed in the right location, it can lead to measurement errors.
Symptoms include:
Inconsistent or unreliable current readings.
Power readings that don't correlate with actual load conditions.
The sensor may report a reading of 0A despite a known current flowing.
Solution:
Choose the correct shunt resistor: The INA226 supports a range of shunt resistors, typically between 0.01Ω to 1Ω. Ensure that the resistor value is selected based on the expected current range and the voltage drop you want to measure.
Place the resistor correctly: Ensure the shunt resistor is placed in the correct location in the circuit. It should be in series with the load, so the current flows through it, and the INA226 can accurately measure the voltage drop.
Use a low TCR resistor: Temperature coefficient (TCR) is important because it indicates how much the resistor’s value changes with temperature. A low TCR resistor is preferred to maintain measurement accuracy across a wide range of temperatures.
5. Software and Code Errors
Software errors are another common cause of issues with the INA226. Incorrect initialization or improper register access in the code can prevent the sensor from functioning as expected.
Symptoms include:
The sensor does not return data even though the hardware setup is correct.
Values read from the sensor are inconsistent or do not make sense.
Communication errors arise despite correct hardware setup.
Solution:
Double-check initialization code: Ensure that your software correctly initializes the INA226, including setting the right I2C address and configuring the measurement registers. The sensor should be initialized before attempting to read data from it.
Verify register access: Use a debugger or serial print statements to confirm that your code correctly reads and writes to the sensor’s registers. Misaddressing a register or writing incorrect data to the register could result in incorrect readings.
Check timing delays: After initiating a measurement, the INA226 requires some time to complete the conversion and prepare the data. Make sure your code allows sufficient time for the measurement to complete before attempting to read the data.
Advanced Solutions and Preventative Measures for INA226AIDGSR Issues
While Part 1 covered common issues like power supply problems, I2C communication issues, and configuration errors, Part 2 will focus on more advanced solutions and preventative measures to ensure the INA226 operates smoothly over time.
1. Ensuring Accurate Power Measurements
The INA226’s ability to measure both current and power makes it an excellent tool for energy monitoring and battery management systems. However, for power readings to be accurate, several factors must be considered:
Temperature Effects on Accuracy
The accuracy of the INA226 can degrade with temperature fluctuations. If your application involves significant temperature variations, the sensor's performance may vary, especially at the extreme ends of the temperature range.
Solution:
To mitigate temperature effects, ensure that the INA226 is placed in an environment where temperature changes are minimal or compensated for using an external temperature sensor. If precision is critical, use a temperature compensation algorithm in your software to adjust the readings based on the temperature.
Power Supply Decoupling
A common issue with precision sensors like the INA226 is noise from the power supply, which can interfere with the sensor's readings. Decoupling capacitor s placed near the power pins can filter out high-frequency noise and improve measurement accuracy.
Solution:
Use decoupling capacitors (e.g., 0.1µF ceramic capacitors) as close as possible to the VCC and GND pins of the INA226 to filter noise and reduce power supply ripple. This simple step can significantly improve the reliability and accuracy of the sensor in noisy environments.
2. Improving I2C Communication Stability
If your INA226 setup involves long I2C wires or multiple devices on the bus, communication stability could become an issue. The INA226 is highly sensitive to I2C signal integrity, and poor communication could lead to corrupted data or loss of connection.
Solution:
Use a dedicated I2C bus driver: In long-distance applications, use an I2C bus extender or a dedicated I2C driver to boost the signal strength and ensure reliable data transmission.
Keep I2C lines short: Try to minimize the length of the SDA and SCL lines to reduce the potential for signal degradation and improve data integrity.
Reduce I2C clock speed: If communication errors persist, reduce the clock speed of the I2C bus. A slower clock can improve reliability, particularly on long or noisy bus lines.
3. Regular Calibration and Testing
To maintain long-term accuracy, it’s essential to regularly calibrate and test the INA226. Over time, environmental factors such as temperature, humidity, and aging components can affect the performance of the sensor. Therefore, periodic recalibration is recommended for critical applications.
Solution:
Perform regular calibration: If your application requires high accuracy, periodically recalibrate the INA226 by adjusting the calibration register and verifying its readings against known reference values.
Test the system in real-world conditions: Before deploying your system in a field application, conduct extensive testing under realistic conditions. This helps identify potential issues early and ensures the system behaves as expected under various load and environmental conditions.
By following these troubleshooting steps and preventive measures, you can minimize the risk of encountering issues with the INA226AIDGSR and ensure accurate and reliable performance in your projects. Whether you’re monitoring battery systems, power supplies, or industrial equipment, understanding how to effectively diagnose and resolve common issues with this powerful sensor will save you time and improve your system’s efficiency.
