In the world of embedded systems and serial Communication , the MAX3232EIDR is a crucial component for ensuring proper voltage level conversion between devices with different voltage logic levels. This article explores the importance of the MAX3232EIDR chip in serial communication systems and how circuit optimization enhances reliability, efficiency, and compatibility across devices.
Introduction to Serial Communication and Voltage Level Challenges
Serial communication is the backbone of many embedded systems and electronic devices. From industrial machines to simple microcontroller projects, serial interface s like RS-232, RS-485, and TTL-based UART are widely used for communication. However, one of the most persistent challenges in serial communication systems is the compatibility between different voltage levels used by various devices.
In traditional serial communication systems, voltage levels are typically based on logic families, such as the TTL (Transistor-Transistor Logic) standard or the older RS-232 standard. TTL, commonly used in microcontrollers and embedded systems, typically operates with a logic "high" at 3.3V or 5V and a logic "low" at 0V. On the other hand, RS-232, which is an older communication standard still in use, uses much higher voltage levels, typically ±12V, for representing logic states. This mismatch in voltage levels between different devices can lead to data transmission errors or even damage sensitive components.
This is where level conversion becomes essential. Level converters allow devices operating at different voltage levels to communicate reliably, ensuring that voltage signals are translated correctly between systems, minimizing the risk of errors and hardware damage. One of the most reliable and widely used level converters in serial communication is the MAX3232EIDR.
The Role of MAX3232EIDR in Level Conversion

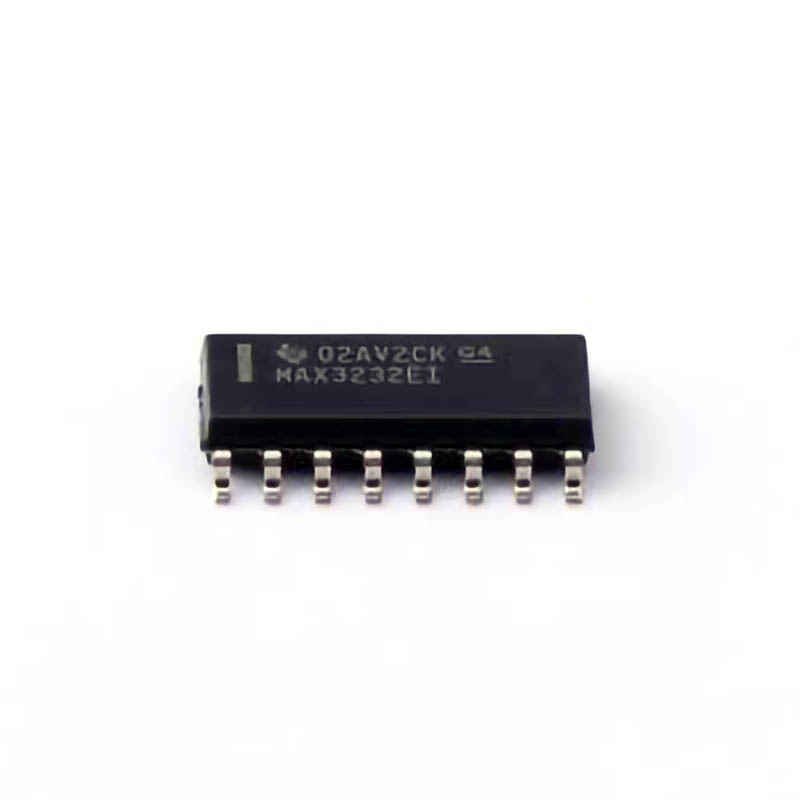

The MAX3232EIDR is a dual-driver and dual-receiver chip that provides the necessary interface for converting voltage levels between TTL (or CMOS) logic levels and the RS-232 standard. It is designed to operate with a 3.0V to 5.5V Power supply, making it ideal for modern embedded systems and portable devices. The MAX3232EIDR offers multiple advantages, including reduced power consumption, small size, and high-speed operation, which makes it perfect for low-power, space-constrained applications.
The primary function of the MAX3232EIDR is to translate logic-level signals between 3.3V or 5V devices and the higher voltage levels required by RS-232 devices. For example, in a typical system, a microcontroller that operates at 3.3V logic might need to communicate with a legacy serial device using RS-232, such as an old industrial machine or a serial-to-Ethernet converter. Without the MAX3232EIDR, the voltage mismatch could result in incorrect signal detection, or worse, could permanently damage the microcontroller.
The chip performs level conversion through its internal capacitive charge pump, which generates the necessary high voltages (typically ±12V) required for RS-232 signals from a lower voltage supply. The MAX3232EIDR provides reliable bidirectional conversion, meaning it can translate signals in both directions — from TTL to RS-232 and vice versa.
Key Features of MAX3232EIDR
Some of the most noteworthy features of the MAX3232EIDR that make it a go-to choice for serial communication applications include:
Wide Operating Voltage Range: The chip operates with a voltage supply as low as 3V, making it compatible with a broad range of microcontrollers, including low-voltage logic devices.
Low Power Consumption: Compared to traditional RS-232 transceiver s, the MAX3232EIDR consumes much less power, which is especially valuable in battery-powered applications.
Compact Form Factor: Its small size allows it to fit into space-constrained devices, which is essential for portable or miniaturized electronic systems.
High-Speed Data Transfer: The chip supports high data rates, making it suitable for a wide range of communication speeds, from low-speed data transmissions to more demanding high-speed communication applications.
Full Duplex Communication: The MAX3232EIDR supports full-duplex communication, meaning it can transmit and receive data simultaneously, ensuring more efficient data transfer.
These features make the MAX3232EIDR the ideal choice for embedded systems that require reliable and efficient level conversion for serial communication.
Circuit Optimization for MAX3232EIDR Applications
While the MAX3232EIDR is a powerful and versatile component for serial communication, maximizing its effectiveness in a design requires careful attention to circuit optimization. Proper circuit design ensures that the level converter operates at peak performance, offering reliable communication with minimal signal loss, noise interference, and power consumption.
Power Supply Decoupling
One of the most common pitfalls when integrating the MAX3232EIDR into a circuit is neglecting power supply decoupling. Power supply noise and voltage fluctuations can affect the performance of the level converter and result in unreliable communication or signal corruption. Using decoupling capacitor s close to the power pins of the MAX3232EIDR is crucial. A combination of a large-value capacitor (e.g., 10μF to 100μF) for filtering low-frequency noise and a small-value capacitor (e.g., 0.1μF) for high-frequency noise is recommended to ensure stable operation.
Capacitor Selection for Charge Pump
The MAX3232EIDR utilizes an internal charge pump to generate the necessary RS-232 voltage levels. The performance of this charge pump heavily depends on the external capacitors used to store energy. The datasheet provides specific recommendations for capacitor values, typically in the range of 1μF to 10μF for each of the charge pump pins. Using capacitors of the correct value and low ESR (equivalent series resistance) is critical for maintaining proper voltage generation and reducing ripple on the RS-232 signals.
Reducing Signal Distortion
In high-speed applications, signal integrity becomes a concern, especially when running long serial communication lines. To minimize distortion and signal degradation, it's important to keep the traces between the MAX3232EIDR and the connected devices as short and direct as possible. Additionally, using proper PCB layout techniques, such as maintaining a consistent ground plane and minimizing the loop area for high-speed signals, helps ensure clean data transmission. Differential signaling (for RS-485) or using proper termination resistors for RS-232 can also help to further reduce signal loss.
Using Proper Transient Protection
When connecting the MAX3232EIDR to external devices, it's essential to protect the communication lines from transient voltage spikes, which could potentially damage the chip. Using TVS (Transient Voltage Suppression) diodes or Zener diodes on the communication lines can help safeguard the MAX3232EIDR and other sensitive components. This is especially crucial in environments with heavy electrical noise or in industrial applications where transient voltage spikes are common.
Selecting the Right Baud Rate and Data Format
While the MAX3232EIDR is capable of supporting a wide range of baud rates and data formats, the choice of baud rate and data parameters (such as parity, stop bits, etc.) significantly impacts the overall system performance. Selecting the right baud rate for your application can help optimize the data transfer rate and reduce the chances of communication errors. Lower baud rates typically provide more reliable communication, while higher baud rates may improve performance at the expense of signal integrity over longer distances.
Minimizing Power Consumption
One of the primary reasons to use the MAX3232EIDR is its low power consumption, but optimizing the circuit design can reduce power consumption even further. For instance, integrating the MAX3232EIDR into systems with efficient power management circuitry, such as sleep modes or voltage regulators, can help extend battery life in portable applications.
Conclusion: The Future of Serial Communication with MAX3232EIDR
The MAX3232EIDR plays a pivotal role in facilitating reliable and efficient serial communication between devices with different voltage levels. Its combination of low power consumption, small form factor, and robust level conversion capabilities makes it an indispensable tool for modern embedded systems. By following best practices in circuit optimization, designers can ensure that their communication systems operate at peak performance with minimal error rates and power consumption. As serial communication continues to play a crucial role in everything from industrial automation to consumer electronics, the MAX3232EIDR remains a key enabler of seamless and efficient data exchange in today’s interconnected world.
