Introduction to the MAX485ESA and Common Issues

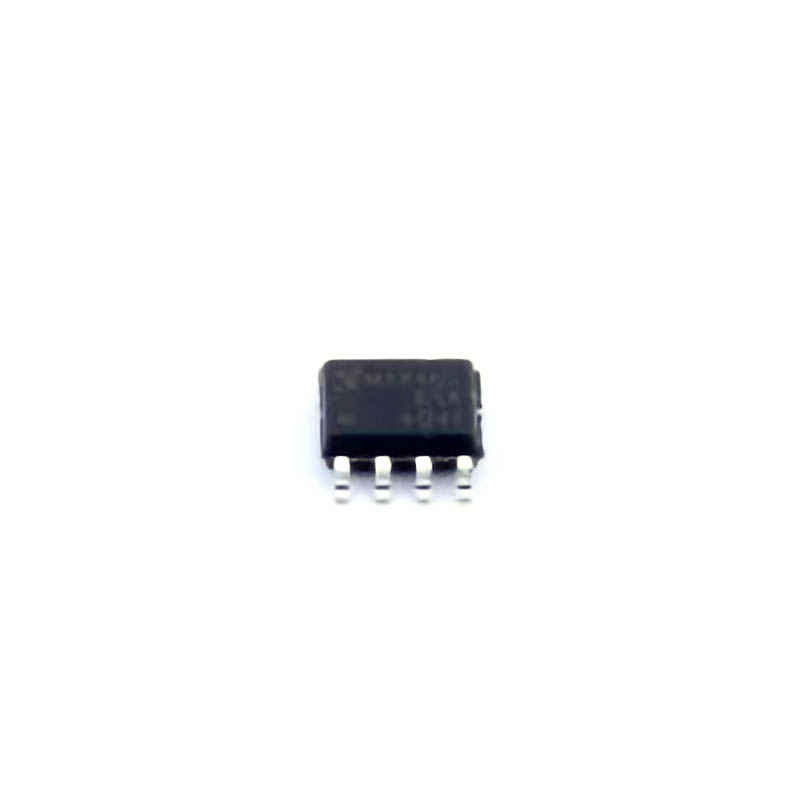

The MAX485ESA is a popular RS-485 transceiver from Maxim Integrated, widely used in industrial communication networks, especially for long-distance data transmission. This compact IC is designed to enable reliable data communication between devices in harsh environments where long cable runs and electrical noise can disrupt communication. However, despite its robustness, users may encounter issues in operation. Understanding these problems and how to troubleshoot them is essential for maintaining a smooth and reliable communication system.
In this article, we’ll cover the most common problems users face when working with the MAX485ESA, how to diagnose these issues, and the solutions that can help you achieve optimal performance.
What is the MAX485ESA?
The MAX485ESA is a half-duplex RS-485 transceiver, meaning it can either send or receive data at a given time but not both simultaneously. It’s often employed in multi-point communication systems, where multiple devices need to communicate with a central controller or a network. This makes it perfect for applications like industrial automation, building control systems, and remote monitoring.
The MAX485ESA operates with low Power consumption, offers robust noise immunity, and supports transmission speeds up to 2.5 Mbps over long cable runs, making it ideal for industrial-grade communication systems. However, like all complex electronics, it can experience issues that can hinder communication quality or cause complete failure.
Common MAX485ESA Troubleshooting Issues
Signal Integrity Problems
One of the most frequent issues in RS-485 communication, including systems using the MAX485ESA, is signal degradation. This can manifest as distorted or incomplete data transmissions, where the received signal does not match the sent data. Signal integrity issues are usually due to poor cabling, long cable lengths, or improper termination.
Incorrect Termination
Proper termination is critical in any RS-485 system. Without it, reflections can occur, leading to data errors. MAX485ESA systems often use a resistor (typically 120Ω) at both ends of the communication line to prevent these issues. Without proper termination, the communication system may experience intermittent failures or consistently poor data quality.
Power Supply Issues
Inadequate or unstable power supplies can also cause the MAX485ESA to malfunction. Power noise, insufficient voltage, or fluctuations in current can lead to unpredictable behavior in the transceiver, resulting in data transmission errors, system crashes, or no communication at all.
Bus Contention or Conflicts
Since RS-485 is a multi-point bus system, improper handling of multiple transmitters can result in bus contention, where two or more devices try to transmit at the same time. This causes collisions and corrupted data. The MAX485ESA needs to be correctly configured to avoid such conflicts.
Improper Baud Rate or Configuration Settings
Another common issue arises when the baud rate or other communication parameters (such as parity or stop bits) are incorrectly configured. The MAX485ESA needs to match the baud rate and settings of the devices it is communicating with. Mismatched settings can lead to garbled data or a complete failure to establish communication.
Troubleshooting Solutions for the MAX485ESA
Now that we have identified some of the most common issues that may arise with the MAX485ESA, let’s explore the steps you can take to troubleshoot and resolve these problems.
1. Ensuring Signal Integrity
To address signal integrity problems, the first step is to check the quality of your cabling. RS-485 signals can be easily affected by cable type, cable length, and layout. When troubleshooting, keep the following tips in mind:
Use twisted-pair cables: Twisted-pair cables are essential for minimizing electromagnetic interference ( EMI ), which can corrupt data transmission. For best results, use high-quality twisted-pair cables designed specifically for RS-485 communication.
Limit cable length: RS-485 supports long distances (up to 4000 feet or 1200 meters), but excessive cable lengths can lead to signal degradation. If you’re experiencing issues, try shortening the cable run or using repeaters to boost the signal over long distances.
Proper grounding: Ensure that your RS-485 network is grounded correctly. Poor grounding can introduce noise and signal degradation, leading to communication errors.
2. Proper Termination and Biasing
RS-485 networks require termination resistors to prevent signal reflections, which can corrupt data. The MAX485ESA’s electrical characteristics need to be supported with appropriate termination:
Add 120Ω resistors: Place a 120Ω resistor at each end of the communication line. This helps to match the impedance of the cable and prevent signal reflections.
Biasing resistors: Sometimes, you may need to add biasing resistors (typically 680Ω) to ensure a known voltage on the bus when no devices are actively transmitting. This helps to prevent floating lines, which can lead to erratic behavior.
Check termination for multi-drop networks: In systems with multiple devices, ensure that only the devices at the ends of the communication bus have the termination resistors. Intermediate devices should not have termination.
3. Power Supply Checks
A stable power supply is crucial for the MAX485ESA to function properly. Follow these steps to ensure that your power source isn’t the root cause of the issue:
Measure voltage levels: Use a multimeter to check the voltage at the power input of the MAX485ESA. Ensure that it is within the acceptable range (typically 5V ±5%).
Check for noise or instability: Power supply noise can cause erratic behavior in communication devices. If you suspect power instability, try using a regulated power supply or adding capacitor s near the power input to filter noise.
Verify proper grounding: Ground loops or improper grounding can introduce noise into the system. Ensure that all components in the communication system are grounded to a common point.
4. Avoiding Bus Contention
Bus contention occurs when two devices try to transmit data at the same time, leading to data collisions. To avoid this:
Use proper driver enable (DE) control: The MAX485ESA has a driver enable pin that must be controlled to allow data transmission. Ensure that only one device is enabled to transmit at a time. For multi-master systems, you may need additional logic to control which device is allowed to transmit.
Implement arbitration or token passing: In systems with multiple transmitters, use an arbitration or token-passing protocol to ensure that only one device is transmitting at any given time. This is essential for maintaining the integrity of the communication channel.
5. Checking Baud Rate and Configuration Settings
One of the simplest yet most common causes of communication failures is a mismatch in baud rate or configuration settings. To resolve this:
Match baud rates: Ensure that the baud rate of the MAX485ESA matches the baud rate of the devices it is communicating with. A mismatch will cause data corruption or failure to establish communication.
Verify data format settings: Double-check the parity, stop bits, and other protocol settings to make sure they align with the rest of the system. Mismatched settings can cause the transceiver to misinterpret incoming data.
Use software or diagnostic tools: Many RS-485 systems offer diagnostic software that can help you verify the configuration of the transceiver. Use these tools to check for configuration mismatches or communication errors.
Conclusion
The MAX485ESA is an essential component in many industrial and communication systems, but like any piece of electronic equipment, it can face challenges. By understanding common issues like signal integrity problems, incorrect termination, power supply instability, bus contention, and baud rate mismatches, you can troubleshoot effectively and restore reliable communication. By following the troubleshooting steps outlined in this article, you’ll be able to ensure that your MAX485ESA transceiver performs optimally, providing stable and accurate data transmission for your systems.
