Understanding the MMBF170LT1G and Common Issues
The MMBF170LT1G is a widely used N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect transistor ) designed primarily for use in high-frequency, low-power applications. Whether you're working in signal processing, amplification, or switching circuits, ensuring the reliable operation of the MMBF170LT1G is paramount. However, like any electronic component, it may face issues over time due to various reasons, such as improper usage, environmental conditions, or manufacturing defects. Understanding the most common problems and troubleshooting them effectively is key to maintaining performance and preventing damage.

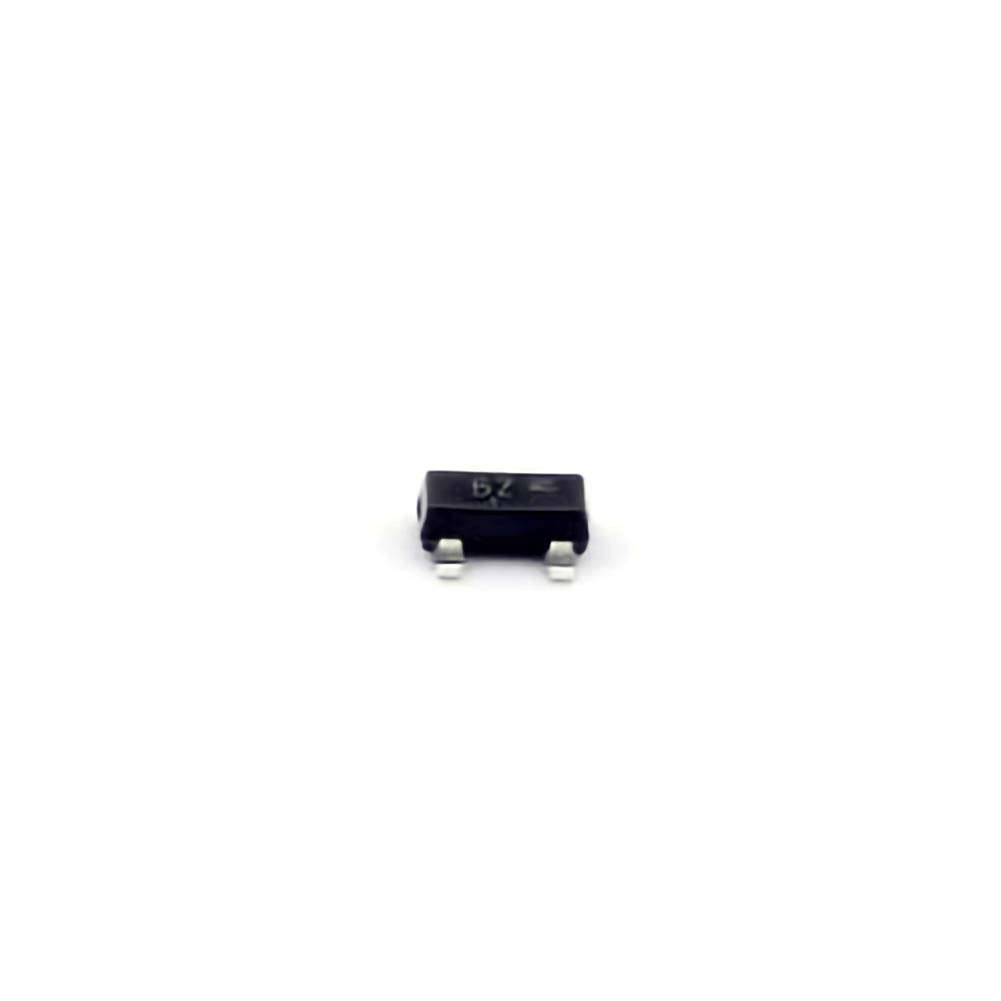

1. Overview of MMBF170LT1G Transistor
Before diving into troubleshooting, it's important to understand the basic functioning and features of the MMBF170LT1G. This component is designed as a low-power, high-speed transistor ideal for small-signal switching and amplification. With a drain-to-source voltage (Vds) of 30V and a gate threshold voltage (Vgs(th)) ranging from 1.0V to 3.0V, the MMBF170LT1G is built to perform reliably in demanding circuits.
While it has a reputation for excellent performance, faults can arise due to misapplications or poor circuit designs. Typical symptoms of issues with this MOSFET may include:
Signal degradation or distortion
Excessive heat generation
Circuit failure or intermittent behavior
Inconsistent switching performance
Understanding the root causes behind these symptoms can help in pinpointing the specific issue with your circuit.
2. Common Issues with MMBF170LT1G
2.1. Overheating and Thermal Runaway
One of the most frequent problems when working with MOSFETs like the MMBF170LT1G is overheating, which can lead to thermal runaway. Thermal runaway occurs when a transistor's temperature increases, causing an increase in current, which in turn raises the temperature even further, leading to a feedback loop that can damage the device permanently.
Symptoms:
The transistor becomes excessively hot to the touch.
In some cases, the circuit may shut down or fail intermittently.
Possible Causes:
Excessive current draw: Overdriving the MOSFET beyond its rated limits can cause excessive heat generation.
Insufficient heat dissipation: Lack of a proper heat sink or inadequate PCB design to dissipate heat.
Improper gate voltage: A gate voltage that is too high or too low can lead to inefficient operation, causing the transistor to heat up.
Solutions:
Ensure that the drain current (Id) does not exceed the maximum ratings specified in the datasheet.
Use a heat sink or ensure adequate cooling measures for high-power applications.
Check the gate voltage to ensure it is within the recommended range. A gate-source voltage (Vgs) that's too high or too low can cause excessive conduction.
Implement thermal management techniques, such as PCB design optimizations (e.g., copper pour for better heat dissipation).
2.2. Poor Switching Performance
The MMBF170LT1G is often used in switching applications, but sometimes users experience issues with its switching characteristics, such as slow switching or inconsistent behavior. This can significantly impact the overall performance of your circuit, especially in high-speed applications.
Symptoms:
Delayed or erratic switching behavior.
Unreliable turn-on or turn-off performance.
Possible Causes:
Inadequate gate drive: The MOSFET requires proper gate drive voltage to switch on and off effectively. Insufficient gate voltage or current can cause slow switching.
Parasitic capacitance: In high-frequency applications, parasitic capacitances from the MOSFET package or layout can affect switching speed.
Incorrect component values: The choice of resistors and capacitor s in the gate drive circuit can impact switching performance.
Solutions:
Ensure that the gate drive circuitry is capable of supplying enough current to fully charge and discharge the gate capacitance.
Use a dedicated gate driver IC if needed to ensure fast switching.
Adjust the gate resistor values to match the needs of your application. Too large a resistor can slow down switching, while too small can cause excessive current draw.
In high-speed circuits, reduce parasitic inductance and capacitance by optimizing the PCB layout and keeping traces short.
2.3. Circuit Misapplication
Sometimes, the issues with the MMBF170LT1G arise not because of a fault in the component itself, but due to its misapplication in the circuit. The transistor is rated for certain voltage, current, and power characteristics, and using it outside these parameters can lead to failure or degraded performance.
Symptoms:
Instability or incorrect behavior in the circuit.
Inconsistent performance when switching between states.
Possible Causes:
Exceeding voltage ratings: The MMBF170LT1G is rated for a maximum Vds of 30V. Applying voltages higher than this can cause breakdown or permanent damage to the transistor.
Wrong gate-source voltage (Vgs): If the Vgs is not within the specified range (1V to 3V for the MMBF170LT1G), the MOSFET may not turn on or off properly, leading to poor performance.
Solutions:
Double-check the voltage and current levels in your circuit to ensure they fall within the transistor's specifications.
Consider using a voltage limiter or clamping diodes to protect the transistor from over-voltage conditions.
Verify that the gate-source voltage (Vgs) is within the recommended range for proper switching.
Advanced Troubleshooting and Repair Solutions for MMBF170LT1G
In the previous section, we discussed some of the more common problems associated with the MMBF170LT1G. However, as with any complex electronic component, problems may sometimes require more advanced troubleshooting techniques. In this section, we will explore diagnostic methods, tools, and repair strategies for addressing issues with the MMBF170LT1G transistor.
3. Using Test Equipment for Diagnosis
To effectively troubleshoot any problems with the MMBF170LT1G, the right diagnostic tools are essential. Having access to high-quality test equipment ensures that the root causes of the issue can be identified quickly, allowing for more effective solutions.
3.1. Multimeter and Oscilloscope
A digital multimeter (DMM) and oscilloscope are two indispensable tools for diagnosing issues with the MMBF170LT1G.
Multimeter: You can use a multimeter to test the continuity between the source, gate, and drain terminals. A high resistance between the drain and source (in the off state) and low resistance between the gate and source (in the on state) indicates that the transistor is likely functioning correctly.
Oscilloscope: For switching applications, an oscilloscope can be used to observe the waveforms at the gate and drain. If the MOSFET is not switching properly, you will notice irregularities such as slow transitions or missing pulses.
3.2. Thermal Imaging
For persistent overheating issues, a thermal camera can help identify hotspots on the transistor or the PCB. By using a thermal imaging camera, you can pinpoint areas where heat is building up, which may indicate faulty components or inadequate heat dissipation.
4. Troubleshooting Steps
4.1. Step-by-Step Diagnosis for Overheating
If you're experiencing overheating with the MMBF170LT1G, follow these steps to diagnose the issue:
Check power ratings: Ensure that the power dissipation in the MOSFET is within safe limits. Review the circuit to ensure that the MOSFET is not being overloaded.
Measure gate voltage: Use a multimeter to confirm that the gate voltage is within the recommended range for proper operation.
Use thermal imaging: If the MOSFET is heating up, use a thermal camera to locate the source of the excess heat. It may be due to inadequate cooling or excessive current.
Improve heat dissipation: Add heat sinks, improve PCB layout, or add cooling fans to reduce the temperature.
4.2. Step-by-Step Diagnosis for Switching Issues
Check gate drive: Measure the gate voltage with an oscilloscope to ensure it's within the proper range and transitioning cleanly.
Check for parasitic capacitance: Review the PCB layout for long traces or high capacitance that may slow down the switching speed.
Adjust gate resistors: If switching is slow, adjust the gate resistance to optimize switching time.
5. Repairing the MMBF170LT1G
While most issues can be fixed through proper circuit design and correct usage, there may be cases where a damaged MOSFET needs to be replaced. When replacing the MMBF170LT1G:
Always ensure you're using a genuine part from a reputable supplier to avoid counterfeit components.
Handle the new component with care to avoid electrostatic discharge (ESD) damage during installation.
If necessary, check your soldering technique to ensure a reliable connection with minimal risk of short circuits.
Conclusion
The MMBF170LT1G is an excellent choice for low-power, high-frequency applications, but like any electronic component, it is susceptible to faults due to improper handling, design errors, or environmental factors. By understanding common issues such as overheating, poor switching performance, and circuit misapplications, and implementing the troubleshooting strategies outlined in this guide, you can diagnose and resolve many of the problems that may arise with this versatile MOSFET.
By using the right diagnostic tools, following a structured troubleshooting approach, and making necessary repairs or design adjustments, you can ensure that your MMBF170LT1G MOSFET operates efficiently and reliably for years to come.
