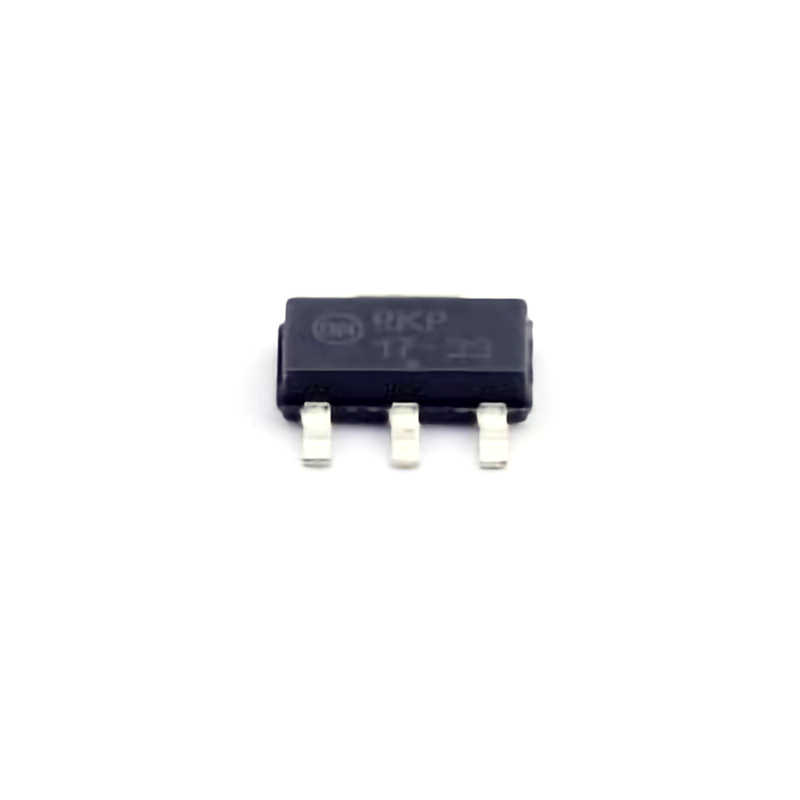

The NCP1117ST33T3G is a popular low dropout voltage regulator widely used in electronic circuits. However, like any other component, it may face issues that could affect its performance. In this article, we explore common problems with the NCP1117ST33T3G and provide solutions to troubleshoot these issues efficiently.
Common Troubleshooting Issues with the NCP1117ST33T3G
The NCP1117ST33T3G is a Low Dropout (LDO) voltage regulator that plays a crucial role in ensuring stable Power supply to sensitive electronic circuits. Its wide usage in a variety of applications, from power supply units to microcontrollers, makes it a critical component in many designs. However, users often encounter issues that can affect the performance of this regulator. In this section, we’ll explore some of the most common problems and how to address them.
1. Overheating of the NCP1117ST33T3G
Problem:
One of the most common problems with the NCP1117ST33T3G is overheating. If the regulator is not able to dissipate heat efficiently, it can cause the component to heat up, leading to thermal shutdown or even permanent damage. This usually occurs when the regulator is required to step down a high input voltage to a lower output voltage while supplying a high load current.
Solution:
To prevent overheating, ensure that the NCP1117ST33T3G is used within its specified operating range. Here are some troubleshooting steps:
Heat Sink or Thermal Pads: If your circuit draws significant current, consider adding a heat sink to the regulator. This will help to disperse heat more effectively. Alternatively, thermal pads or heat-dissipating materials can be used to lower the temperature of the component.
Adequate Ground Plane: Ensure that the regulator is placed on a PCB with a solid ground plane that can help with heat dissipation. A good ground plane aids in the transfer of heat away from the regulator.
Current Limiting: If the current draw is higher than expected, consider reducing the load or using a current-limiting feature in your circuit design.
2. Incorrect Output Voltage
Problem:
Another common issue is when the output voltage of the NCP1117ST33T3G deviates from the expected value. This can be caused by a variety of reasons, including improper input voltage, component failure, or incorrect pin connections.
Solution:
Verify Input Voltage: Ensure that the input voltage is within the specified range for the NCP1117ST33T3G (typically 5V to 15V for a 3.3V output). A lower input voltage than required can cause the regulator to malfunction and not provide the correct output.
Check Pin Connections: Double-check all pin connections on the regulator. The NCP1117ST33T3G has three pins: input, ground, and output. Any misconnection can lead to incorrect output voltages.
capacitor Placement: Make sure that Capacitors are properly placed at the input and output of the regulator. According to the datasheet, the NCP1117ST33T3G recommends an input capacitor of at least 10µF and an output capacitor of at least 10µF to ensure stable operation.
3. Regulator Does Not Start Up
Problem:
The NCP1117ST33T3G may fail to start up, especially if the input voltage is too low or if there are issues with the surrounding circuitry. When this happens, the regulator may not supply any voltage at all to the load.
Solution:
Check Input Voltage: Ensure that the input voltage is higher than the dropout voltage of the regulator. The NCP1117ST33T3G has a dropout voltage of approximately 1.1V under full load. Therefore, if the input voltage is lower than the output voltage plus the dropout voltage, the regulator will not start.
Examine PCB Layout: Check the PCB layout to ensure there is no short circuit or incorrect connection preventing the regulator from starting.
Confirm Capacitor Functionality: Sometimes, faulty capacitors can prevent proper startup. Replace the input and output capacitors to ensure they are functioning as expected.
4. Ripple and Noise on the Output
Problem:
Ripple and noise on the output voltage is another issue that users may encounter when working with the NCP1117ST33T3G. High-frequency noise or fluctuations in the output can affect sensitive components that rely on a clean power supply.
Solution:
Add Capacitors: Adding additional bypass capacitors (typically 0.1µF to 1µF) at the output can help filter out high-frequency noise. Placing these capacitors as close to the output pin as possible is key to improving the output quality.
Use a Low-Pass Filter: For more demanding applications, consider adding an LC (inductor-capacitor) filter on the output to reduce ripple and noise further.
Evaluate Load Conditions: Ensure that the regulator is not supplying power to too many components at once. Excessive load can contribute to ripple, so balance the load distribution.
Advanced Troubleshooting and Solutions for the NCP1117ST33T3G
In this section, we will dive deeper into advanced troubleshooting techniques and solutions for the NCP1117ST33T3G. These solutions are especially useful when the basic checks do not resolve the issues or when you encounter more subtle problems.
5. Inadequate Stability Due to Input/Output Capacitance
Problem:
Sometimes, despite following the manufacturer’s guidelines for input and output capacitance, users may still face stability issues, such as oscillations or unstable voltage regulation.
Solution:
The NCP1117ST33T3G, like many LDO regulators, can be sensitive to the choice of capacitors used for filtering. Ensure that the capacitors you use meet the following criteria:
Low ESR Capacitors: The capacitors used for input and output should have a low equivalent series resistance (ESR) to ensure proper operation. Ceramic capacitors, which typically have low ESR, are generally the best choice.
Capacitor Placement: Place the capacitors as close to the pins of the regulator as possible to minimize inductance and ensure stable operation.
Capacitor Values: While the NCP1117ST33T3G typically requires 10µF capacitors, you may need to experiment with different values to find the optimal stability for your specific application.
6. Dropout Voltage Variations Under Load
Problem:
The dropout voltage of the NCP1117ST33T3G may change depending on the current drawn by the load. If the load current increases significantly, the regulator may no longer maintain a stable output voltage, even if the input voltage is above the expected level.
Solution:
Monitor Load Conditions: If the load current is too high, consider using a more powerful regulator or using multiple NCP1117ST33T3G units in parallel to distribute the load.
Review Input Voltage: Ensure that the input voltage is sufficiently above the output voltage, taking the load current into account. For instance, if the output is 3.3V and the regulator is supplying 1A of current, the input voltage needs to be at least 4.4V to account for the dropout voltage.
7. Device Aging and Degradation
Problem:
Over time, components such as the NCP1117ST33T3G may degrade due to factors like heat, excessive current, and operational stress. This degradation can cause instability, reduced output voltage, or total failure of the regulator.
Solution:
Replace Old Components: If the regulator has been in operation for a long time and shows signs of degradation, consider replacing it with a new one. Keep in mind that electrolytic capacitors, in particular, tend to degrade over time, so replacing capacitors around the regulator might solve some issues.
Regular Maintenance: Periodically check the temperature and load conditions of the regulator, especially in high-stress applications, to catch early signs of degradation before they become significant problems.
8. Insufficient Current Delivery
Problem:
In some cases, users may find that the NCP1117ST33T3G fails to provide enough current to the load, even though the input voltage and other conditions are correct. This can happen if the regulator is not designed for the current required by the application.
Solution:
Calculate Power Needs: Carefully calculate the power requirements of your load and ensure the NCP1117ST33T3G can supply enough current. If necessary, opt for a higher-current LDO or a switching regulator.
Current Limiting Circuit: If the load exceeds the regulator’s current capacity, you might want to include a current-limiting circuit to protect the NCP1117ST33T3G from overloads.
In conclusion, the NCP1117ST33T3G is a reliable and efficient low dropout voltage regulator, but it requires careful attention to detail during design and implementation. By understanding and troubleshooting common problems such as overheating, incorrect output voltage, and inadequate startup conditions, users can ensure that the regulator performs optimally. For more advanced issues like instability, varying dropout voltage under load, and component degradation, implementing the appropriate solutions can extend the lifespan and reliability of the NCP1117ST33T3G in your electronic circuits.
By following these troubleshooting tips and techniques, you can confidently use the NCP1117ST33T3G in a wide range of applications, from simple power supplies to more complex electronic systems.
