Introduction to the NRF52840-QIAA-R SoC

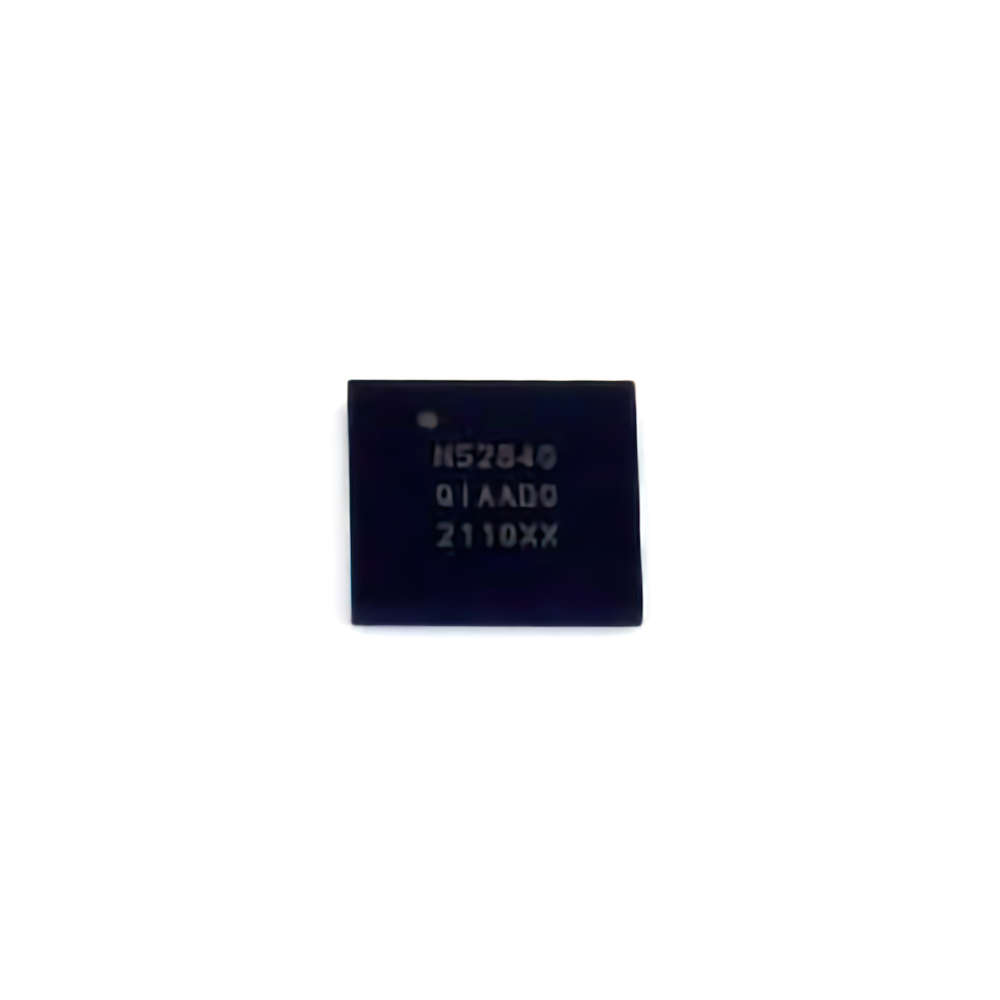

The NRF52840-QIAA-R is a highly versatile and Power ful Bluetooth System-on-Chip (SoC) developed by Nordic Semiconductor. It is primarily used in applications that require low power consumption, long-range Bluetooth connectivity, and rich processing power. With an ARM Cortex-M4 CPU, 1MB flash, and 256KB RAM, the chip is ideal for developing applications such as wearables, health devices, industrial sensors, and IoT solutions.
Despite its popularity and impressive specifications, engineers and developers may occasionally encounter challenges while working with the NRF52840-QIAA-R. These issues may arise during the hardware setup, firmware development, or Bluetooth connectivity. Understanding how to troubleshoot common issues is essential for ensuring smooth development and reducing project delays.
In this article, we’ll walk through the most common NRF52840-QIAA-R problems and offer practical solutions to help you address them effectively.
Common NRF52840-QIAA-R Troubleshooting Issues
1. Bluetooth Connectivity Problems
One of the most frequent issues when working with the NRF52840-QIAA-R is poor or unstable Bluetooth connectivity. The NRF52840 SoC supports Bluetooth 5.0, which offers long-range and high-speed data transfer, but various factors can hinder Bluetooth performance.
Possible Causes:
Interference from other devices operating on the 2.4GHz frequency range.
Incorrect antenna placement or malfunctioning antenna.
Incorrect advertising settings or Bluetooth stack configuration.
Firmware bugs or issues in the Bluetooth stack.
Power supply instability or low battery voltage.
Solutions:
Reduce Interference: Ensure that your Bluetooth device is not placed near other devices that may cause interference, such as microwaves, Wi-Fi routers, or other Bluetooth devices operating in close proximity.
Optimize Antenna Placement: The positioning of the antenna can significantly affect Bluetooth performance. Ensure that the antenna is not obstructed by metallic objects or placed too close to other electronic components.
Check Advertising Parameters: Verify that your advertising settings are correctly configured. Adjust parameters such as advertising interval, advertising power, and advertising channels to find the optimal balance between range and power consumption.
Debug Bluetooth Stack: If the Bluetooth stack is experiencing issues, updating to the latest version of the Nordic SDK (Software Development Kit) may help resolve the issue. Additionally, use the Nordic nRF Connect tool to debug the Bluetooth connection and check for firmware bugs.
Stabilize Power Supply: Check that your power supply is providing a stable voltage and sufficient current for the NRF52840 to operate correctly. Unstable power can lead to erratic Bluetooth behavior and cause frequent disconnections.
2. Power Consumption Issues
Given the NRF52840’s focus on low power consumption for battery-operated devices, improper power management can lead to rapid battery depletion, making the device less efficient.
Possible Causes:
The chip not entering low-power sleep modes when idle.
Inadequate power management configuration in the firmware.
Peripherals or other components consuming excess power.
Solutions:
Enable Power Saving Modes: Make sure that the chip is configured to use low-power modes like the System ON and System OFF modes. The chip should automatically enter these modes when idle, reducing overall power consumption.
Check Peripherals and External Components: If you have peripherals connected to the NRF52840, such as sensors, displays, or external module s, ensure they are also correctly configured for power saving. Some peripherals may not automatically enter low-power modes, consuming more current than necessary.
Optimize Firmware for Power Efficiency: Use Nordic's low-power libraries to optimize your firmware for power-saving features. For example, use low-power event handling and avoid keeping the processor in active mode for longer than necessary.
3. Firmware Crashes and Unexpected Reboots
Frequent crashes or unexpected reboots are another common issue when working with the NRF52840. These can occur due to firmware bugs, stack overflows, or improper hardware setup.
Possible Causes:
Stack overflows or memory corruption due to poor resource management in the firmware.
Conflicts between the SoftDevice and user application code.
Peripheral initialization failures or improper configuration.
Invalid or unhandled interrupts.
Solutions:
Check for Stack Overflow: Use debugging tools to check for stack overflows or memory corruption. The Nordic SDK includes debugging features to help detect these issues. Increase stack size if necessary or move certain functions to lower-priority tasks.
Isolate SoftDevice and Application Code: The SoftDevice is a Bluetooth stack that runs alongside your application. Make sure the SoftDevice is properly initialized, and that application code does not conflict with it. Use the SDK’s pre-defined modules and examples to guide your application development.
Check Peripheral Initialization: Double-check your peripheral initialization routines to ensure there are no conflicts or missing configurations. Uninitialized peripherals can lead to system instability or reboots.
Interrupt Handling: Make sure that all interrupts are properly handled. Unhandled interrupts can cause the system to crash, and using the nRF52840’s interrupt priority management features can help mitigate this problem.
4. Communication Errors with Peripherals
The NRF52840-QIAA-R is often used in systems with various peripherals such as sensors, displays, and actuators. Communication issues between the SoC and these peripherals can lead to device malfunction or failure to collect data properly.
Possible Causes:
Incorrect I2C/SPI/UART configurations.
Timing mismatches between the master and slave devices.
Poor quality of signal or noisy connections.
Missing or incorrect pull-up/down resistors in the circuit.
Solutions:
Check Bus Configurations: Verify that the I2C, SPI, or UART configurations are correctly set up. Ensure that the correct clock speeds, data formats, and addressing modes are used for the communication protocol.
Timing Adjustments: Sometimes, peripherals require specific timing conditions for successful communication. You can adjust the timing parameters, such as the clock frequency or setup/hold times, to match the requirements of the peripheral.
Improve Signal Quality: Use proper PCB layout techniques to minimize noise, such as ensuring that signal lines are kept short, using proper ground planes, and shielding sensitive signal lines. Additionally, ensure that pull-up or pull-down resistors are correctly placed in the circuit.
Check Peripheral Power Requirements: Some peripherals may require a higher supply voltage than what the NRF52840 is providing. Make sure that the power supply to the peripheral is stable and within the recommended range.
5. Programming and Flashing Issues
Flashing the NRF52840 can sometimes result in errors that prevent the device from running the correct firmware. This may manifest as failed programming, device lock-ups, or the inability to communicate with the device via the debugger.
Possible Causes:
Corrupted firmware in the flash memory.
Improper connections during programming.
Insufficient power during programming.
Incorrect or outdated programming tools or drivers.
Solutions:
Use the Correct Programmer: Ensure that you are using a supported programmer or debugger, such as the J-Link debugger, and that it is properly connected to the NRF52840.
Re-Flash the Device: If the firmware is corrupted, you may need to re-flash the device using the nRF Programmer Tool or nRF Connect for Desktop. Make sure the chip is in bootloader mode if necessary.
Check Power Supply During Flashing: Ensure that the NRF52840 is receiving sufficient power during the flashing process. An unstable or low voltage may cause incomplete or failed programming attempts.
Update Programming Tools: Always use the latest version of the Nordic SDK, the flashing software, and any associated drivers. Updating to the latest versions can often resolve compatibility issues and improve programming reliability.
Conclusion
The NRF52840-QIAA-R is an incredibly powerful and flexible chip, but like all complex systems, it can present challenges during development. By understanding the common issues that developers face — such as Bluetooth connectivity problems, power consumption concerns, firmware crashes, and peripheral communication errors — and implementing the right troubleshooting techniques, you can ensure that your project runs smoothly.
Through careful debugging, proper configuration, and optimized firmware, you can avoid or resolve most of the issues associated with the NRF52840-QIAA-R. Nordic Semiconductor also offers a wide range of resources, including detailed documentation, community forums, and technical support, which can be invaluable when troubleshooting complex issues.
By following the solutions outlined in this article, you’ll be well-equipped to tackle the common challenges associated with this popular Bluetooth SoC and take full advantage of its capabilities in your next development project.
