This article explores the optimization and practical applications of the AD8656ARMZ , a precision operational amplifier, in high-precision amplifier circuits. It discusses key features, benefits, and provides example circuit analyses to guide engineers in achieving superior performance in their designs.
AD8656ARMZ, high-precision amplifier, operational amplifier, circuit optimization, low noise, ultra-low offset, precision electronics, analog design, signal amplification.
The AD8656ARMZ: Key Features and Optimization in High-Precision Amplifier Circuits
In the world of analog electronics, precision and reliability are paramount. When designing high-performance amplifier circuits, engineers are continually searching for components that can deliver exceptional accuracy while minimizing noise and distortion. One such component that stands out in high-precision amplifier applications is the AD8656ARMZ, a state-of-the-art operational amplifier developed by Analog Devices.
This first part of the article will provide an overview of the AD8656ARMZ’s key features, focusing on its suitability for high-precision circuits. It will also explore how to optimize this amplifier for maximum performance in various applications.
Key Features of the AD8656ARMZ Operational Amplifier
The AD8656ARMZ is a precision, low-noise, rail-to-rail input/output op-amp that delivers exceptional performance in applications demanding high accuracy and low error. Below are some of the key features that make the AD8656ARMZ an ideal choice for high-precision amplifier circuits:
Ultra-Low Input Offset Voltage
One of the most critical specifications for precision op-amps is input offset voltage. The AD8656ARMZ boasts an ultra-low input offset voltage of less than 25 µV (typical), making it highly suitable for applications requiring high accuracy. This low offset voltage minimizes drift and error in sensitive circuits.
Low Input Bias Current
The AD8656ARMZ features a low input bias current (maximum 1 pA), which ensures that there is minimal interference with the signal being amplified. This is especially important in circuits where high impedance sources are involved, as even tiny bias currents can lead to significant signal distortion.
Low Noise Performance
Noise can be a significant problem in precision circuits, as it introduces errors and degrades the quality of signals. The AD8656ARMZ is designed with low noise characteristics, offering a low noise density of 2.2 nV/√Hz at 1 kHz. This feature ensures that the amplifier provides clean and stable output, even in environments with low signal levels.
Wide Operating Voltage Range
The AD8656ARMZ can operate over a wide supply voltage range (2.7V to 40V), making it versatile for various applications. Its rail-to-rail input and output capabilities also ensure that the amplifier can be used with a wide variety of signal levels and Power supplies, making it suitable for both single-supply and dual-supply designs.
High Precision and Low Drift
The AD8656ARMZ is built to offer low drift, maintaining its performance characteristics over time and temperature variations. This is especially valuable in precision measurement systems where stable performance is required for extended periods.
Compact Package and Low Power Consumption

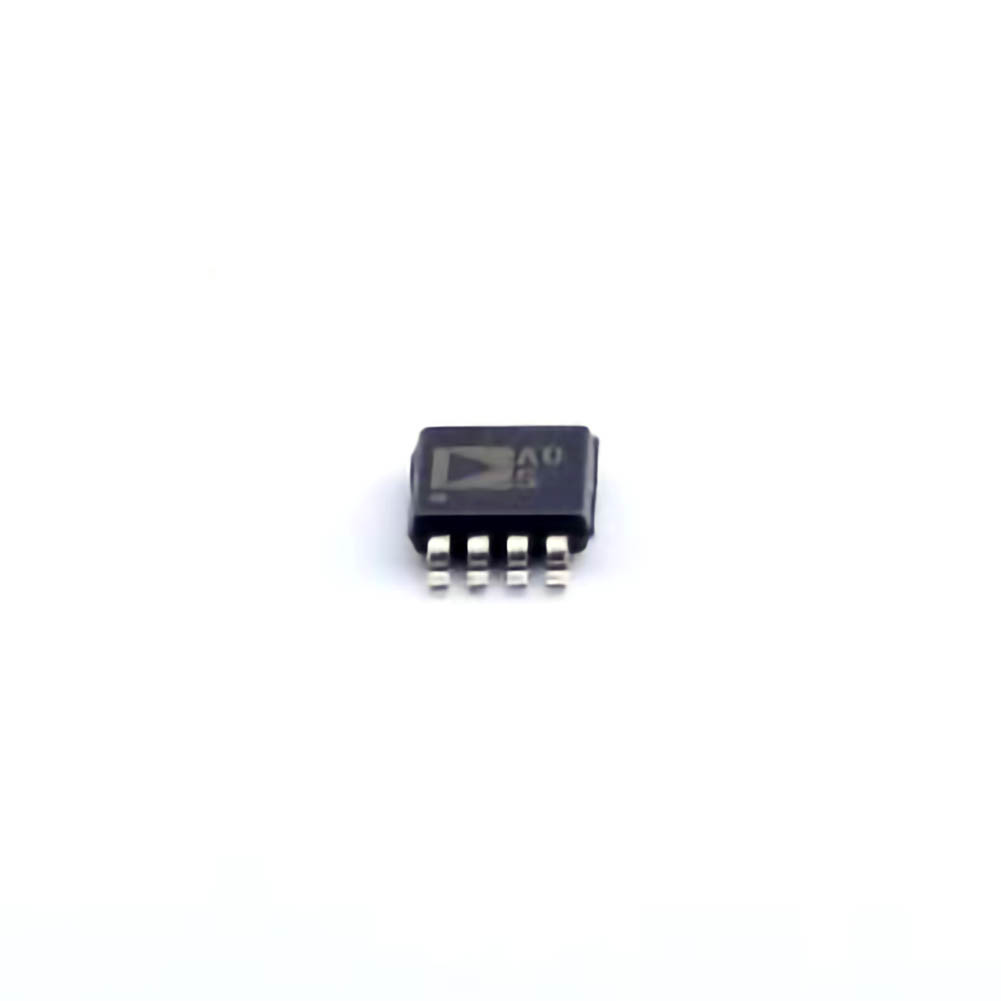

This operational amplifier is available in a small, surface-mount package, making it suitable for compact designs. Additionally, its low power consumption ensures that it can be used in battery-operated devices without significantly draining power.
Optimizing the AD8656ARMZ in High-Precision Circuits
To get the best performance out of the AD8656ARMZ, engineers need to carefully optimize their circuits. Below are several key strategies for ensuring maximum precision and reliability when using the AD8656ARMZ:
Minimizing PCB Noise and Interference
In high-precision amplifier designs, external noise can significantly degrade the performance of the circuit. To minimize this, it is crucial to carefully lay out the PCB to reduce noise pickup. Keep sensitive signal traces as short as possible and use ground planes to isolate high-current paths from the signal path. Additionally, ensure that decoupling capacitor s are placed close to the op-amp’s power supply pins to filter out high-frequency noise.
Using Proper Power Supply Decoupling
The AD8656ARMZ’s performance can be negatively impacted by power supply noise. To mitigate this, engineers should use bypass capacitors (typically 0.1 µF ceramic and 10 µF tantalum) placed as close to the op-amp’s power supply pins as possible. This helps filter out any power supply fluctuations that might influence the amplifier’s performance.
Thermal Management
Although the AD8656ARMZ is known for its low drift and stable performance over temperature, excessive heating can still cause drift over time. Proper thermal Management should be employed by ensuring that the device is not subjected to excessive temperatures. Using heat sinks or placing the device in thermally optimized locations on the PCB can help maintain consistent performance.
Optimizing Feedback Networks
For optimal performance, it is essential to design the feedback network of the amplifier correctly. The feedback resistors should be chosen to provide the required gain while maintaining stability. Furthermore, using low-noise resistors in the feedback path will help minimize noise contributions to the amplified signal.
Precision in External Components
In high-precision circuits, the external components (such as resistors and capacitors) used with the AD8656ARMZ must also have tight tolerances to maintain the overall performance of the circuit. Use precision resistors (e.g., 0.1% tolerance or better) and low-ESR capacitors to ensure that the amplifier circuit delivers the desired performance.
Applications of the AD8656ARMZ in High-Precision Amplifier Circuits
The AD8656ARMZ is highly versatile and finds applications in a wide range of precision analog circuits. Some of the key areas where this amplifier excels include:
Precision Signal Conditioning
The AD8656ARMZ is ideal for signal conditioning in measurement and Instrumentation systems. Its ultra-low offset and low noise characteristics make it perfect for amplifying weak signals with minimal distortion, ensuring accurate readings in sensitive applications such as Sensor interface s and analog-to-digital conversion.
Low-Noise Audio Amplifiers
Due to its low noise density, the AD8656ARMZ is an excellent choice for high-fidelity audio amplifiers where signal integrity is critical. It can amplify audio signals without introducing unwanted noise or distortion, providing high-quality sound reproduction.
Precision Measurement Systems
High-precision systems such as voltmeters, oscilloscopes, and other instrumentation devices benefit from the AD8656ARMZ’s accurate amplification. Whether in a feedback loop or as part of an instrumentation amplifier circuit, this op-amp ensures that the system maintains high accuracy across a wide range of input signals.
Industrial Automation and Control
In industrial applications where precise control and measurement are required, the AD8656ARMZ helps ensure that the feedback and measurement circuits provide accurate results. It is commonly used in automated testing, process monitoring, and control systems.
Example Circuit Analysis Using the AD8656ARMZ in High-Precision Applications
In this second part of the article, we will delve into a few practical examples of how the AD8656ARMZ can be used in high-precision amplifier circuits. These examples will illustrate the optimization techniques discussed earlier and showcase how this op-amp can be integrated into real-world applications for optimal performance.
Example 1: Low-Noise Instrumentation Amplifier for Sensor Signal Conditioning
In many high-precision applications, sensor signals must be amplified for further processing. These sensors typically produce very low-level signals, which need to be amplified without adding noise or distortion. A common example is the use of thermocouples in temperature measurement systems.
To amplify the small voltage signal from a thermocouple without introducing significant noise, a precision instrumentation amplifier circuit is required. The AD8656ARMZ can be used as a building block for such an amplifier.
Circuit Design:
Op-Amp Configuration: Use two AD8656ARMZ op-amps in a differential amplifier configuration to amplify the differential signal from the thermocouple.
Resistor Selection: Choose precision resistors with 0.1% tolerance for the feedback network to maintain accurate gain.
Noise Minimization: Place the op-amps on a PCB with a solid ground plane to minimize noise pickup. Use decoupling capacitors (0.1 µF and 10 µF) near the power supply pins of each op-amp to reduce power supply noise.
Thermal Management: Ensure that the circuit is not exposed to significant temperature changes to prevent drift in the sensor readings.
This configuration allows the thermocouple signal to be amplified cleanly, ensuring high-accuracy temperature measurements.
Example 2: Precision Audio Amplifier for High-Fidelity Audio Systems
In high-fidelity (hi-fi) audio systems, the goal is to amplify audio signals without introducing noise or distortion. The AD8656ARMZ is an excellent choice for this application due to its low noise and ultra-low offset.
Circuit Design:
Op-Amp Configuration: Use a single AD8656ARMZ in a non-inverting amplifier configuration with a feedback resistor network to set the gain.
Component Selection: Use low-ESR capacitors and precision resistors to ensure the signal path remains clean and free from distortion.
Noise Isolation: Keep the signal traces short and use ground planes to minimize noise coupling from other circuit sections.
Power Supply: Use a dual-supply (±12V) to maximize the amplifier’s headroom and prevent clipping at higher input levels.
This amplifier design delivers clear, high-fidelity audio amplification with minimal noise, making it ideal for high-end audio systems.
Example 3: High-Precision Voltage Follower for Buffering
Another application where the AD8656ARMZ excels is in providing low-impedance buffering for high-precision circuits. A voltage follower configuration, or unity-gain buffer, can be used to isolate different stages of a circuit while maintaining signal integrity.
Circuit Design:
Op-Amp Configuration: The AD8656ARMZ is configured as a voltage follower, with the output connected directly to the inverting input.
Impedance Matching: This configuration ensures that the voltage signal is accurately transferred to the next stage without loading the source.
Decoupling: Proper decoupling capacitors are used to filter any power supply noise that could affect the buffer’s performance.
This configuration is used in precision analog systems that require isolation and low-noise buffering between various stages.
In conclusion, the AD8656ARMZ is a versatile and high-performance operational amplifier that excels in a wide range of high-precision applications. By optimizing circuit layout, component selection, and power supply filtering, engineers can achieve outstanding results with this op-amp. Whether used in instrumentation, audio systems, or sensor signal conditioning, the AD8656ARMZ is an ideal choice for those demanding the highest levels of precision and reliability.
