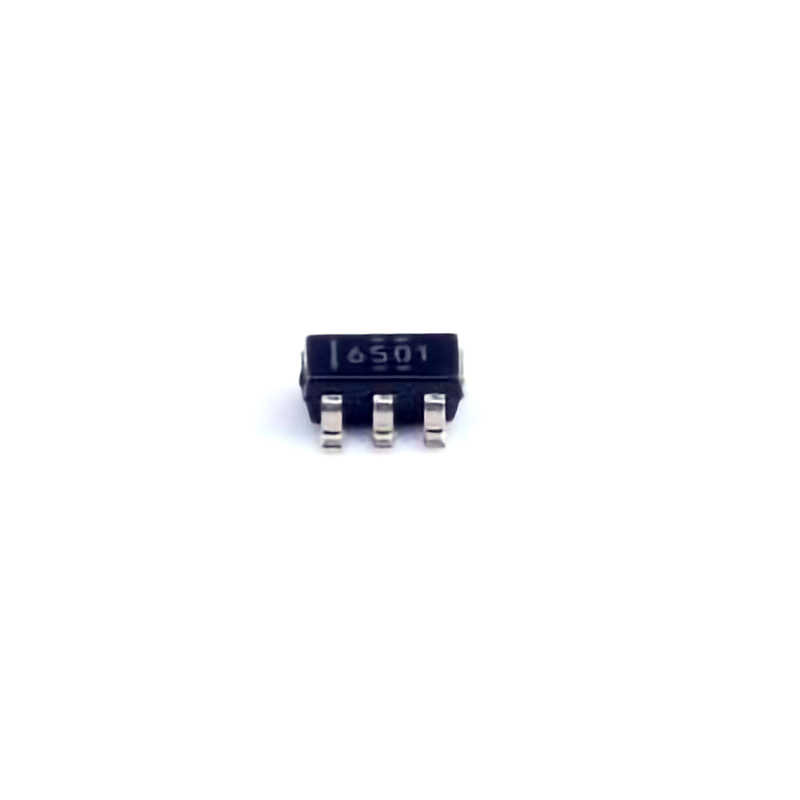

The SN6501DBVR is a highly regarded device in many engineering applications, primarily known for its role in Power isolation and signal integrity. As an isolated power supply and signal converter, the SN6501DBVR is essential in fields like industrial control systems, medical devices, and telecommunications. However, as with any sophisticated electronic component, engineers can encounter several issues during implementation. Understanding common troubleshooting techniques can significantly improve performance and prevent potential failures.
1. Power Supply Issues
One of the most common problems users encounter when working with the SN6501DBVR is power supply-related. This chip operates from a 3V to 5.5V input range, and maintaining a stable power supply is critical for its performance. Fluctuations, voltage drops, or improper power delivery to the device can result in erratic behavior, including loss of data integrity and improper operation of the isolation function.
Solution:
Ensure that your input voltage is within the specified range. Using a quality low-dropout regulator (LDO) or a stable DC power supply can mitigate issues with power instability. Additionally, use capacitor s near the input and output pins as recommended in the datasheet to filter noise and provide smooth voltage. A typical configuration would involve a 10µF ceramic capacitor at the input and a 1µF ceramic capacitor at the output for stable performance.
2. Incorrect Grounding
Another critical factor for ensuring the SN6501DBVR works efficiently is grounding. Improper grounding can lead to performance degradation, including signal noise, voltage fluctuations, or even device failure. The chip relies on a well-established ground reference between its input and output sides.
Solution:
Always ensure that the ground pins are correctly connected and that the ground loops are avoided. A single ground plane should be used for both the input and output sides if possible. In more complex circuits, star grounding can be used to avoid shared return paths that might cause noise interference.
3. Improper Pin Connections
The SN6501DBVR, like most integrated circuits, has specific pins for certain functions, including the input, output, and ground pins. One of the most frequent issues engineers face during development is improper pin connections, which may cause the device to malfunction or fail to work altogether. This includes connecting pins to the wrong voltage levels or not following the recommended layout.
Solution:
Before powering up your system, always double-check your connections. The datasheet provides a clear outline of pin functions. Ensure that the input and output sides are isolated as per the design specifications, with the VDD and GND pins properly configured. Using a proper PCB layout tool will help minimize the risk of pin misconfigurations.
4. Faulty Output Signal
A common issue is when the output signal is not consistent or fails to transmit data correctly. The SN6501DBVR is designed to provide clean and noise-free output, but if there’s an issue with the output signal, it could be due to various factors such as external interference, improper component selection, or incorrect layout.
Solution:
To address this issue, check the integrity of the signal traces and ensure that they are not too long, as long traces can pick up electromagnetic interference ( EMI ). Additionally, ensure that the output load is within the specifications of the chip, and that the component values of any external filters are correctly chosen. For noise suppression, use ferrite beads and proper filtering techniques to reduce external interference.
5. Overheating
Overheating is another problem that can cause the SN6501DBVR to malfunction. Like any electronic component, excessive heat can affect the performance and lifetime of the device. The SN6501DBVR, while designed to be efficient, can overheat if there is insufficient heat dissipation or if the device is running at high load for extended periods.
Solution:
To prevent overheating, ensure that the chip is operating within its recommended thermal limits. Use adequate PCB heat dissipation techniques, such as adding copper pours for better thermal management or using heat sinks for high-power applications. Also, ensure that the ambient temperature is within the recommended range as specified in the datasheet.
6. EMC and Signal Integrity Issues
Electromagnetic compatibility (EMC) and signal integrity are critical concerns in high-speed circuits. Given that the SN6501DBVR is often used in environments with high-frequency signals, it's essential to ensure that the device maintains proper signal integrity and does not emit excessive electromagnetic interference (EMI).
Solution:
To minimize EMI, use the recommended decoupling capacitors and ensure that the PCB layout follows best practices to reduce noise. Keep the input and output traces as short and direct as possible. Use ground planes and shielding to prevent EMI from affecting the chip or other sensitive components in the system. Additionally, ensure that the output impedance is correctly matched to the load, as mismatches can lead to signal distortion.
7. Input Capacitor Selection
Another frequent issue engineers face when using the SN6501DBVR is improper selection of input capacitors. The datasheet provides recommendations for capacitor values, but not adhering to these guidelines can result in poor performance, including unstable operation or noise.
Solution:
Ensure that the input capacitor matches the specifications in the datasheet. Typically, a 10µF ceramic capacitor should be used, but the specific value may vary depending on the application and system requirements. The capacitor should have low ESR (equivalent series resistance) and should be placed as close to the VDD pin as possible to ensure smooth voltage regulation.
8. Output Load Overload
Excessive load on the output side of the SN6501DBVR can cause a drop in voltage or current, leading to improper performance or even damage to the chip. It's important to ensure that the load is within the recommended range for the device.
Solution:
Carefully calculate the output load to ensure it does not exceed the specified limits. If the load current is too high, consider using a buffer or additional driver to handle the excess current. Additionally, using current-limiting resistors or fuses can help protect the device from potential damage.
9. Compatibility with External Components
In some designs, the SN6501DBVR may interact with other external components that could introduce issues, such as incompatible logic levels, incorrect timing, or improper voltage levels. These interactions can lead to malfunction or even device damage.
Solution:
To avoid compatibility issues, always verify that the external components interacting with the SN6501DBVR are correctly matched in terms of voltage levels, signal timing, and load characteristics. Use logic level shifters if necessary, and carefully review the datasheet to ensure compatibility with other components in the system.
10. Debugging Tips
When troubleshooting issues with the SN6501DBVR, it’s essential to follow a systematic debugging approach. Start by verifying the power supply and grounding. Next, check the signal integrity and output behavior using an oscilloscope or logic analyzer. Finally, ensure that all component values and configurations adhere to the recommended design guidelines from the datasheet.
Solution:
Use an oscilloscope to analyze the input and output signals for any abnormalities. Measure the voltage levels at key points, such as the VDD pin, the ground pin, and the output. Also, take time to review your circuit design and verify that all components are within specification. Consulting the datasheet regularly is essential to ensure that your design aligns with the recommended operating conditions.
Conclusion:
The SN6501DBVR is a powerful and versatile component that plays a crucial role in power isolation and signal integrity applications. However, to maximize its performance and reliability, it is essential to address common issues like power supply instability, improper grounding, signal integrity problems, and thermal management. By following the best practices outlined in this guide, engineers can effectively troubleshoot and resolve potential issues, ensuring that their designs perform optimally and reliably in demanding environments. Properly troubleshooting and understanding the limitations of the SN6501DBVR will ultimately lead to a more stable and robust system, making it a valuable component in modern electronic designs.
