Understanding the SN74LVC1G123DCTR and Common Issues

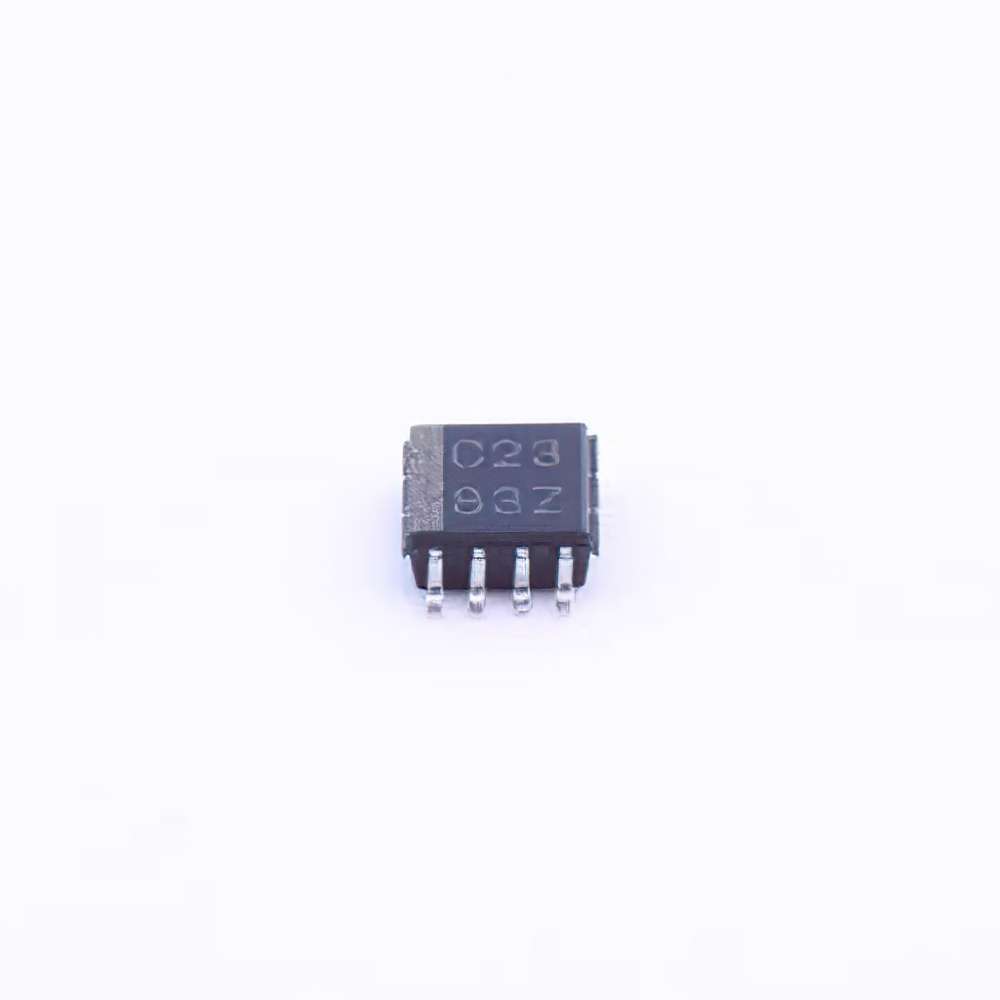

The SN74LVC1G123DCTR is a highly efficient, low-voltage monostable multivibrator IC from Texas Instruments. Designed for use in digital circuits, this IC is primarily used to generate precise pulses or time delays, making it a key component in applications ranging from timers and pulse-width modulation (PWM) to frequency generation and signal processing. With its ease of use, it has become a go-to choice for engineers working on both low- and high-speed circuits.
Despite its reliability, the SN74LVC1G123DCTR can experience a range of issues during design, testing, or field deployment. These issues can arise from a variety of factors, including incorrect wiring, improper voltage levels, signal integrity problems, or component failures. Understanding these common issues and their solutions can help engineers troubleshoot the device more efficiently and avoid costly redesigns or delays.
1. Incorrect Triggering Behavior
One of the most common issues with the SN74LVC1G123DCTR is incorrect triggering behavior, where the device fails to generate the expected pulse width or doesn't trigger at all.
Possible Causes:
Insufficient Trigger Pulse Width: The SN74LVC1G123DCTR requires a minimum width for the trigger pulse to operate correctly. If the input signal’s pulse width is too short, the device may not respond or fail to generate a pulse.
Incorrect Threshold Voltage: The logic levels for triggering might not align with the expected input voltage levels for high or low states.
Solution:
Ensure Adequate Pulse Width: Make sure that the trigger pulse width is at least as long as the minimum required for proper triggering. This is typically around 20ns for the SN74LVC1G123DCTR, but always refer to the datasheet for exact specifications.
Check Logic Levels: Verify that the input logic levels match the device’s requirements. If your logic levels are not within the specified range (0V to 5V for LVC series), you may need to use level shifters or appropriate pull-up/pull-down resistors to ensure reliable triggering.
2. Overvoltage or Undervoltage at Supply Pins
Another issue users frequently encounter is related to the Power supply voltages. When the supply voltage is not within the correct range, the IC can malfunction or even get permanently damaged.
Possible Causes:
Overvoltage: Applying a voltage higher than the recommended range (e.g., 6V for the LVC series) can damage the IC’s internal circuitry.
Undervoltage: A lower voltage can cause the IC to fail to operate at its intended specifications, leading to erratic behavior or failure to trigger pulses.
Solution:
Check Power Supply Voltage: Ensure that the power supply voltage is within the recommended range of 2V to 5.5V, as specified by the datasheet. Voltage fluctuations outside this range can lead to instability or damage.
Use Voltage Regulators : If you are working in an environment where the voltage supply is not stable, consider using a voltage regulator to ensure a constant voltage.
3. Glitches or Spurious Pulses
Another issue with the SN74LVC1G123DCTR is the generation of unwanted glitches or spurious pulses. This can interfere with the overall functionality of the circuit and lead to unpredictable results.
Possible Causes:
Signal Noise: Noise from surrounding circuits or improperly shielded wiring can interfere with the trigger signal, causing glitches.
Improper Timing capacitor Selection: The SN74LVC1G123DCTR relies on external components, particularly Capacitors , to define the pulse width. Incorrect capacitor values can lead to incorrect or inconsistent pulse generation.
Solution:
Minimize Signal Noise: Use proper decoupling capacitors on the power supply pins and ensure that sensitive signal paths are properly shielded from noise. It’s also a good idea to keep the trigger input as short as possible to minimize the impact of external noise.
Use Correct Timing Capacitors: Refer to the datasheet for the recommended capacitor range for your desired pulse width. Using incorrect timing capacitors can lead to improper pulse generation. Ensure that you use a stable, high-quality capacitor with the proper value for your application.
Advanced Troubleshooting and Best Practices for SN74LVC1G123DCTR
While the previous section discussed common troubleshooting steps for the SN74LVC1G123DCTR, there are additional advanced techniques and best practices that can help users ensure the IC’s optimal performance in more complex designs.
4. Improper Pulse Width Adjustment
Some users may find that the pulse width produced by the SN74LVC1G123DCTR is not adjustable within the expected range, or that the pulse width does not match the values calculated.
Possible Causes:
Incorrect Resistor and Capacitor Values: The pulse width of the monostable multivibrator is determined by external resistors and capacitors. Any error in selecting these components can cause the pulse width to be longer or shorter than expected.
Temperature Variations: The characteristics of resistors and capacitors can change with temperature, which may affect the accuracy of the timing circuit.
Solution:
Use Precision Components: To ensure consistent pulse width, use precision resistors and capacitors. Tolerance variations in resistors and capacitors can lead to noticeable changes in the pulse width.
Temperature Compensation: For high-precision applications, consider using temperature-compensated components or designing a circuit that accounts for temperature variations to maintain stable timing performance.
5. Signal Integrity Issues
Signal integrity issues can arise when the output signal from the SN74LVC1G123DCTR is not clean, or when there is a delay between the input trigger and output pulse. This is particularly important when the IC is used in high-speed circuits.
Possible Causes:
Excessive Trace Lengths: Long traces on a PCB can introduce signal delays and cause reflection or crosstalk between signals.
Inadequate Grounding: Poor grounding can lead to unwanted noise or instability in the circuit.
Solution:
Shorten Trace Lengths: Whenever possible, keep trace lengths short and use thicker traces to reduce resistance and inductance. This will help maintain signal integrity and reduce propagation delays.
Improve Grounding: Ensure that the ground plane on your PCB is solid and continuous, with minimal impedance. Use decoupling capacitors close to the power supply pins to filter out high-frequency noise.
6. Device Aging and Reliability Issues
Like all electronic components, the SN74LVC1G123DCTR may experience degradation over time, leading to reliability issues, especially in high-temperature environments or with continuous use.
Possible Causes:
Component Wear: Over time, the internal circuitry of the IC may degrade, leading to reduced performance or failure.
Thermal Stress: Excessive heat can accelerate aging in the device, causing it to malfunction or behave erratically.
Solution:
Monitor Operating Conditions: Ensure that the device is operating within the recommended temperature range (–40°C to 85°C) and that it is not exposed to excessive thermal stress. Use heat sinks or thermal management techniques if necessary.
Consider Using a Higher-Rated Part: If you need a component for a high-reliability application, consider using a higher-rated IC designed for industrial or automotive environments. These parts are usually tested for more extreme conditions and have better longevity.
7. Debugging with Simulation Tools
For complex circuits or when working with larger systems that include the SN74LVC1G123DCTR, it can be difficult to pinpoint the exact cause of a failure. In such cases, simulation tools can be invaluable.
Solution:
Use SPICE Simulators: Tools like SPICE simulators allow you to model your circuit and identify potential issues before hardware testing. Simulating your circuit can help you understand the behavior of the SN74LVC1G123DCTR in various scenarios and fine-tune the design to avoid problems.
In conclusion, the SN74LVC1G123DCTR is a highly reliable IC for generating precise timing pulses and delays. However, like any electronic component, it can encounter problems related to triggering behavior, voltage supply, signal integrity, and component selection. By following these troubleshooting tips and best practices, you can maximize the performance and reliability of your circuit and avoid common pitfalls. With a bit of care and attention to detail, you can ensure that your designs incorporating the SN74LVC1G123DCTR will be robust and dependable in any application.
