Common Issues with STM32F030C8T6 and Their Troubleshooting

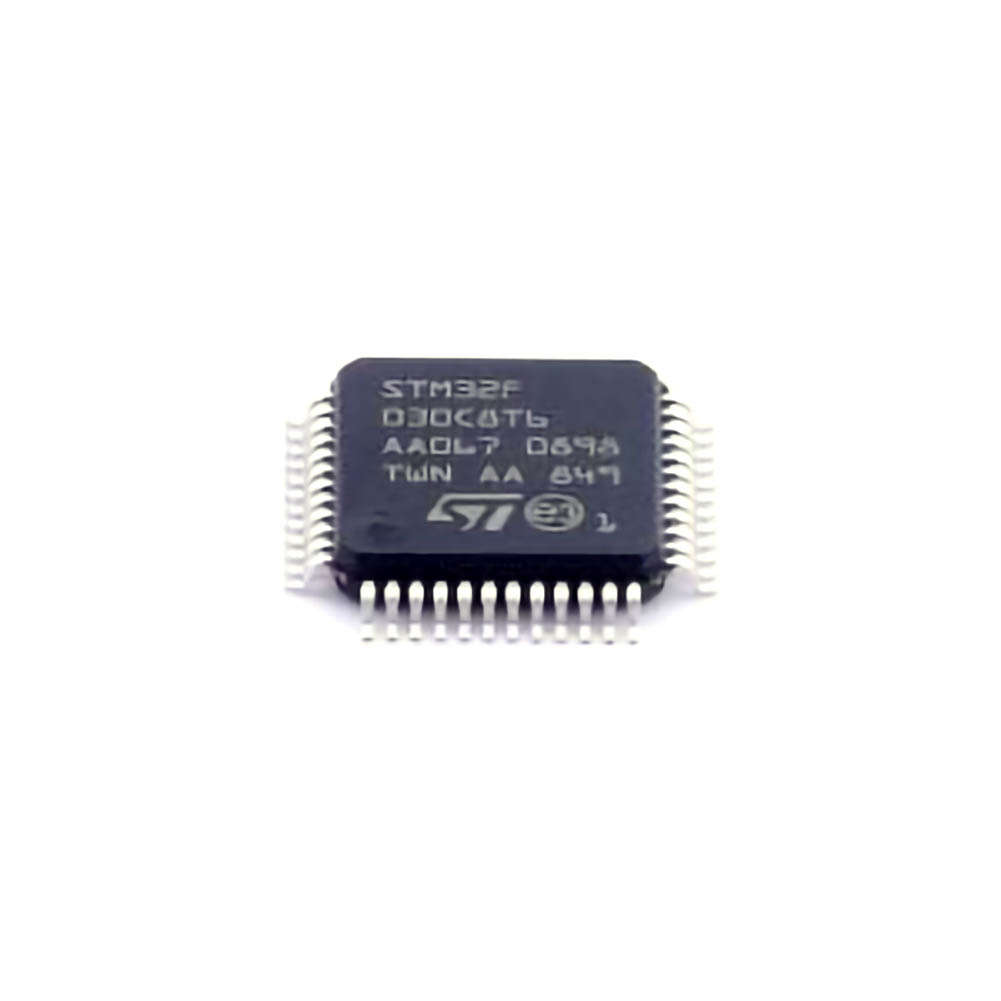

The STM32F030C8T6 is a highly popular microcontroller (MCU) in the STM32 family by STMicroelectronics. Known for its compact size, low Power consumption, and versatility, the STM32F030C8T6 is commonly used in a variety of embedded applications, from consumer electronics to industrial systems. However, like any piece of technology, it comes with its own set of challenges. In this part, we will discuss the most common issues developers face when working with this MCU and provide actionable solutions to resolve them.
1. Power Supply Problems
One of the first things to consider when troubleshooting STM32F030C8T6 issues is the power supply. Many developers have encountered issues with the MCU failing to start up or behaving erratically due to power problems. These issues can manifest as a lack of response to user input or intermittent resets.
Troubleshooting Steps:
Check Power Rail Connections: Ensure that the power supply is stable and that the VDD and VSS pins are properly connected.
Verify Voltage Levels: The STM32F030C8T6 operates at 3.3V, so check that the voltage provided by the power supply matches this requirement.
Monitor Current Consumption: If the MCU is drawing too much current, there could be a short circuit or excessive load. Use a multimeter to measure current and detect anomalies.
Decoupling Capacitors : Always use the recommended decoupling capacitor s (100nF ceramic) close to the VDD pin to filter out noise and stabilize the power supply.
2. Debugging and Programming Issues
Developers often face issues when trying to upload code or debug the STM32F030C8T6. Problems like the MCU not responding to the debugger, or the IDE failing to recognize the connected device, are common.
Troubleshooting Steps:
Check Debugger Connections: Ensure that the SWD (Serial Wire Debug) or JTAG connection is securely and correctly connected to the MCU. Inspect the debug interface pins (SWDIO, SWCLK, etc.) for any physical damage or misconnection.
Verify Firmware: If the MCU is not responding, check the bootloader configuration. The STM32F030C8T6 comes with a built-in bootloader, but if the firmware is corrupt or improperly configured, it may not respond to the debugger.
Use STM32CubeProgrammer: If the MCU is unresponsive, try using STM32CubeProgrammer to connect and reprogram the device. This tool allows you to check the status of the MCU and attempt to recover from a faulty firmware issue.
3. Clock and Reset Configuration Problems
Improper clock and reset configurations are among the most common causes of STM32F030C8T6 malfunction. If the MCU is not starting up or behaving erratically, it's essential to check whether the clock sources and reset mechanisms are set up correctly.
Troubleshooting Steps:
Check the Clock Source: The STM32F030C8T6 can use various clock sources such as the internal 8 MHz RC oscillator or an external crystal oscillator. If the wrong clock source is selected, the MCU may not function as expected.
Reset Pin Issues: Ensure that the NRST pin is not being held low or experiencing noisy transitions. If necessary, add a pull-up resistor to the NRST pin to prevent unintended resets.
Use System Clock Settings: In STM32CubeMX or your IDE, verify the clock configuration settings. Ensure that the correct PLL or external clock source is chosen for your application.
4. Communication Interface Failures
The STM32F030C8T6 supports a variety of communication protocols, including USART, I2C, SPI, and CAN. However, improper configuration of these interfaces can lead to communication failures or unreliable data transmission.
Troubleshooting Steps:
Check Pin Assignments: Ensure that the communication pins (TX, RX for USART; SCL, SDA for I2C; MOSI, MISO for SPI) are correctly assigned in the firmware and connected to the appropriate physical pins.
Baud Rate and Timing : If using a serial interface like USART, verify that the baud rate and timing parameters match between the MCU and the peripheral device. Mismatched baud rates or timing configurations can cause data corruption.
Signal Integrity: For high-speed communication like SPI, ensure that the traces are short and impedance-matched to minimize signal reflection. Use pull-up Resistors for I2C communication to ensure proper line levels.
Check Peripheral Initialization: In your firmware, ensure that the communication peripherals are initialized properly, including setting up the correct mode (master/slave), enabling the interrupts, and configuring the data width.
5. GPIO Configuration Errors
Misconfigured GPIO pins can lead to a variety of issues, from simple logic errors to complete system failures. The STM32F030C8T6 has a flexible GPIO structure that can be used for input, output, alternate functions, or analog signals. However, improper configuration can cause incorrect behavior or failure to read/write data.
Troubleshooting Steps:
Check GPIO Mode: Each GPIO pin can be configured in several modes, including input, output, analog, or alternate function. Make sure the correct mode is set for the intended use case (e.g., input for a sensor or output for a LED ).
Verify Pin Speed and Pull-up/Pull-down Resistors: Ensure the pin speed and pull-up/pull-down resistors are configured correctly. Incorrect settings can cause the pins to behave unpredictably.
Check for Conflicts: If using multiple peripherals (e.g., I2C, SPI), ensure that the GPIO pins are not being shared or incorrectly assigned between functions.
Advanced Troubleshooting for STM32F030C8T6 and Best Practices
While the common issues mentioned in Part 1 are often related to basic setup and configuration, more complex problems may arise during development, particularly in advanced applications. In this second part, we’ll address some advanced troubleshooting techniques and best practices to help you optimize the performance of your STM32F030C8T6-based designs.
6. Watchdog Timer Issues
The STM32F030C8T6 features an independent watchdog timer (IWDG) and a window watchdog timer (WWDG) to help recover from software or hardware faults. However, improper configuration or a failure to regularly refresh the watchdog timer can result in unintended resets or system failures.
Troubleshooting Steps:
Ensure Proper Watchdog Refresh: Ensure that the software properly refreshes the watchdog timer within the expected time intervals. If the watchdog timer expires without a refresh, the MCU will automatically reset.
Disable the Watchdog During Debugging: If you're using the debugger and the watchdog is enabled, you might find that your MCU keeps resetting unexpectedly. Disable the watchdog in the debugging environment to avoid this issue.
Check Watchdog Timeout Period: Make sure that the timeout period is appropriate for your application. A very short timeout period might trigger false resets, while a long period might not be effective in recovering from critical errors.
7. Boot Mode and Firmware Corruption
Sometimes, the MCU may fail to boot properly due to firmware corruption or incorrect boot mode settings. This is a critical issue, especially in production environments where a device must boot up correctly every time.
Troubleshooting Steps:
Check Boot Pins: The STM32F030C8T6 has a BOOT0 pin that determines the boot mode. Ensure that the pin is configured correctly, either for booting from flash Memory or using the system bootloader.
Reflash the MCU: If the firmware becomes corrupted, try reflashing the MCU using the STM32CubeProgrammer or an external programmer. Make sure that the flash memory is erased before uploading the new firmware.
Check for Flash Wear: Flash memory has a limited number of write cycles. If you’re experiencing repeated failures, it could be due to flash memory wear-out. Monitor the wear level and consider using a different storage method.
8. Thermal Issues and Overheating
Overheating can cause the STM32F030C8T6 to behave erratically or even fail completely. Excessive current draw, poor PCB layout, or insufficient cooling can lead to thermal issues.
Troubleshooting Steps:
Monitor Operating Temperature: Use a temperature sensor or thermal camera to check the operating temperature of the MCU during high-load operation.
Improve PCB Layout: Ensure that heat-sensitive components are placed away from high-power areas and that the PCB design includes adequate heat dissipation features such as copper planes or heatsinks.
Use Power Management Techniques: Enable low-power modes (e.g., sleep, stop) in the firmware when the MCU is idle to reduce power consumption and minimize heat generation.
9. Firmware Optimization for Performance
If the STM32F030C8T6 is not performing as expected, the issue may lie in inefficient firmware. Inefficient code can lead to excessive CPU usage, high power consumption, or delayed responses.
Troubleshooting Steps:
Use Profiling Tools: Utilize tools like STM32CubeMX and the STM32CubeIDE profiler to analyze the performance of your code. Look for areas where CPU time is being wasted.
Optimize Interrupt Handling: Ensure that interrupt handlers are efficient and not blocking other interrupts. Avoid lengthy operations inside interrupt service routines (ISRs).
Use DMA for Data Transfers: Direct Memory Access (DMA) can offload data transfer tasks from the CPU, reducing processing overhead and improving performance, especially in data-intensive applications.
10. Best Practices for Robust Design
To avoid many of the issues described above, it’s essential to follow best practices during the design and development phase.
Follow Reference Designs: STMicroelectronics provides reference designs and application notes that can help you avoid common pitfalls.
Thorough Testing: Perform extensive unit testing and validation of your code to ensure it behaves correctly under all conditions.
Use Reliable Development Tools: Utilize STM32CubeMX, STM32CubeIDE, and other official tools to streamline configuration, firmware development, and debugging.
Conclusion
While the STM32F030C8T6 microcontroller is powerful and versatile, it comes with its own set of challenges. By following the troubleshooting steps and best practices outlined in this guide, you can resolve common issues and optimize your designs for better performance and reliability. Whether you're a beginner or an experienced engineer, understanding these troubleshooting techniques will help you make the most of your STM32F030C8T6-based projects.
