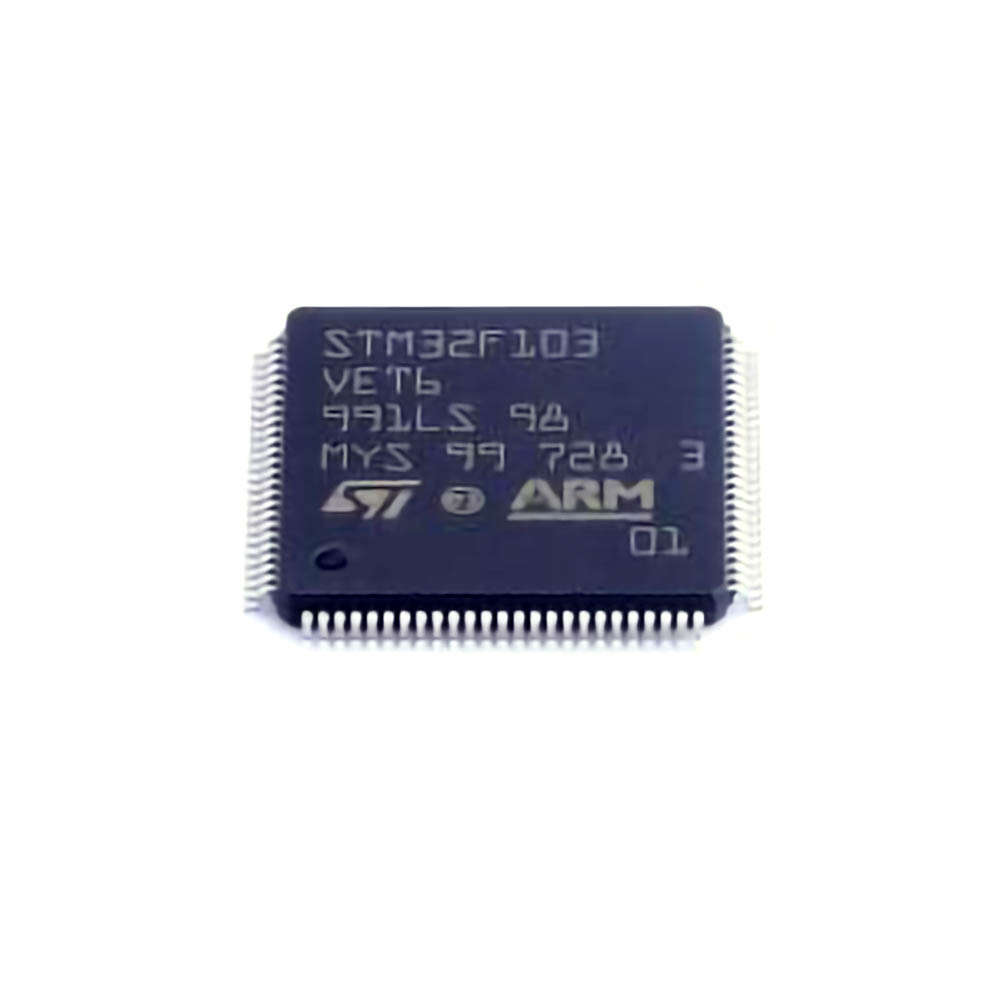

The STM32F103VET6 microcontroller is one of the most widely used chips in embedded systems, favored for its performance, flexibility, and affordability. However, even the most robust microcontrollers are not without their challenges. In this article, we will explore common troubleshooting issues developers may encounter while working with the STM32F103 VET6 and provide effective solutions for each.
STM32F103VET6, troubleshooting STM32, embedded systems, microcontroller issues, STM32 solutions, STM32 debugging, STM32F103VET6 troubleshooting
Understanding the Common Issues with STM32F103VET6
The STM32F103VET6 microcontroller, part of the STM32 family from STMicroelectronics, offers an ideal balance of processing Power , low power consumption, and a variety of peripheral options. Whether used in consumer electronics, automotive systems, industrial automation, or IoT applications, the STM32F103VET6 is highly reliable and versatile. However, like any complex electronic device, it can present challenges during development and integration.
In this first part, we will address some of the most common issues users face when working with the STM32F103VET6 and discuss how to resolve them.
1. Power Supply and Reset Issues
One of the most frequent causes of issues in microcontroller-based systems is power-related problems. Power glitches, inadequate voltage levels, or improper reset sequencing can lead to erratic behavior or failure to start the microcontroller.
Solution:
Ensure Proper Voltage Levels: The STM32F103VET6 operates within a 2.0V to 3.6V range. Using an unstable or incorrectly regulated power supply can cause the microcontroller to fail to boot or exhibit unexpected behavior. Use a high-quality regulator and capacitor at the power input to stabilize the voltage.
Check the Reset Circuitry: The reset pin (NRST) is crucial for proper initialization of the STM32F103VET6. If this pin is not held low at power-on for the required duration, the chip may fail to initialize. Ensure that the reset circuit is correctly designed with the right timing. A capacitor and resistor in the right configuration can help ensure proper reset signal generation.
Watch for Brown-Out Events: The STM32F103VET6 has a built-in brown-out detector that resets the MCU if the voltage drops below a specific threshold. If you’re seeing irregular resets, check the power supply for fluctuations or noise that could trigger the brown-out detector.
2. Incorrect Clock Configuration
The STM32F103VET6 features a versatile clock system, but configuring the clocks incorrectly is a common problem. Issues related to the clock configuration can lead to the microcontroller running at the wrong speed, not booting up, or malfunctioning peripherals.
Solution:
Review Clock Settings in STM32CubeMX: If you’re using STM32CubeMX to configure the clock settings, make sure that all settings are compatible with your application. You must select the correct external crystal oscillator (if used) or internal clock source.
Verify PLL Configuration: The Phase-Locked Loop (PLL) is responsible for generating high-speed clock signals, and misconfiguration can lead to instability. Ensure the PLL is set correctly to multiply the input clock to achieve the desired system clock.
Use a Stable External Oscillator: If you’re using an external crystal oscillator or clock source, verify its frequency and ensure it’s within the acceptable tolerance. An unstable oscillator can cause intermittent issues or failure to boot.
3. Debugging Issues
Debugging embedded systems often involves using tools like ST-Link, J-Link, or similar debuggers to interface with the STM32F103VET6. However, users frequently run into problems with these debugging tools not connecting or failing to display useful information.
Solution:
Check Debugger Connections: Ensure that the debugger is properly connected to the SWD (Serial Wire Debug) or JTAG pins on the STM32F103VET6. Verify that these pins are not being used by other peripherals or external circuits that could interfere with the debug interface.
Check Firmware for Debug Support: Some STM32 firmware configurations disable the debug interface. Make sure the correct options are enabled in the microcontroller’s firmware (using STM32CubeMX or manual register setup).
Enable Debugging Mode in Bootloader: If the STM32F103VET6 doesn’t respond to the debugger, check if it’s in a mode that disables debugging (such as in the bootloader or an incorrect boot configuration). Some versions of STM32 may need specific jumpers or configurations to allow debugging.
4. I/O Pin Conflicts
The STM32F103VET6 comes with a wide array of I/O pins, each capable of various functions such as general-purpose input/output, ADC, SPI, UART, and more. Sometimes developers encounter issues where certain I/O pins are not behaving as expected, often due to conflicts or incorrect configurations.
Solution:
Review Pin Mapping: Ensure that you are not using the same pin for multiple conflicting functions (e.g., one pin used as both an output and input).
Check Alternate Function Configurations: Many STM32 pins support multiple alternate functions. In STM32CubeMX, verify that each pin is configured correctly for its intended purpose.
Inspect External Components: If you are using external components such as sensors, displays, or motor drivers, make sure that they are correctly connected and powered. Incorrect connections can result in faulty behavior or no response at all.
5. Watchdog Timer Issues
The watchdog timer (WDT) is an essential feature that helps to recover from software hang-ups or unexpected behavior. However, improper configuration or malfunction of the WDT can lead to unexpected resets or the system freezing.
Solution:
Proper WDT Initialization: Make sure that the watchdog timer is correctly initialized and periodically reset in your firmware code. If the WDT is not reset before it expires, it will trigger a system reset.
Verify WDT Timeout Settings: Check the WDT timeout settings to ensure they are appropriate for the system's execution time. If the timeout is too short, the WDT might reset the system too frequently.
Disable the WDT Temporarily: If you suspect the WDT is causing issues, you can disable it for troubleshooting purposes. However, be cautious and re-enable it after resolving the issue, as the WDT is crucial for ensuring the reliability of the system.
Advanced Troubleshooting Solutions for STM32F103VET6
In this second part of the article, we will dive into more advanced troubleshooting scenarios, including peripheral malfunctions, software bugs, and performance-related issues. We will also explore techniques for improving system stability and maximizing the performance of the STM32F103VET6.
6. Peripherals Not Functioning as Expected
One of the standout features of the STM32F103VET6 is its rich set of peripherals, including ADC, UART, SPI, I2C, PWM, and many others. However, peripheral configurations can sometimes be challenging, especially when peripherals don't behave as expected.
Solution:
Verify Peripheral Clock Sources: Many peripherals in STM32F103VET6 are driven by dedicated clock sources. If the clock for a particular peripheral is not enabled or configured properly, the peripheral may not function correctly. Use STM32CubeMX to confirm the clock settings.
Check GPIO Initialization: Peripherals are typically mapped to specific GPIO pins. If these pins are not configured for the correct alternate function, the peripheral will not operate as expected. Double-check GPIO initialization in your code.
Test Peripherals Independently: If you are using multiple peripherals, test them in isolation to identify the root cause. For example, test UART communication with simple "echo" code to confirm that the serial interface is functioning properly.
7. Memory Issues and Corruption
Memory corruption is a serious issue that can cause a microcontroller to behave unpredictably. In the STM32F103VET6, both Flash and SRAM memory can be prone to corruption if there are bugs in the code or problems with the power supply.
Solution:
Use a Memory Protection Unit (MPU): The STM32F103VET6 features a memory protection unit that helps to isolate critical regions of memory and prevent accidental writes. Implementing the MPU is a good practice to prevent memory corruption.
Check Flash Programming: If you are writing to Flash memory during runtime (e.g., for logging or configuration storage), ensure that you are properly managing the write and erase cycles. Flash memory has a limited number of write/erase cycles, so excessive writes can lead to corruption.
Run Memory Tests: Use available tools or write your own test code to check for memory integrity periodically. This can help catch corruption early before it causes system failures.
8. Software Bugs and Code Optimization
Software bugs are one of the most common causes of system failures, especially in embedded systems where direct hardware access is frequent. These bugs may not be immediately obvious but can cause erratic behavior or crashes.
Solution:
Use a Debugger: The best way to catch software bugs is to use a debugger. Setting breakpoints and stepping through the code allows you to inspect variable values and check the flow of execution.
Enable Compiler Warnings: Many IDEs provide extensive compiler warnings that can help detect potential bugs before they occur. Enable all relevant warnings and carefully review them.
Optimize Code Efficiency: Ensure that your code is optimized for the STM32F103VET6's architecture. Avoid tight loops, excessive memory allocations, and redundant operations that could degrade performance. Use profiling tools to identify bottlenecks and improve execution times.
9. Overheating or Overloading of Peripherals
Sometimes, STM32F103VET6 systems may overheat, especially when peripherals like motor drivers or communication module s are drawing excessive current. Overloading can result in unpredictable behavior, erratic performance, or hardware failure.
Solution:
Monitor Current Consumption: Use a multimeter or dedicated current-monitoring tools to check if the system is drawing excessive current. Check that external components are not overloading the microcontroller’s I/O pins.
Add Heat Dissipation: If the system is running hot, ensure that there is adequate heat dissipation, such as adding heatsinks or improving airflow.
Implement Current Limiting: For power-sensitive peripherals, consider adding current-limiting resistors or other protection components to prevent damage.
10. Final Considerations and Best Practices
To ensure long-term reliability and minimize troubleshooting efforts, consider following best practices in hardware design, software architecture, and system testing.
Solution:
Design for Robustness: Use proper decoupling capacitors, design for ESD protection, and ensure your PCB layout minimizes noise and interference.
Test Thoroughly: Test each subsystem individually before integrating them into a complete system. This can help isolate and identify problems early in development.
Documentation and Code Reviews: Maintain clear documentation and conduct regular code reviews to identify potential issues before they become serious problems.
By following these troubleshooting steps and adopting best practices, you can significantly reduce the likelihood of encountering issues when using the STM32F103VET6 and ensure that your embedded systems project runs smoothly.
