Identifying and Resolving Power Issues in STM32F401RCT6

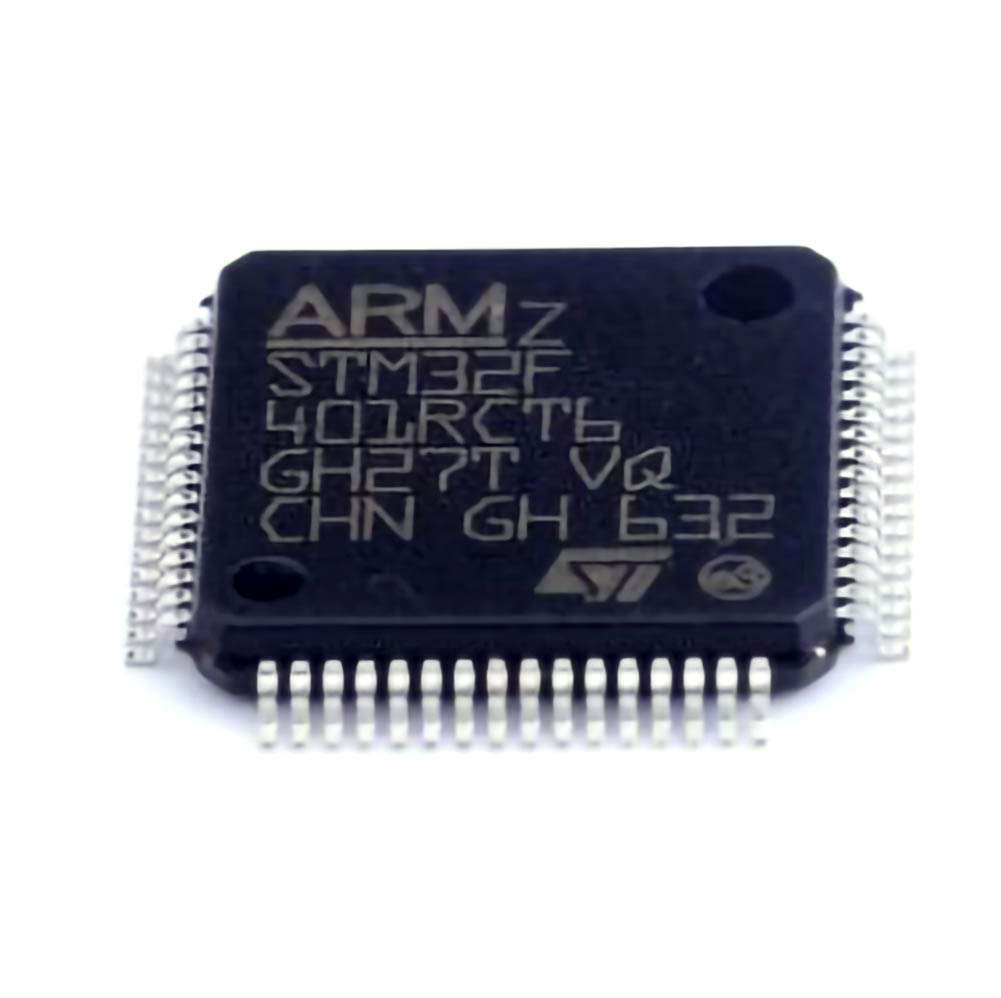

The STM32F401RCT6, part of the STM32F4 series of microcontrollers, is widely recognized for its high performance and efficiency. However, like any complex embedded system, it is susceptible to common issues that developers may face during the design and development phases. One of the most common problems users encounter with the STM32F401RCT6 involves power-related issues. Proper understanding and troubleshooting of these issues can save significant time and prevent costly mistakes.
1. Power Supply Issues
A crucial aspect of troubleshooting the STM32F401RCT6 is ensuring the power supply is stable and within the acceptable range. The microcontroller operates at 3.3V, and any deviations can lead to erratic behavior or complete failure. Power supply issues often manifest in the form of unexpected resets, erratic program execution, or failure to start the application.
Solution:
Check the Voltage: Use a digital multimeter to check the voltage at the power pins of the STM32F401RCT6. The input voltage should ideally be between 2.7V to 3.6V. If it's outside this range, verify the power regulator circuit and ensure you're using the correct voltage source.
Check the Decoupling capacitor s: Decoupling capacitors are essential for smoothing voltage fluctuations. Ensure that the recommended capacitors (e.g., 0.1µF and 10µF) are correctly placed close to the power pins. Without proper capacitors, power noise could affect the stability of the MCU.
2. Reset Circuit Problems
Another common issue occurs with the reset circuitry. If the reset pin (nRESET) isn't properly pulled low or if the reset signal is unreliable, the STM32F401RCT6 will not initialize correctly, leading to a failure to start the application.
Solution:
Check Reset Circuit: Ensure that the reset pin is connected to the appropriate reset circuitry, including a resistor (typically 10kΩ) pulling it high and a capacitor to ground for power-on reset functionality. Verify that the reset signal is not being inadvertently held low or floating.
Use the External Reset Pin: In some cases, developers prefer using an external reset circuit, such as a push-button or a dedicated reset IC, to ensure a reliable reset mechanism.
3. Overheating Issues
Another potential problem is overheating. The STM32F401RCT6 microcontroller can sometimes overheat due to high power consumption, especially when running at full Clock speed or under heavy load. Overheating could lead to instability or damage to the MCU.
Solution:
Check the Clock Speed: Ensure that the clock speed and configuration of the microcontroller are appropriate for your application. Running at high frequencies (like 84 MHz) without sufficient cooling or power regulation can lead to overheating.
Use Heatsinks or Thermal Pads: If your application demands running the STM32F401RCT6 at high speeds or under high load, consider adding a heatsink or thermal pad to manage temperature more effectively.
Debugging and Software-Related Issues in STM32F401RCT6
Once you’ve ruled out hardware-related issues, debugging software problems becomes an essential step in ensuring your STM32F401RCT6 works as expected. Below are some common software-related troubleshooting methods to help diagnose and resolve issues effectively.
1. Debugging Program Execution
Developers often encounter issues where the STM32F401RCT6 either doesn’t start or behaves erratically during program execution. These issues can be attributed to incorrect firmware, Memory misconfiguration, or issues with the interrupt vector table.
Solution:
Check the Boot Mode: The STM32F401RCT6 has different boot modes, such as booting from Flash memory or System memory. If the MCU is stuck in a boot loop, verify the boot pins (BOOT0 and BOOT1) are configured correctly. Misconfigured boot pins can cause the MCU to attempt to boot from an incorrect source, leading to problems.
Examine the Linker Script: The linker script is responsible for mapping memory addresses for the program’s code and variables. Incorrectly defined memory regions can cause the microcontroller to jump to incorrect addresses during program execution. Ensure that your linker script defines memory regions (Flash, SRAM, etc.) correctly according to the STM32F401RCT6 datasheet.
2. Issues with Peripherals and I/O
The STM32F401RCT6 comes with a variety of peripherals such as UART, SPI, I2C, GPIO, and timers, all of which can be sources of troubleshooting. For instance, an issue with UART communication can cause the system to fail to send or receive data as expected.
Solution:
Check Peripheral Initialization: Ensure that each peripheral is initialized correctly. For example, the baud rate and configuration for UART must match between the transmitter and receiver. If you’re using I2C, verify that the I2C clock speed is supported by the connected device.
Verify GPIO Configuration: The STM32F401RCT6 offers a variety of GPIO options (input, output, alternate function, analog). Misconfigured GPIO pins can lead to erratic behavior or communication failures. Double-check the GPIO configuration and make sure you’re not accidentally setting pins in a mode incompatible with the required function.
3. Debugging with an ST-Link Debugger
One of the most effective tools for troubleshooting STM32F401RCT6 microcontrollers is the ST-Link debugger. This tool provides real-time debugging and can help you inspect variables, breakpoints, and memory during execution.
Solution:
Use Breakpoints: Set breakpoints in the code to check where execution stops or diverges from expected behavior. You can use breakpoints to pause the program at critical sections and inspect register values or variable states.
Monitor Variables and Registers: Use the debugger to monitor specific variables or MCU registers that may be causing the problem. For example, if your system hangs during a particular peripheral operation, monitor the corresponding control and status registers for clues.
4. Stack Overflow and Memory Corruption
A stack overflow or memory corruption can cause unpredictable behavior and system crashes. This often occurs when the software writes beyond allocated memory or due to improper handling of function calls and interrupts.
Solution:
Check Stack Size: Ensure that the stack size is properly defined in your linker script. A small stack size may cause a stack overflow, especially in applications with many function calls or nested interrupts.
Enable Stack Protection: Many STM32 microcontrollers, including the STM32F401RCT6, support stack protection features. Enabling stack overflow detection in your development environment (e.g., STM32CubeIDE) can help catch overflows before they cause serious problems.
Use Compiler Warnings: Enable all relevant compiler warnings, especially those related to memory allocation and function calls. Warnings like "variable not used" or "function may return without a value" can help detect subtle programming mistakes that might lead to memory corruption.
5. Interfacing with External Components
When interfacing with external sensors, actuators, or communication module s, the STM32F401RCT6 may experience issues if external components are not properly interface d.
Solution:
Verify Signal Integrity: Check the signal integrity of the communication lines. Use an oscilloscope to verify that the signals sent to and received from external devices meet the required voltage levels and timings.
Double-Check Protocols: Make sure that the communication protocols (e.g., SPI, I2C) are configured correctly on both ends. Incorrect clock speeds, polarity, or bit order in protocols can cause data corruption or failure to communicate.
Conclusion
Troubleshooting the STM32F401RCT6 involves a systematic approach to identifying and resolving issues across both hardware and software domains. By understanding and addressing common problems like power supply issues, reset circuit problems, debugging execution flow, and peripheral configuration, developers can save valuable time and avoid unnecessary headaches. Utilizing tools like ST-Link debuggers and taking advantage of software safeguards such as stack protection further ensures that you can create reliable, robust systems with the STM32F401RCT6.
With a clear understanding of these troubleshooting techniques, you’ll be well on your way to optimizing your embedded systems and unlocking the full potential of the STM32F401RCT6 in your projects.
