Understanding the TXB0104QPWRQ1 and Common Troubleshooting Scenarios

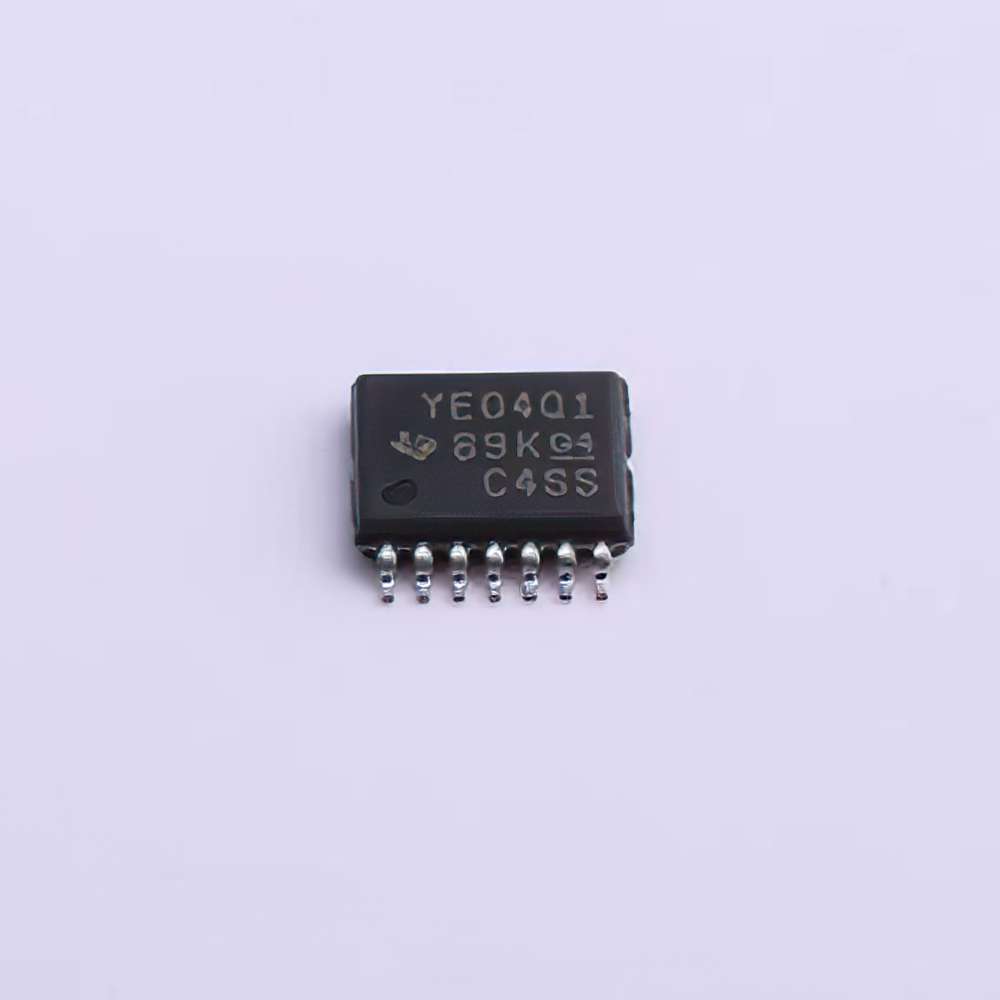

The TXB0104QPWRQ1 is a versatile and highly reliable integrated circuit (IC) used primarily as a bidirectional voltage level shifter in digital communication systems. Its ability to translate voltage levels between different logic families makes it essential in modern electronics, especially for interfacing devices with varying voltage levels. However, like any complex component, the TXB0104QPWRQ1 can sometimes present issues during design, installation, or usage. This article delves into the common troubleshooting problems and solutions to help you ensure optimal performance and reliability of this IC.
Overview of TXB0104QPWRQ1
The TXB0104 IC belongs to a family of voltage level shifters produced by Texas Instruments. It operates with low Power consumption and supports high-speed data transmission between devices with different voltage logic levels. Its bidirectional nature allows it to work seamlessly in both directions, making it highly versatile for a wide range of applications, including communication interface s (e.g., I2C, SPI, UART) between microcontrollers, sensors, and other peripherals.
Common Issues with TXB0104QPWRQ1
While the TXB0104QPWRQ1 is generally a reliable IC, certain issues may arise during the design or operation phase. The following are some of the most commonly encountered problems:
Incorrect Voltage Levels
Voltage mismatches are one of the most frequent causes of malfunctioning in ICs like the TXB0104. If the input voltage levels exceed or fall below the specifications (typically 1.65V to 3.6V for low-side inputs, and 2.3V to 5.5V for high-side inputs), the IC may fail to perform its intended level-shifting function.
Solution: Ensure that the input voltage levels are within the specified range. You can verify the voltage levels using a multimeter or oscilloscope to monitor signals before and after the level shifting process. If required, use additional regulation circuitry (e.g., voltage regulators) to bring voltage levels into compliance.
Power Supply Instability
A fluctuating or unstable power supply can lead to unreliable performance or complete failure of the TXB0104. Power supply problems such as noise, inadequate filtering, or incorrect voltage ratings can disrupt the level-shifting functionality.
Solution: Use high-quality, stable power supplies and ensure proper decoupling. Adding capacitor s close to the power pins of the TXB0104 (e.g., 0.1µF and 10µF) can help filter out noise and ensure stable operation. It’s also important to check for any issues in the PCB layout, which could lead to power disruptions or signal degradation.
Unintended High-Current Draw
Sometimes, the TXB0104 may draw more current than expected, which could indicate either a fault within the IC or an issue in the surrounding circuitry (e.g., short circuits, incorrect pin connections, etc.).
Solution: Measure the current consumption of the device. If excessive current is being drawn, inspect the surrounding circuit for shorts or incorrect connections. Verify that the appropriate pull-up or pull-down resistors are in place to ensure proper logic levels and that there are no unintended connections causing high current draw.
Signal Integrity Problems
Signal integrity issues, such as noisy or degraded signals, are another common problem with voltage level shifters like the TXB0104. These issues can result in communication errors or data corruption in high-speed applications.
Solution: Ensure that the PCB layout follows best practices for high-speed signal routing. Keep traces as short and direct as possible, and use differential pair routing for high-speed signals. Proper grounding and the use of ground planes can also help minimize noise. Use oscilloscopes to analyze signal quality and check for any irregularities such as reflections or signal degradation.
Improper Configuration or Use of Logic Inputs/Outputs
The TXB0104 has specific requirements for how the logic inputs and outputs are configured. Incorrectly driving the pins, such as using inputs as outputs or vice versa, can lead to malfunctioning or even permanent damage to the IC.
Solution: Carefully review the datasheet for the TXB0104 to ensure that the device is used within its recommended configuration. When configuring the device, make sure that logic-level inputs are connected to the correct side (low or high) of the IC, and the outputs are appropriately connected to the receiving circuit. Avoid shorting output pins to each other or to ground.
Overheating
Like most ICs, the TXB0104 can overheat if exposed to excessive power dissipation or if placed in an environment with poor thermal management. Overheating can result in a reduction of performance or permanent damage to the IC.
Solution: Ensure adequate cooling for the TXB0104. This may involve improving heat dissipation through better PCB design, adding heat sinks if necessary, or ensuring that the IC is not placed near heat sources. Additionally, make sure that the IC is not being overdriven beyond its power or voltage limits, as this can increase the risk of overheating.
Advanced Troubleshooting Solutions and Best Practices for TXB0104QPWRQ1
While the basic troubleshooting steps in Part 1 will resolve many common issues, there are several more advanced techniques and best practices that can help ensure the TXB0104QPWRQ1 performs optimally in your application. This section will explore some of these advanced solutions in greater detail.
1. Ensuring Proper PCB Design for Signal Integrity
One of the most important factors in preventing issues with the TXB0104 is the PCB layout. A poor PCB layout can introduce signal integrity problems, including reflections, cross-talk, and noise, which can impair the performance of the level shifter.
Solution: Follow good PCB layout practices when designing your circuit. Here are some key considerations:
Minimize trace length: Keep the traces between the TXB0104 and other components as short as possible. Long traces can increase inductance and resistance, leading to signal degradation.
Differential pairs: For high-speed communication, such as I2C or SPI, use differential pair routing for signals to maintain signal quality.
Use of ground planes: A continuous ground plane can help reduce noise and improve signal integrity. Connect all ground pins of the IC to the plane.
Adequate decoupling: Place decoupling capacitors (e.g., 0.1µF, 10µF) as close to the power pins as possible to filter noise and stabilize the power supply.
2. Detailed Oscilloscope Analysis
For more complex troubleshooting, an oscilloscope is an invaluable tool. It can help you visualize how signals are behaving before and after level shifting. Oscilloscope analysis can reveal issues such as:
Signal jitter: Jitter can cause data errors, especially in high-speed communication. By analyzing the waveform, you can determine if the signal is stable or experiencing fluctuations.
Voltage overshoot or undershoot: This can indicate improper power supply or improper signal levels.
Timing issues: For bidirectional level shifters, timing is critical. Oscilloscope analysis can help identify if there are any timing violations that could lead to data corruption.
3. Verifying Temperature and Environmental Factors
Sometimes, external factors such as temperature fluctuations, humidity, or external electromagnetic interference ( EMI ) can affect the performance of the TXB0104.
Solution: Ensure the operating environment is within the recommended temperature range (typically -40°C to 125°C) and that there are no sources of EMI that could interfere with the IC’s functionality. Adding shielding or placing the IC in a more controlled environment can mitigate these issues.
4. Updating Firmware/Software
In some cases, the issue may lie not with the hardware but with the software or firmware that controls the communication protocols. Firmware bugs, incorrect timing configurations, or improper handling of I2C, SPI, or other protocols can lead to errors in voltage level shifting.
Solution: Review your firmware and ensure that timing, protocol handling, and pin configurations are correct. Make sure that any software-controlled devices that interface with the TXB0104 are functioning as expected and correctly initialized.
5. Post-Failure Analysis
If the TXB0104 has failed completely, perform a post-failure analysis to determine the root cause. This can involve:
Inspecting the IC for signs of physical damage (burn marks, cracked pins).
Reviewing the PCB layout and surrounding circuitry for design flaws or improper connections.
Checking for accidental over-voltage or short-circuit conditions.
Solution: Once you identify the cause of failure, redesign the circuit, taking care to address the issue and avoid repeating the same mistake.
Conclusion
Troubleshooting the TXB0104QPWRQ1 requires a systematic approach, from verifying voltage levels to ensuring optimal PCB layout and conducting advanced testing using tools like oscilloscopes. By following best practices and addressing common issues like power instability, signal integrity problems, and incorrect configurations, you can maintain the reliable performance of this versatile IC in your application. Whether you're dealing with voltage level mismatches or high-current draw, this guide offers a practical roadmap for diagnosing and resolving issues efficiently.
