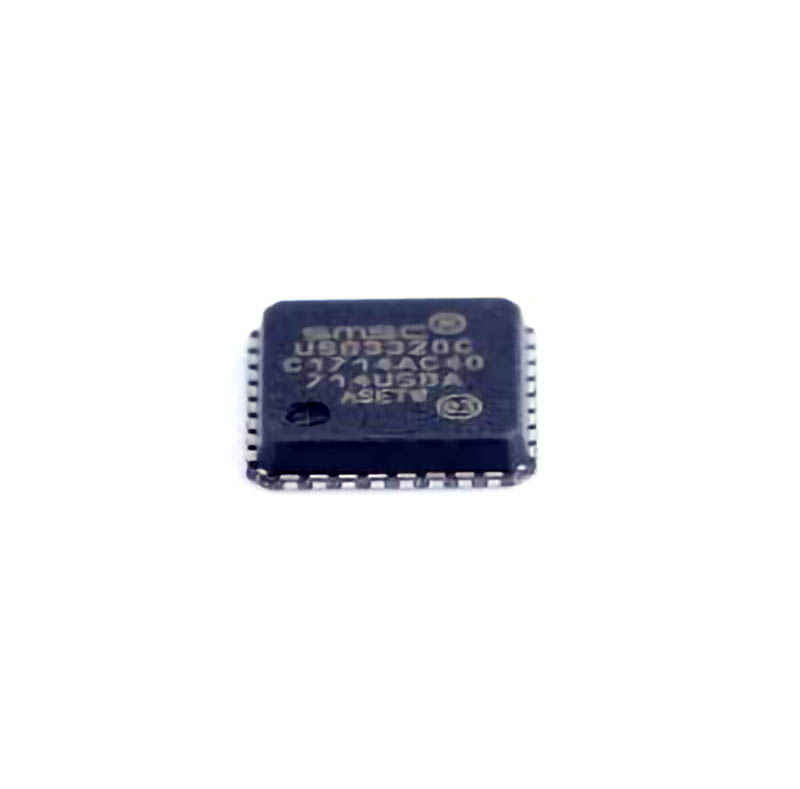

The USB3320C-EZK -TR is a versatile USB transceiver designed to simplify the development of USB 2.0 and 3.0 interface solutions. While its design aims for seamless operation, issues can arise in specific use cases. In this article, we’ll explore common problems and solutions related to the USB3320C-EZK-TR , helping engineers and developers troubleshoot more effectively.
Understanding the USB3320C-EZK-TR and Common Troubleshooting Areas
The USB3320C-EZK-TR is a USB transceiver that allows seamless integration between USB devices and microcontrollers or other embedded systems. As a critical component in USB Communication , ensuring its proper functioning is essential for achieving reliable data transfer and connectivity in USB systems.
However, even the most well-engineered components like the USB3320C-EZK-TR can encounter problems. Understanding how to troubleshoot these issues is key to ensuring the device operates as intended. In this section, we will break down common troubleshooting areas and how to resolve them.
1. Power Supply Issues
One of the first areas to check when troubleshooting the USB3320C-EZK-TR is the power supply. This component requires stable voltage to operate correctly. If the supply voltage is unstable or falls outside the specified range, the device may fail to function.
Solution:
Ensure the VDD voltage is within the recommended range (typically between 3.3V and 3.6V).
Verify that your power supply can handle the current requirements of the device.
Use a multimeter to measure the voltage at the power pins and check for fluctuations that could cause instability.
2. Incorrect USB Data Signaling
Another common problem with the USB3320C-EZK-TR is incorrect or weak USB data signaling. USB transceivers rely on proper data lines (D+ and D-) to transmit information, and poor signal integrity can result in failed communication.
Solution:
Check the integrity of the USB data lines (D+ and D-), ensuring there are no shorts or open circuits.
Use an oscilloscope to examine the waveform of the signals and verify that they match USB standards. Look for any abnormalities like signal degradation or noise.
Implement proper PCB routing techniques to minimize interference and signal loss.
3. Communication Failures with Host Devices
Communication failures between the USB3320C-EZK-TR and the host device are often a source of frustration. This can manifest as failure to enumerate the device, or failure to transmit or receive data.
Solution:
Verify the USB device descriptors to ensure that the device is correctly identified by the host.
Check for proper enumeration by examining the host’s device manager (on Windows) or using debugging tools like lsusb on Linux systems to ensure the device appears as expected.
If the device fails to enumerate, ensure the USB pull-up resistors are connected correctly, and that the ID pin is appropriately configured (for OTG systems).
4. Overheating or Thermal Issues
Overheating can be a common issue in embedded systems, and the USB3320C-EZK-TR is no exception. If the transceiver is subjected to high ambient temperatures or poor thermal management, it can overheat, resulting in instability or failure.
Solution:
Check for thermal management solutions, such as adequate heat sinks or thermal pads, to dissipate heat from the transceiver.
Ensure that the device is operating within its specified temperature range (typically -40°C to 85°C for the USB3320C-EZK-TR).
Monitor the temperature with a thermal camera or temperature sensor to ensure that the device is not overheating.
5. PCB Layout and Signal Integrity
Poor PCB layout can lead to a range of USB communication issues. For example, improper routing of the USB data lines can lead to signal reflections, crosstalk, and interference, resulting in degraded performance or total failure.
Solution:
Ensure the USB differential pair traces are routed with proper impedance (typically 90Ω differential impedance) and are as short as possible.
Minimize the number of vias in the signal path to avoid reflections.
Keep the USB traces away from high-current or noisy signal lines to prevent cross-talk.
Ensure that decoupling capacitor s are placed as close as possible to the VDD pins to reduce power supply noise.
Advanced Troubleshooting and Diagnostic Tips for USB3320C-EZK-TR
Once the basics of USB3320C-EZK-TR troubleshooting are covered, it’s time to dive into more advanced diagnostic techniques. These approaches are aimed at resolving complex issues that may not be immediately obvious.
1. Device Firmware and Driver Compatibility
Sometimes, the root cause of USB communication issues lies in firmware or driver compatibility. If the device drivers are outdated or not configured properly, the USB3320C-EZK-TR may fail to communicate with the host device.
Solution:
Ensure that the correct device firmware is installed, especially if the USB3320C-EZK-TR is part of a larger system where firmware is frequently updated.
Update or reinstall the USB drivers for the host device to ensure compatibility with the USB3320C-EZK-TR.
Use debugging software like USBlyzer (for Windows) or Wireshark (for packet-level analysis) to examine the data exchange and detect any errors during USB communication.
2. USB 3.0 Compatibility Issues
The USB3320C-EZK-TR is capable of supporting both USB 2.0 and USB 3.0 protocols. However, when using the USB3320C-EZK-TR with USB 3.0 devices, issues may arise due to compatibility mismatches or improper handshaking between the transceiver and the host.
Solution:
If using USB 3.0, ensure that the SuperSpeed (SS) data lines (TX/RX) are correctly connected and routed.
Check that the transceiver is in USB 3.0 mode, as it may sometimes revert to USB 2.0 in certain configurations. Verify the settings in the device's control registers to make sure the right protocol is selected.
Use a USB 3.0 compliant cable and ensure that the USB port on the host is capable of supporting USB 3.0 speeds.
3. Signal Jitter and Timing Issues
Timing is crucial in USB communication, and even small discrepancies can lead to data errors. Signal jitter or incorrect timing can cause synchronization problems, leading to failed transfers or dropped connections.
Solution:
Use a logic analyzer to monitor signal timing and check for discrepancies between the data lines and clock signals.
Check for any clock source issues, particularly if the USB3320C-EZK-TR relies on an external clock source.
Ensure that the timing of the USB bus signals aligns with the protocol specifications for USB 2.0 or USB 3.0, depending on the mode of operation.
4. Intermittent or Unstable Connections
If the USB3320C-EZK-TR experiences intermittent connectivity, it can be particularly frustrating, as the issue might not always be present. These types of problems often arise due to loose connections or marginal signal quality.
Solution:
Ensure all connectors and pins are securely seated and making good contact.
Check for any oxidation or corrosion on the USB port connectors, which can interfere with stable communication.
Use shielded USB cables to reduce the risk of electromagnetic interference ( EMI ) affecting the connection.
5. Advanced Diagnostic Tools and Techniques
For persistent or difficult-to-pinpoint issues, more advanced tools and techniques can be helpful. These might include signal injection, error counters, or the use of specialized software to monitor USB traffic.
Solution:
Utilize a USB protocol analyzer to capture and analyze the low-level USB traffic. This will help identify communication failures, timing issues, or protocol violations.
Use the error counters in the USB3320C-EZK-TR to track the number of transmission errors and retries. This can provide valuable insight into whether the communication issues are related to noise, power fluctuations, or timing mismatches.
Conclusion: Achieving Stable USB Communication
While the USB3320C-EZK-TR is a highly reliable USB transceiver, understanding common troubleshooting areas and advanced diagnostic methods is key to ensuring that the device operates smoothly in a range of applications. Whether dealing with power issues, signal integrity, driver compatibility, or advanced debugging techniques, the right approach will ensure stable and reliable communication for any USB system. By following the troubleshooting steps and solutions outlined in this article, you can optimize the performance of the USB3320C-EZK-TR and tackle any challenges with confidence.
