Understanding and Solving Common Problems with the GD32F103C8T6

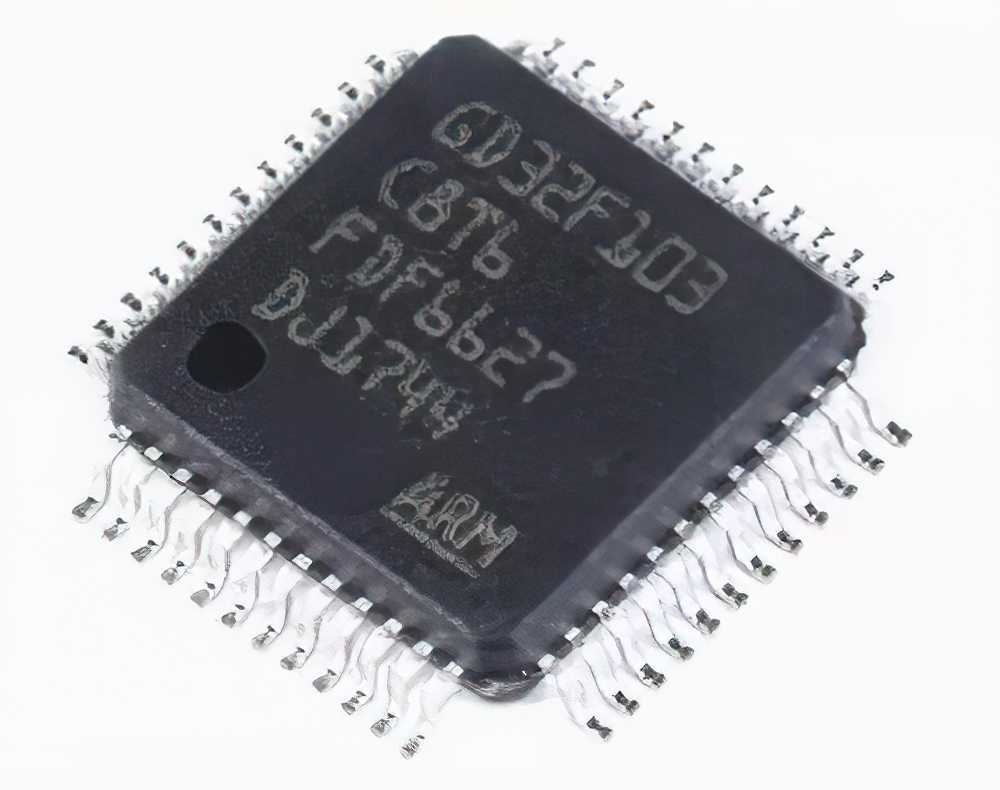

The GD32F103C8T6 microcontroller, a high-performance ARM Cortex-M3 based chip, is widely used in Embedded systems for a variety of applications such as automation, robotics, IoT, and more. However, despite its popularity and solid performance, developers often encounter certain challenges while working with this microcontroller. Whether you're a novice or an experienced embedded system developer, troubleshooting is a critical skill that ensures your project works as expected.
In this article, we will explore some of the most common issues faced by users of the GD32F103C8T6 and provide practical solutions to resolve them. From Power supply issues to programming and peripheral malfunctions, this guide will equip you with the tools and techniques you need to effectively solve problems and move forward with your project.
1. Power Supply Issues
One of the most common issues faced by developers is instability or improper power supply. The GD32F103C8T6 microcontroller operates at a voltage range of 2.0V to 3.6V, so ensuring a stable power source is critical for the proper operation of the device. If you notice that the microcontroller isn’t powering on or behaves unpredictably, follow these troubleshooting steps:
Possible Causes:
Inadequate or fluctuating power supply.
Power supply noise or poor filtering.
Incorrect voltage regulator or power source.
Solutions:
Check your power supply: Make sure your power source delivers a stable voltage within the specified range. Use a multimeter to verify the voltage.
Use a high-quality voltage regulator: If you're using a step-down regulator (like a buck converter), ensure it has adequate current ratings and is properly configured for the 3.3V or 3.3V tolerant input.
Filter out noise: Use decoupling capacitor s (typically 100nF ceramic capacitors) near the power supply pins of the microcontroller to filter out any noise.
2. Inconsistent or Failed Programming
If you're unable to program the GD32F103C8T6 or face inconsistent results when loading firmware onto it, this can cause significant delays in development.
Possible Causes:
Incorrect connections during the programming process.
Issues with the bootloader or firmware corruption.
Incompatible or faulty programming hardware.
Solutions:
Verify connections: Ensure the connections between the programmer (e.g., ST-Link or J-Link) and the GD32F103C8T6 are secure. Double-check the wiring, paying special attention to the SWD (Serial Wire Debug) or JTAG pins for Communication .
Use a reliable programmer: Invest in a reliable debugging/programming tool like an ST-Link V2 or J-Link. These devices offer consistent and stable connections for both programming and debugging.
Check the bootloader: Ensure that the bootloader on the GD32F103C8T6 is correctly configured to enter programming mode. This might involve shorting specific pins or using specific reset procedures to enable the microcontroller to accept new firmware.
3. Clock Configuration Problems
Clock configuration is another area where developers often run into trouble. The GD32F103C8T6 features an internal clock source (HSI), as well as external crystals and oscillators. Incorrect clock configuration can lead to timing problems, including erratic behavior, system instability, or failure to communicate with peripherals.
Possible Causes:
Mismatch in clock settings or failure to configure the clock properly.
Misconfigured external crystal oscillator or external clock source.
Solutions:
Ensure proper configuration of the clock tree: Use tools like STM32CubeMX (which also supports GD32 series) to configure your clock tree. It allows you to visualize the clock settings and avoid misconfigurations.
Use the correct external crystal or oscillator: If you're using an external clock, double-check the specifications for the required frequency and ensure it matches what is set in your microcontroller’s configuration.
Revisit the startup code: Make sure your startup code configures the system clock correctly. This may include enabling the PLL (Phase-Locked Loop), adjusting the prescalers, and selecting the correct clock source.
4. Peripheral Communication Failures (USART, SPI, I2C)
Communication problems with peripherals such as UART, SPI, or I2C are also frequent issues in embedded systems development. These communication protocols are essential for the GD32F103C8T6 to interact with external devices, but if they're misconfigured or malfunctioning, your system may fail to transmit or receive data correctly.
Possible Causes:
Incorrect baud rates, clock settings, or timing mismatches.
Physical issues with the wiring or connectors.
Unstable or noisy signals on the communication lines.
Solutions:
Verify baud rates and timing: Ensure that the baud rate, data bits, parity, and stop bits are correctly configured for UART communication. For SPI or I2C, verify the clock speed, polarity, phase, and addressing modes.
Check wiring and connections: Ensure that all necessary pins are correctly connected and that there are no shorts or loose connections, especially in high-speed communication interface s like SPI.
Use proper pull-up resistors: For I2C communication, ensure the use of appropriate pull-up resistors (typically between 4.7kΩ and 10kΩ) on the SDA and SCL lines.
Scope the signal: If the problem persists, use an oscilloscope or logic analyzer to verify the integrity of the communication signals. This can help identify noise or glitches that may affect communication reliability.
5. Firmware Issues and Debugging
Another challenge is dealing with firmware bugs or logic errors, which may lead to unpredictable behavior, crashes, or failure to boot. The GD32F103C8T6 is no different from other ARM Cortex-M3 based microcontrollers in this regard, and debugging firmware issues can sometimes be time-consuming.
Possible Causes:
Logic errors in code, such as improper use of peripherals or incorrect interrupts.
Stack overflows or memory corruption.
Undefined behavior due to improper initialization.
Solutions:
Use a debugger: Utilize debugging tools such as GDB or integrated debugging options in IDEs like Keil, IAR Embedded Workbench, or STM32CubeIDE. Setting breakpoints, stepping through code, and inspecting variables can help identify where the program behaves incorrectly.
Check for memory issues: Ensure that you don’t exceed available memory. Tools like static code analysis or memory tracking features in IDEs can help prevent stack overflows or memory corruption.
Review the initialization code: Proper initialization of hardware peripherals (such as GPIO, clocks, and interrupts) is essential to prevent unexpected behavior. Make sure all system resources are configured before use.
Advanced Troubleshooting Techniques for GD32F103C8T6
In the second part of this article, we will dive deeper into advanced troubleshooting techniques. These methods involve more intricate debugging strategies, advanced configuration tips, and dealing with specific hardware-related problems like signal integrity and power supply optimization.
Stay tuned for Part 2, where we cover additional methods for tackling more complex issues with the GD32F103C8T6!
