The STM32F103RCT6 is a popular microcontroller used in a wide range of Embedded systems, providing high-performance processing capabilities for a variety of applications. However, like any embedded system, it can encounter issues that may disrupt functionality. This article explores common troubleshooting scenarios and offers practical solutions to help engineers and developers navigate potential challenges.
STM32F103 RCT6, troubleshooting, embedded systems, microcontroller, STM32, firmware, debugging, hardware, common issues, solutions
Identifying and Troubleshooting Common Issues with the STM32F103RCT6

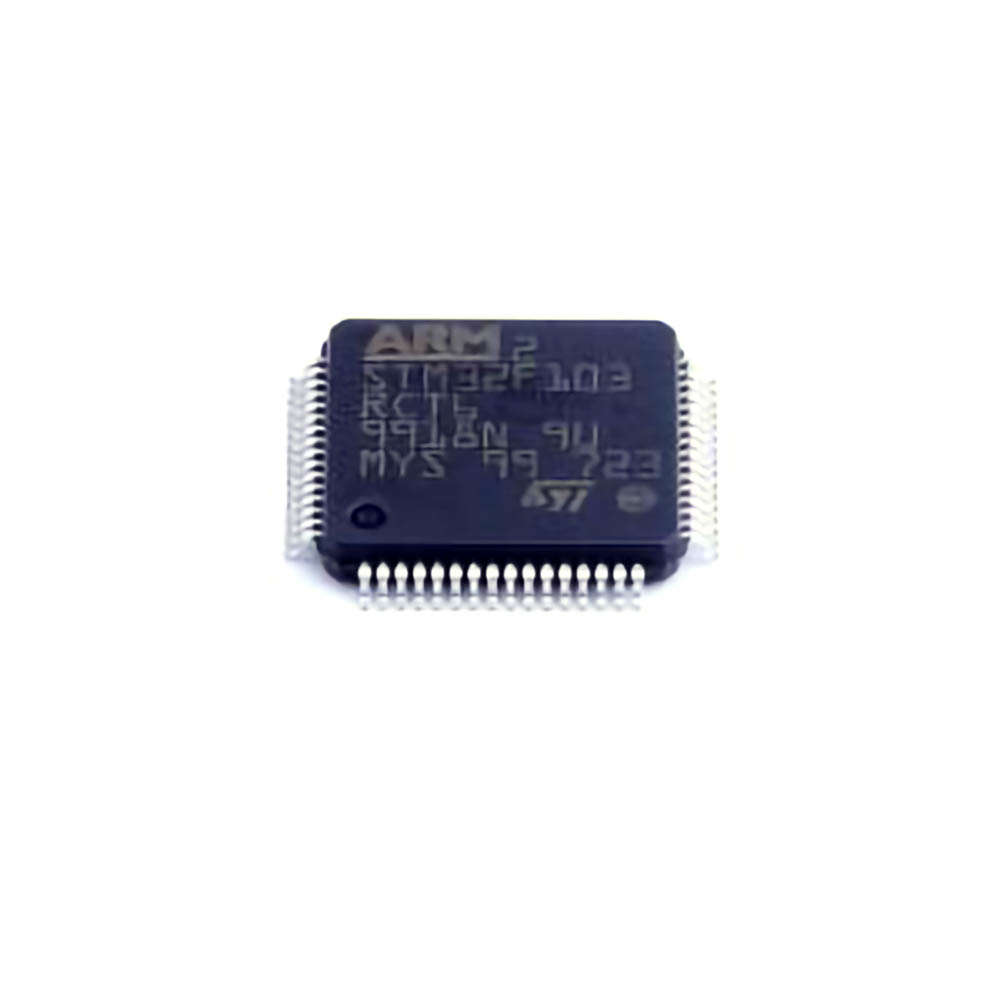

The STM32F103RCT6 is a robust microcontroller from the STM32 family, renowned for its Power ful ARM Cortex-M3 core, versatile peripherals, and energy-efficient design. However, as with any embedded system, it is prone to various issues ranging from simple configuration errors to hardware failures. In this section, we will explore common problems that developers encounter while working with the STM32F103RCT6 and provide effective solutions to resolve them.
1. Power Supply Issues
One of the most common issues encountered when working with microcontrollers is inadequate or unstable power supply. The STM32F103RCT6 is designed to operate with a voltage supply ranging from 2.0V to 3.6V. Below are some typical power supply-related problems and their solutions:
Problem 1.1: Low or unstable voltage supply
Cause: A low or fluctuating voltage supply can cause the microcontroller to reset or behave unpredictably. This can be due to an insufficient power source or noise in the power lines.
Solution: Ensure that the power supply meets the required voltage specifications for the STM32F103RCT6. Use low-dropout regulators (LDO) or switching regulators to provide a stable voltage. Additionally, use decoupling capacitor s near the power pins of the microcontroller to reduce voltage noise.
Problem 1.2: Power-on Reset Failure
Cause: If the power supply does not have a proper rise time, the microcontroller may fail to reset correctly.
Solution: Use an external power-on reset circuit or check the internal reset configuration. Make sure that the reset circuitry is functioning properly and the reset pin is not floating.
2. Incorrect Clock Configuration
The STM32F103RCT6 features multiple clock sources, including an internal RC oscillator and external crystal oscillators. Clock configuration issues can lead to slow system performance, Communication failures, or system instability.
Problem 2.1: Clock not running or inaccurate clock frequency
Cause: The microcontroller might not be properly configured to use the intended clock source. This could be caused by an incorrect configuration in the startup code or incorrect fuse settings for external crystals.
Solution: Verify the clock configuration in the STM32CubeMX tool and ensure that the correct source (e.g., HSE, PLL) is selected. Double-check the startup code for correct clock initialization and verify the crystal or external oscillator is connected correctly.
Problem 2.2: Clock source switch failure
Cause: Incorrect switching between internal and external clock sources can cause the system to run at an undesired frequency or to stop functioning.
Solution: When switching between clock sources, ensure that all the clock-related registers are correctly configured, and the switch happens in a defined sequence. Pay special attention to the clock switching function in the STM32's reference manual.
3. Firmware Bugs and Debugging
Issues related to the firmware can also arise during development. These problems often manifest as unexpected behavior or incorrect outputs from the microcontroller, making debugging essential.
Problem 3.1: Firmware hangs or unexpected resets
Cause: A common cause of firmware crashes is infinite loops or watchdog timer misconfigurations. Other causes include Memory corruption or peripheral misconfigurations.
Solution: Use the Integrated Development Environment (IDE) like STM32CubeIDE or KEIL to enable debugging features like breakpoints and watchpoints. Inspect the microcontroller's internal registers and peripheral status to determine the root cause of the issue. Additionally, ensure the watchdog timer is properly configured and periodically reset if necessary.
Problem 3.2: Peripheral initialization issues
Cause: Incorrect initialization of peripherals like UART, SPI, ADC, or GPIO pins can lead to malfunctions, communication failures, or incorrect sensor readings.
Solution: Review the peripheral initialization code and check the STM32CubeMX configuration. Ensure that the GPIO pins are configured as per the requirements of each peripheral and that no pin conflicts are present. Utilize the peripheral initialization function templates from STM32CubeMX to ensure proper configuration.
4. Communication Failures
Communication issues often arise when using protocols like SPI, I2C, or UART. These protocols are crucial for interfacing with external devices, and failures can lead to significant project delays.
Problem 4.1: UART communication problems
Cause: Issues with UART communication can stem from incorrect baud rate settings, improper wiring, or misconfigured interrupt handlers.
Solution: Verify that the baud rate, data bits, and parity settings are correct. Check the wiring and ensure that TX and RX lines are properly connected. Additionally, use a serial analyzer tool to monitor the data exchange and identify any discrepancies.
Problem 4.2: I2C or SPI communication issues
Cause: For I2C or SPI, communication failures can be caused by issues such as incorrect clock speed, mismatched addressing, or conflicts in shared bus lines.
Solution: Use logic analyzers or oscilloscopes to inspect the I2C or SPI lines and verify the signal integrity. Ensure that the correct addressing and Timing parameters are configured. In multi-master configurations, verify that there are no bus contention issues.
5. Memory and Stack Overflow Issues
Embedded systems frequently encounter memory-related issues, particularly with stack overflows or incorrect heap allocation. These issues can cause the microcontroller to behave erratically or reset unexpectedly.
Problem 5.1: Stack overflow
Cause: If the stack size is too small for the program's requirements, a stack overflow may occur, resulting in unpredictable behavior or system crashes.
Solution: Increase the stack size in the linker script or within the STM32CubeMX tool. Additionally, use tools like the STM32CubeIDE's memory view to monitor stack usage in real-time.
Problem 5.2: Flash or SRAM corruption
Cause: Improper handling of memory (such as writing to protected sections of memory) can lead to corruption.
Solution: Ensure that flash and SRAM regions are properly configured for read and write operations. Always ensure proper timing when accessing flash memory, particularly in interrupt-driven systems.
Advanced Troubleshooting Techniques for STM32F103RCT6
While the solutions presented in Part 1 address common issues, advanced troubleshooting techniques can help you diagnose and resolve more complex problems that may arise during your development process. This section will explore some of these advanced techniques.
1. Using Debugging Tools Effectively
The STM32F103RCT6 supports a variety of debugging interface s, such as SWD (Serial Wire Debug) and JTAG. These tools allow you to inspect the internal state of the microcontroller and can be indispensable when debugging complex issues.
Problem 1.1: Debugger not connecting or no response from the MCU
Cause: This issue may occur if the microcontroller is running at too high a speed, the reset circuitry is not working correctly, or if there are issues with the debugger itself.
Solution: Check the SWD/JTAG connection and make sure the correct pins are used. If using SWD, ensure that the SWD clock speed is compatible with the microcontroller's configuration. Additionally, verify that the reset circuitry is functional and that no faults are present in the debugger hardware.
Problem 1.2: Insufficient debug information
Cause: This can happen if the debug symbols are stripped or if the debugger is not configured to capture detailed information.
Solution: Ensure that debugging symbols are enabled during the compilation process. Configure the IDE to capture verbose debug output and make use of hardware breakpoints to monitor program flow more effectively.
2. Using Hardware Simulations
Sometimes, it is beneficial to simulate hardware peripherals to identify potential issues before deploying the system in a live environment.
Problem 2.1: Peripherals not responding as expected
Cause: The issue may be in the configuration of peripherals or in the software handling them.
Solution: Use STM32CubeMX to simulate the peripheral configurations. Additionally, use software simulators to check the expected behavior of peripherals in isolation.
Problem 2.2: Timing-related issues
Cause: Timing-related issues, such as incorrect delays or missed clock cycles, can cause erratic behavior.
Solution: Use oscilloscopes or logic analyzers to monitor the clock and signal integrity during operation. Simulate various timing scenarios to ensure synchronization between the software and hardware.
3. Firmware Update and Bootloader Troubleshooting
Issues related to firmware updates or bootloader configuration can prevent the microcontroller from starting up correctly or receiving new firmware versions.
Problem 3.1: Bootloader not loading new firmware
Cause: This may happen if the bootloader is not correctly configured or if the firmware image is corrupted.
Solution: Verify that the bootloader's entry point is correctly configured, and ensure that the correct memory regions are being used. Check the integrity of the firmware image by performing checksums or using bootloader diagnostic features.
4. Managing Temperature and Environmental Factors
Finally, environmental factors such as temperature fluctuations can impact the performance of the STM32F103RCT6.
Problem 4.1: Overheating or temperature-related issues
Cause: Overheating can cause erratic behavior or damage to the microcontroller.
Solution: Ensure proper thermal management, such as using heat sinks or ensuring proper ventilation in enclosures. Use temperature sensors to monitor the operating temperature and take corrective action when necessary.
By using these troubleshooting techniques and applying solutions to common problems, engineers can significantly reduce the time spent debugging and improve the overall reliability of their STM32F103RCT6-based systems. While the microcontroller is highly capable, understanding the root causes of issues and applying these advanced solutions will lead to smoother development processes and more robust embedded systems.
